**Adapter with unit.
*Data provided by AHRI
MODEL NO. Unit MAC16018A MAC16024A MAC16030A MAC16036A MAC16042A MAC16048A MAC16060A
Power Supply Ph-V-Hz 1 - 208/230 - 60 1 - 208/230 - 60 1 - 208/230 - 60 1 - 208/230 - 60 1 - 208/230 - 60 1 - 208/230 - 60 1 - 208/230 - 60
______________________________________________________________________________________________________________________________________________
Cooling Capacity Btu/h 18000 23000-24000 26000-28000 33000-34000 40000-41000 46500-47500 57000-58000
___________________________________________________________________________________________________________________________________
SEER Btu/w*h 14-16 14-16 14-16 14-16 14-16 14-16 14-15
______________________________________________________________________________________________________________________________________________
Heating Capacity Btu/h n/a n/a n/a n/a n/a n/a n/a
___________________________________________________________________________________________________________________________________
HSPF Btu/w*h n/a n/a n/a n/a n/a n/a n/a
______________________________________________________________________________________________________________________________________________
Elect. Min. Circuit A 11.9 14.6 17.0 18 23.4 24.2 29.6
___________________________________________________________________________________________________________________________________
Data Max. Amps A 20 25 25 30 40 40 50
______________________________________________________________________________________________________________________________________________
Compressor Rated Load A 9 10.9 12.8 13.6 17.9 18 22.2
___________________________________________________________________________________________________________________________________
Locked Rotor A 48 59 68 79 112 117 128
______________________________________________________________________________________________________________________________________________
Outdoor Fan Rated Load A 0.7 1.0 1.0 1.0 1.0 1.7 1.8
___________________________________________________________________________________________________________________________________
Motor Rated HP HP 1/10 1/6 1/6 1/6 1/6 1/4 1/3
___________________________________________________________________________________________________________________________________
Nom. RPM RPM 1075 825 825 825 825 825 825
______________________________________________________________________________________________________________________________________________
Refrigerant Charge lb-oz 73 73 88 113 140 156 192
______________________________________________________________________________________________________________________________________________
Outdoor Airflow CFM 600-650 730-850 945-1045 1110-1275 1340-1460 1500-1600 1780-1800
______________________________________________________________________________________________________________________________________________
Outdoor Unit Dimension inch 24.25 x 29 x 24.25 28.25 x 37 x 28.25 28.25 x 37 x 28.25 28.25 x 37 x 28.25 28.25 x 37 x 28.25 28.25 x 37 x 28.25 32.25 x 43 x 32.25
(WxHxD)
___________________________________________________________________________________________________________________________________
Packing inch 27 x 29.5 x 26.5 31 x 29.5 x 30.5 31 x 37.5 x 30.5 31 x 29.5 x 30.5 31 x 37.5 x 30.5 31 x 37.5 x 30.5 35 x 43.5 x 34.5
(WxHxD)
___________________________________________________________________________________________________________________________________
Weight lbs 134 152 169 181 211 218 226
______________________________________________________________________________________________________________________________________________
Connection Liq./Suct. inch 3/8"-3/4" 3/8"-3/4" 3/8"-3/4" 3/8"-7/8" 3/8"-7/8" 3/8"-7/8" 3/8"-7/8"**
______________________________________________________________________________________________________________________________________________
Line Size Liq./Suct. inch 3/8"-3/4" 3/8"-3/4" 3/8"-3/4" 3/8"-7/8" 3/8"-7/8" 3/8"-7/8" 3/8"-1 1/8"
______________________________________________________________________________________________________________________________________________

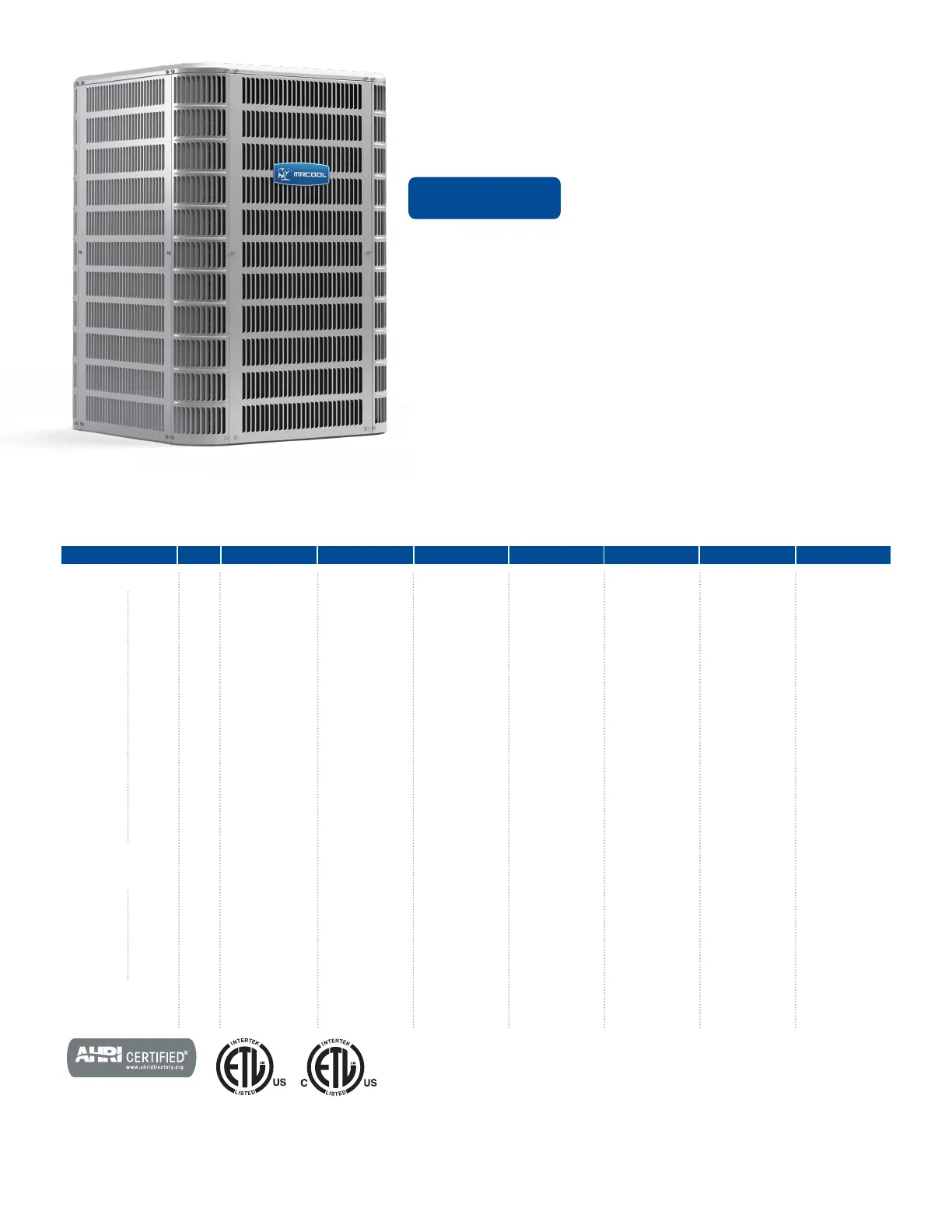

SPECIFICATION
This 1.5-5 ton, 208-230 volt, R-410A refrigerant, outdoor
condenser has a seasonal energy efciency rating of up
to 16 SEER when paired with other MRCOOL
®
products.
It provides maximum comfort cooling and high energy
efciency. This unit provides cooling only performance (this
is NOT a heat pump).
• Available in 1.5, 2, 2.5, 3, 3.5, 4, and 5 ton capacities.
• 10-Year Parts Limited Warranty.‡
UP TO 16 SEER CONDENSER
A/C SPLIT SYSTEM
‡
MAC16*A
‡Warranty provides for a total of 10 years of limited warranty coverage (Standard 5-year
limited parts warranty plus an additional 5-year limited extended parts warranty; 15-
year for heat exchanger where specified). Warranty must be registered online within 60
days of installation to qualify for extended coverage. Unregistered equipment defaults
to 5-year coverage.
