MrCool Signature Series User Manual

507276-05CPage 10 of 57 mrcool.com

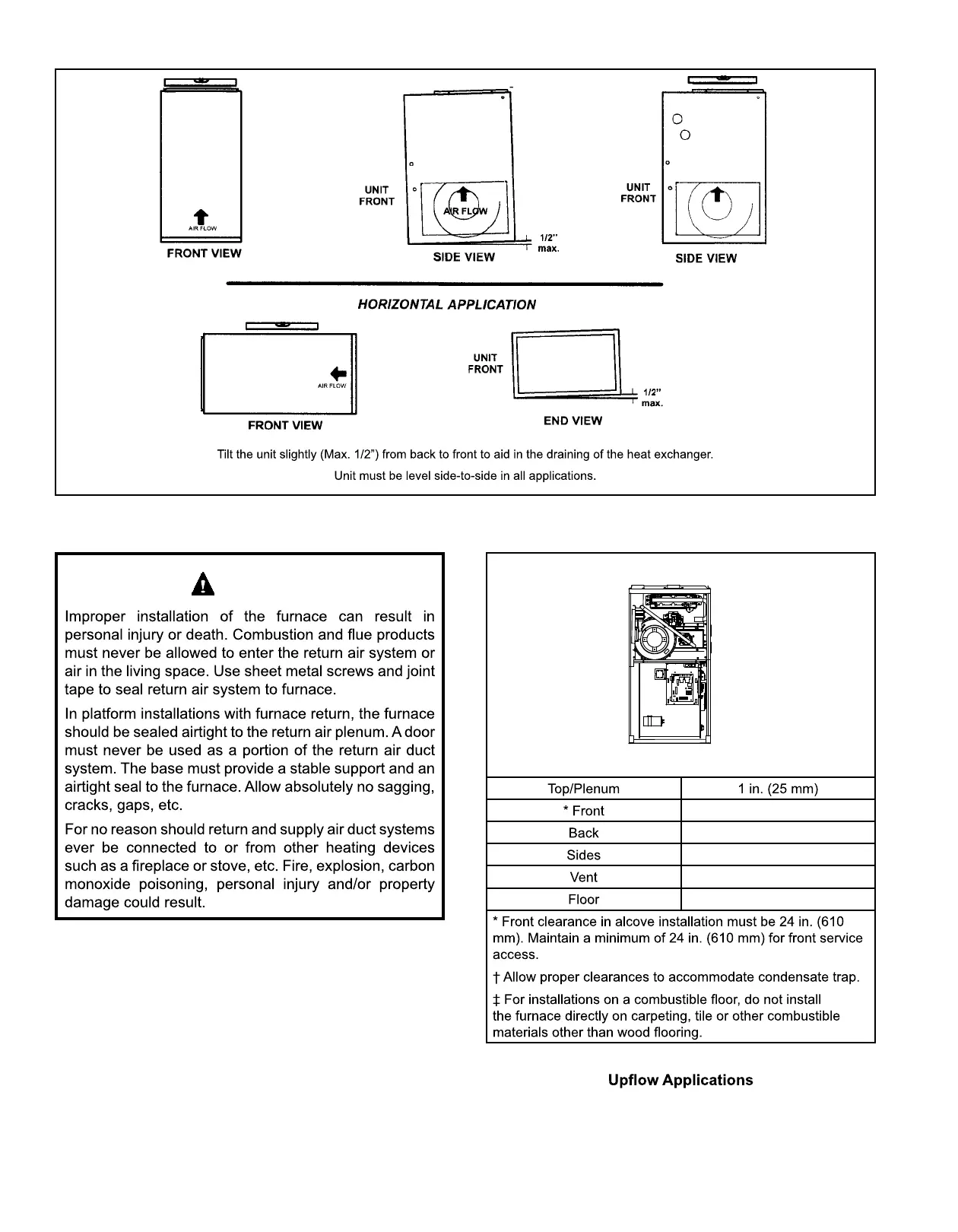

Figure 12. Setting Equipment
WARNING
Figure 13. Installation Clearances
Top
Bottom (Floor)
Left Side
Right Side
Top/Plenum 1 in. (25 mm)
*Front 0
Back 0
Sides 0†
Vent 0
Floor 0‡
*Front clearance in alcove installation must be 24 in. (610 mm).
Maintain a minimum of 24 in. (610 mm) for front service access.
†Allow proper clearances to accommodate condensate trap.
‡For installations on a combustible
oor, do not install the furnace directly
on carpeting, tile or other combustible materials other than wood
ooring.
0
0
0†
0
0‡
