MrCool Signature Series - Page 37

507276-05CPage 36 of 57 mrcool.com

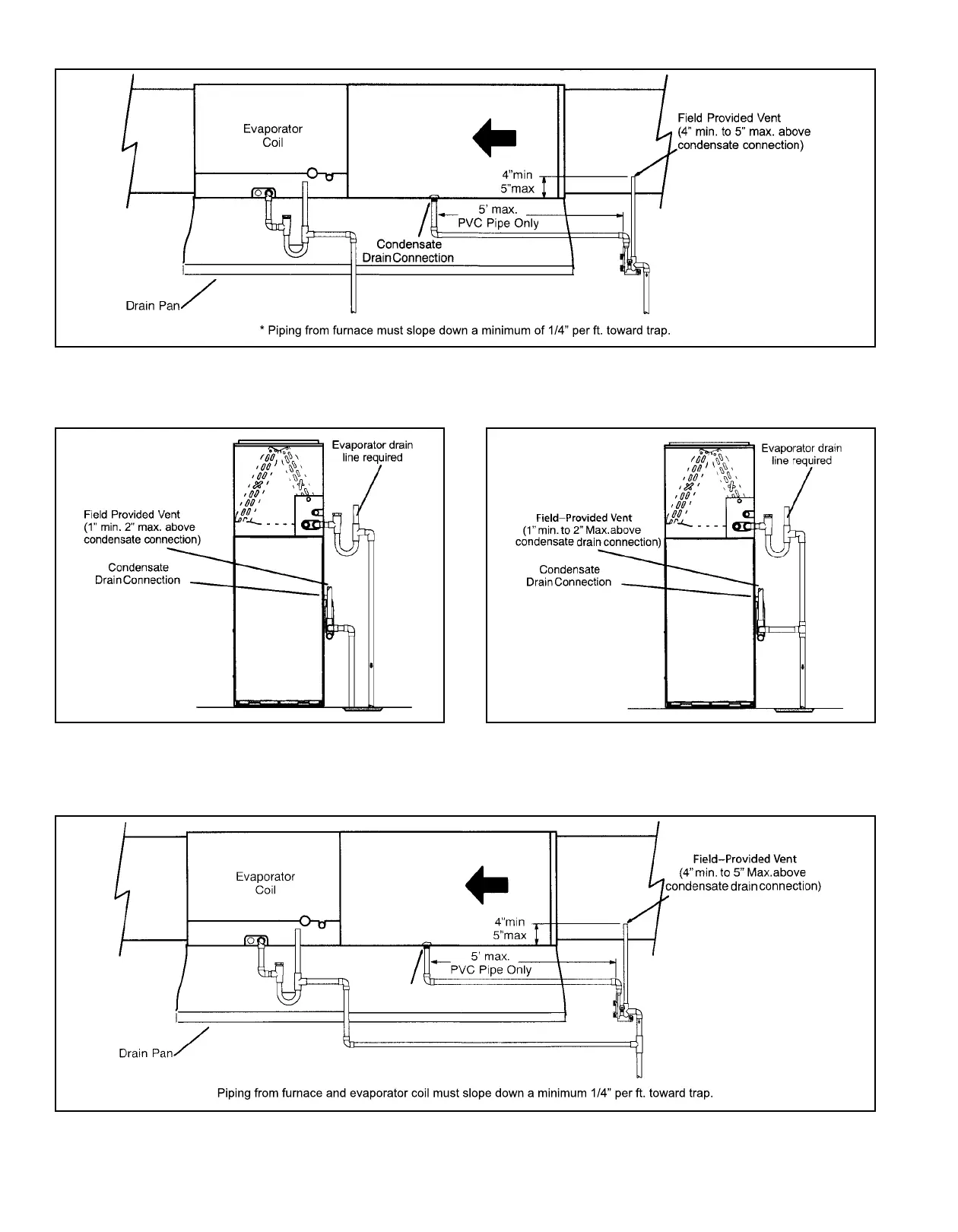

Figure 55. Condensate Trap Locations
Figure 56. Unit with Cooling Coil Using Separate
Drain
Figure 57. Evaporator Coil Using a Common Drain
Figure 58. Evaporator Coil Using a Common Drain
