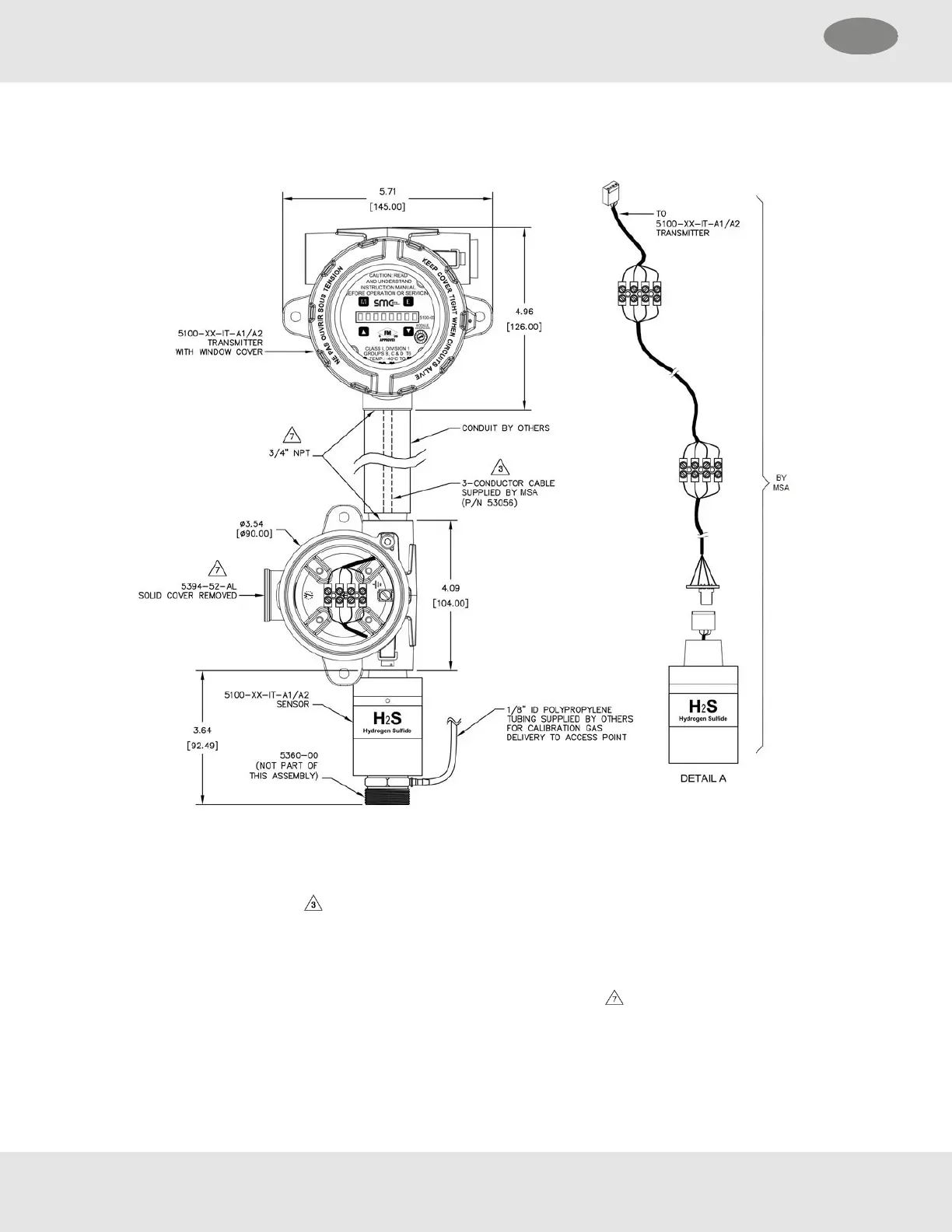

11 Remote Sensor Drawing
NOTE:Drawing using aluminum enclosure.
Unless otherwise specified, NOTE the following:
l
Provide access for sensor replacement during installation.
l
For field upgrade, relocate 5100-XX-IT-A1/A2 Sensor to 5394-52 as shown in Detail A (in image above).
l
Use belden cable #9925 (see in image above).
l
Terminal blocks float in each enclosure.
l
The remote sensor assembly is meant to be supported by rigid conduit.
l
Calibrate post installation.
l
For conduit with M20 thread, install adapter 39218 (2X) where shown (see in image above).
NOTE:The distance between the sensor and transmitter is 15 feet for models 5100-04/05/10-IT. However, the
distance is 10 feet for Model 5100-03-IT.
48 SMC 5100-XX-IT Toxic Gas Detector Module
11 Remote Sensor Drawing US
