Installation of Two-Wire, 4-20 mA Output with HART Protocol

1. Connect 12-30 VDC power lead to J8-1 (see FIGURE 1-15).

NOTE: The HART signal is not available below 12 VDC

on the two-wire pc board.

2. Connect J8-2 to the 4-20 mA input on the remote system.

3. Terminate the 4-20 mA line with 230-500 Ohms of resistance.

4. Connect sensor module to main pc board connector J-1.

5. Assemble lid on the enclosure.

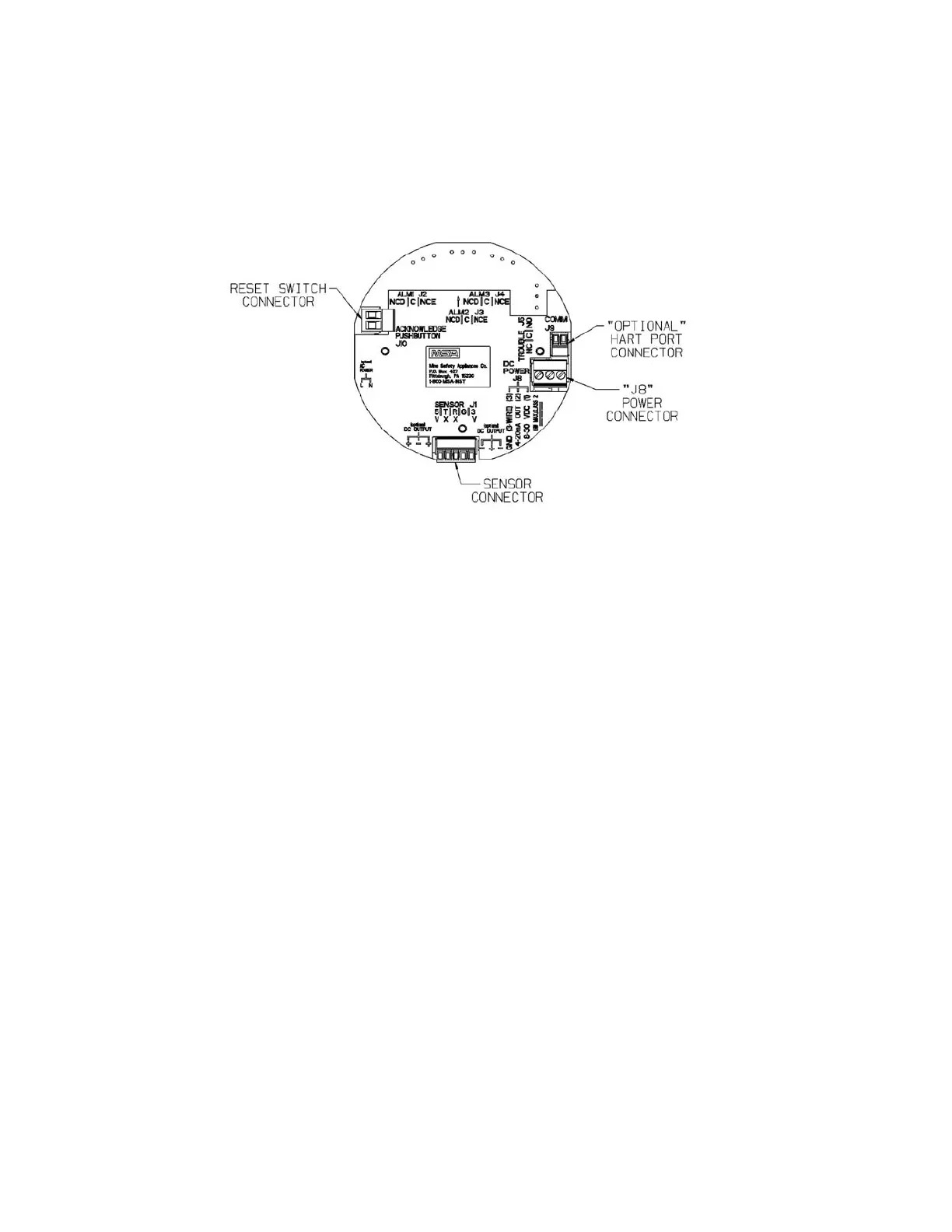

Figure 1-15. Two-Wire Printed Circuit Board

(with HART Protocol)

1-17
