9 Appendix: Electrical Installation

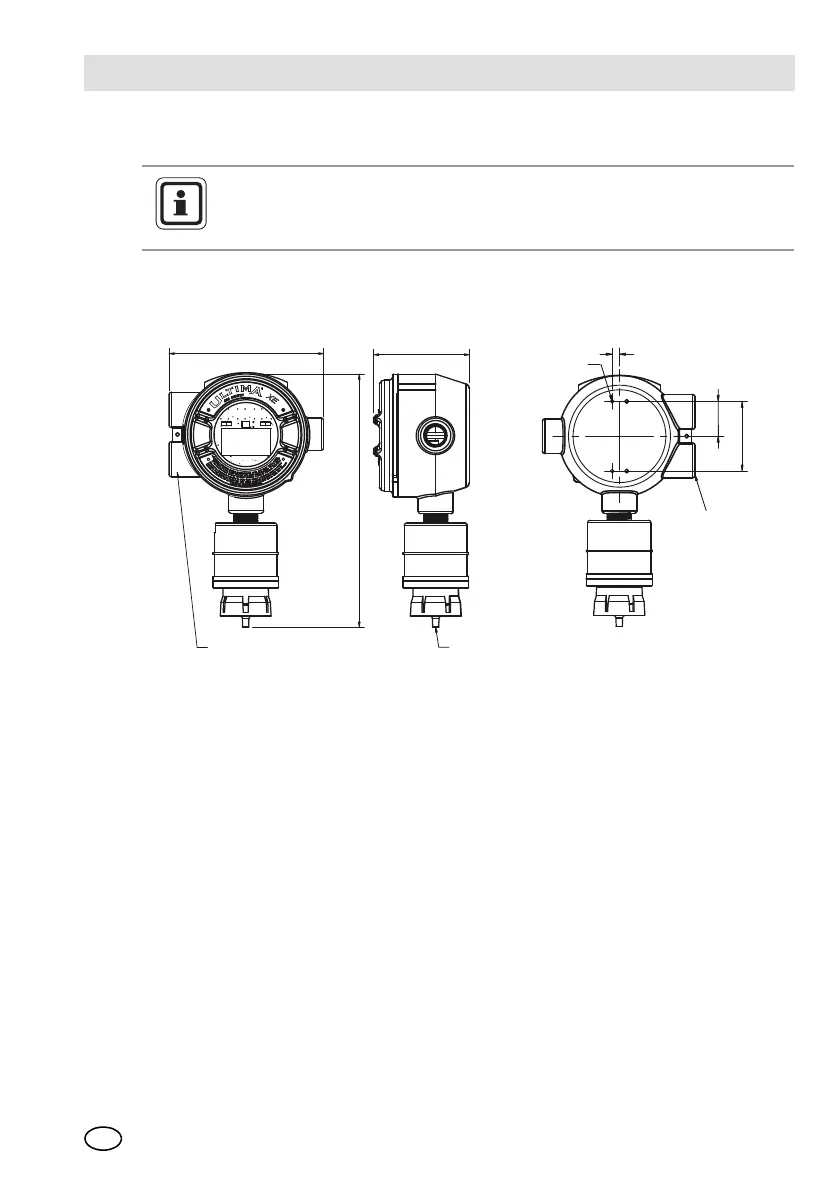

9.1 Installation Outline Drawing [CE] - ULTIMA XE
Notes:
- Instrument weight: 4.72 kg
- Instrument housing: 316 St.St.
- Dimensions shown in millimetres.
- Install ULTIMA XE with sensor inlet pointing down.
- Certified cable glands or blanking plugs shall be installed at all cable entries
during installation.
- All cable shields to be terminated to ground earth at one end only.
- NPT threads shall conform to the requirements of ANSI/ASME B1.20.1, and
shall be made-up wrench tight.
The cabling and electrical installation must be carried out based on the
instrument types used.
Electrical installation details are given in appropriate drawings.
160.3
99.3
7.6
10-32 mounting
screw holes
(2 places)
Sensor Inlet
262.2
M4 x 0.7 set screws (4 places)
for M25 x 1.5 cable gland thread only
36.6
¾″ NPT
(4 places)
73.2
