Appendix: Electrical Installation
ULTIMA X
®
Series
74
GB

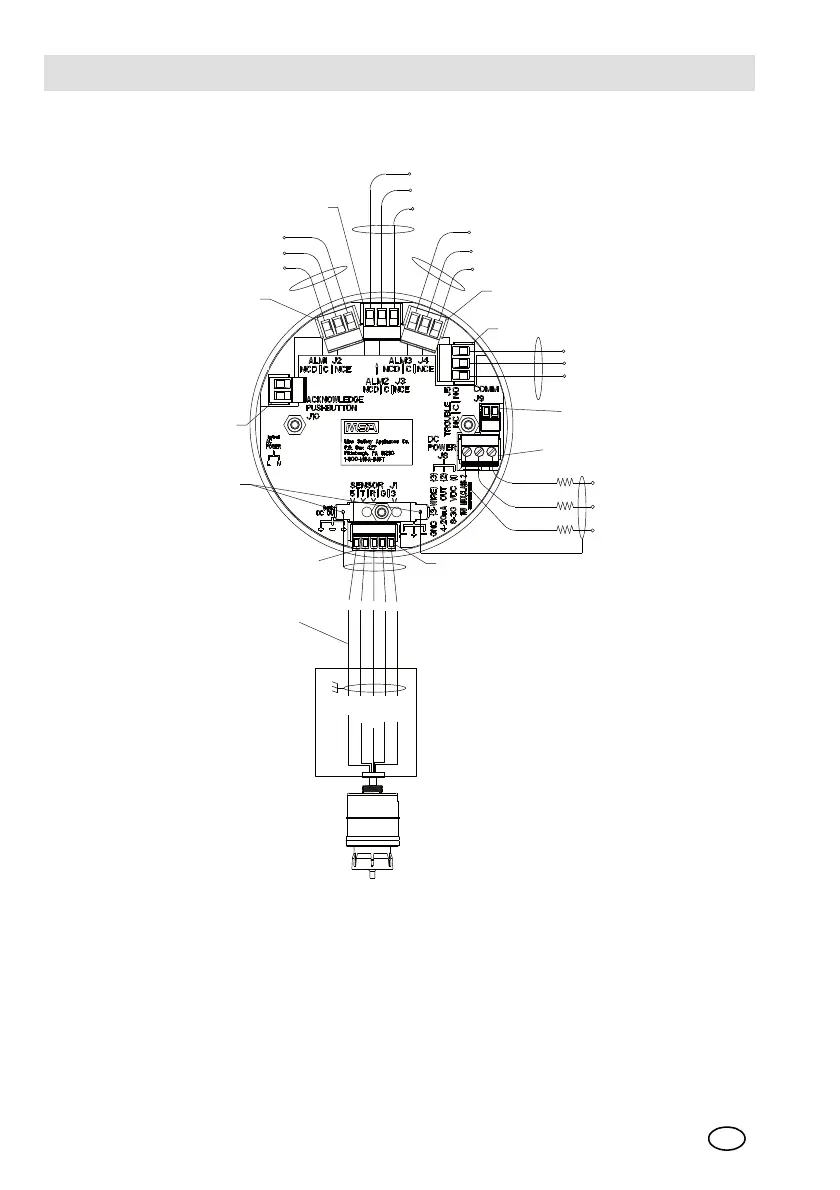

9.8 Installation Outline Drawing [CE] - ULTIMA XE Wiring Connections
Notes:
- Shield to be connected to earth ground at one end only.
- Customer installed normally open push button switch. SWITCH MUST BE
APPROVED HAZARDOUS AREA USE.
- Certified cable glands or blanking plugs shall be installed at all cable entries du-
ring installation.
PUSH BUTTON
SENSOR CONNECTIONS
POWER CONNECTIONS
TROUBLE RELAY CONNECTIONS
ALARM 3 CONNECTIONS
ALARM 1 CONNECTIONS
ALARM 2 CONNECTIONS
SHIELD
CONNECTIONS
NORMALLY CLOSED
DE-ENERGIZED
COMMON
NORMALLY CLOSED ENERGIZED
CABLE
(-) (GND) (GROUND)
CABLE
(S) (SIG) (SIGNAL)
CABLE
(+) (PWR) (POWER)
NORMALLY OPEN ENERGIZED
COMMON
NORMALLY CLOSED ENERGIZED
NORMALLY CLOSED DE-ENERGIZED
COMMON
NORMALLY CLOSED ENERGIZED
NORMALLY CLOSED ENERGIZED
COMMON
NORMALLY CLOSED DE-ENERGIZED
SENSOR
CONNECTIONS
APPROVED JUNCTION BOX WITH TERMINAL STRIP
MAXIMUM LENGTH 15 METRES
HART PORT CONNECTIONS
BLACK
WHITE
YELLOW
GREEN
RED
5V
TX
RX
GND3V
