Reference Powerbase
The powerbase contains isolation technology. The powerbase
detects the input voltage and switches to 120 volt or 240 volt
operation. It is also available in a xed 100 volt conguration. The
Reference powerbase has over-voltage protection.
Two fuses are provided:
- 5A 250V SLO BLO - 5 mm x 20 mm miniature fuse (This is the main fuse).
- 100mA 250V SLO BLO - 5 mm x 20 mm miniature fuse
(This is for the standby supply only).

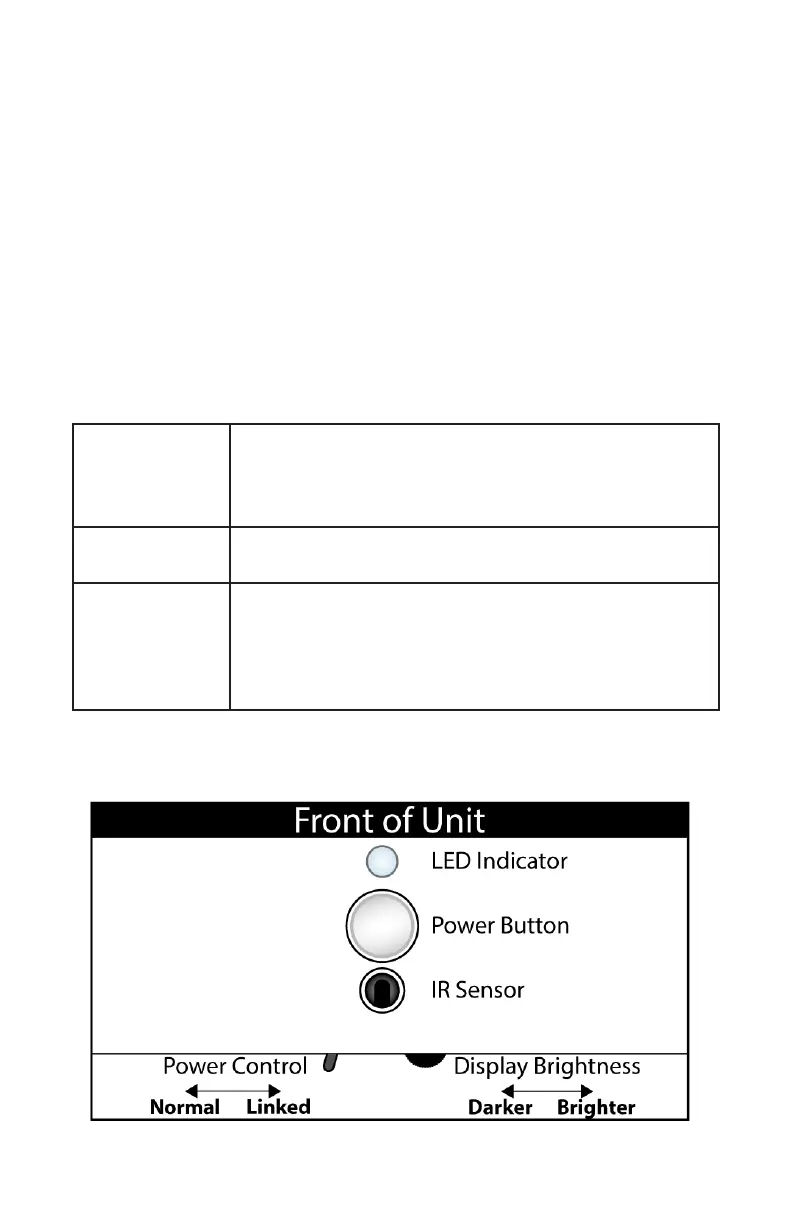

Reference Powerbase User Interface
There is one button on the front of the powerbase— as well as
two control features just under the front of the powerbase, on the
bottom.
LED
indications
White - Power On
Red - Power o
White/Red - Unit is in “Normal” mode but the 12v
trigger has turned it o.
Display
brightness
This is a rolling wheel to control the brightness for
the power indicator light
Power control Normal - This sets the powerbase as the 12 volt
trigger master.
Linked - This sets the powerbase as the 12 volt
trigger slave. The ‘master’ powerbase will control
this unit.
