Shielding Ground - Enhanced Operation (cont.)
With the jumpers disconnected, connect the supplied ground wire
from the AMPLIFIER GROUND lug of ONE powerbase to the chassis of
ONE of your mono-block ampliers or to your single stereo amplier.
Note this connection is dependent on the amplier so you will have
to look for the best place to attach the wire. Generally the easiest
place would be to loosen a screw on the Amplier Chassis and slip
the open Spade lug under the screw head and tighten the screw. The
only other place a true ground may be found is on the ground pin of
the power connector to the AMP but this will not be easy to connect
to.

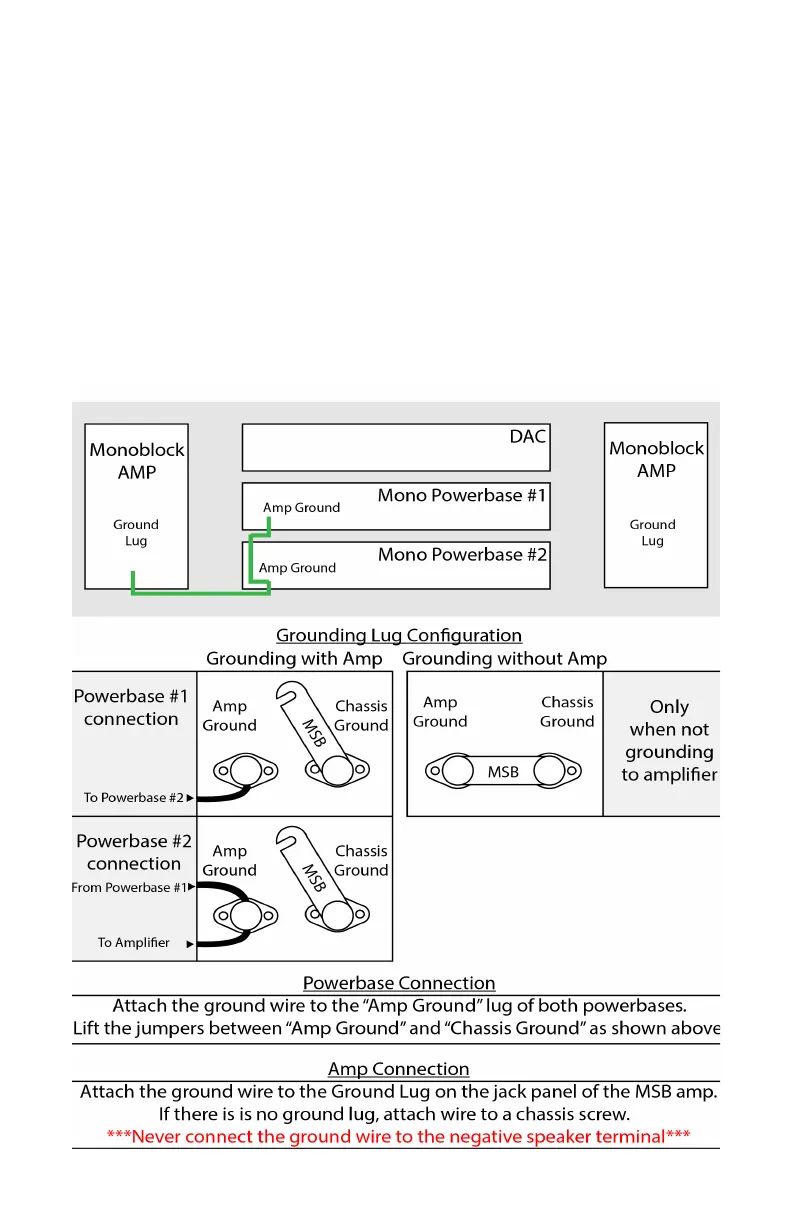

Enhanced Shielding Ground Operation - Diagram
