INSTALLATION INSTRUCTIONS

AUTOTRONIC CONTROLS CORPORATION • 1490 HENRY BRENNAN DR., EL PASO, TEXAS 79936 • (915) 857-5200 • FAX (915) 857-3344

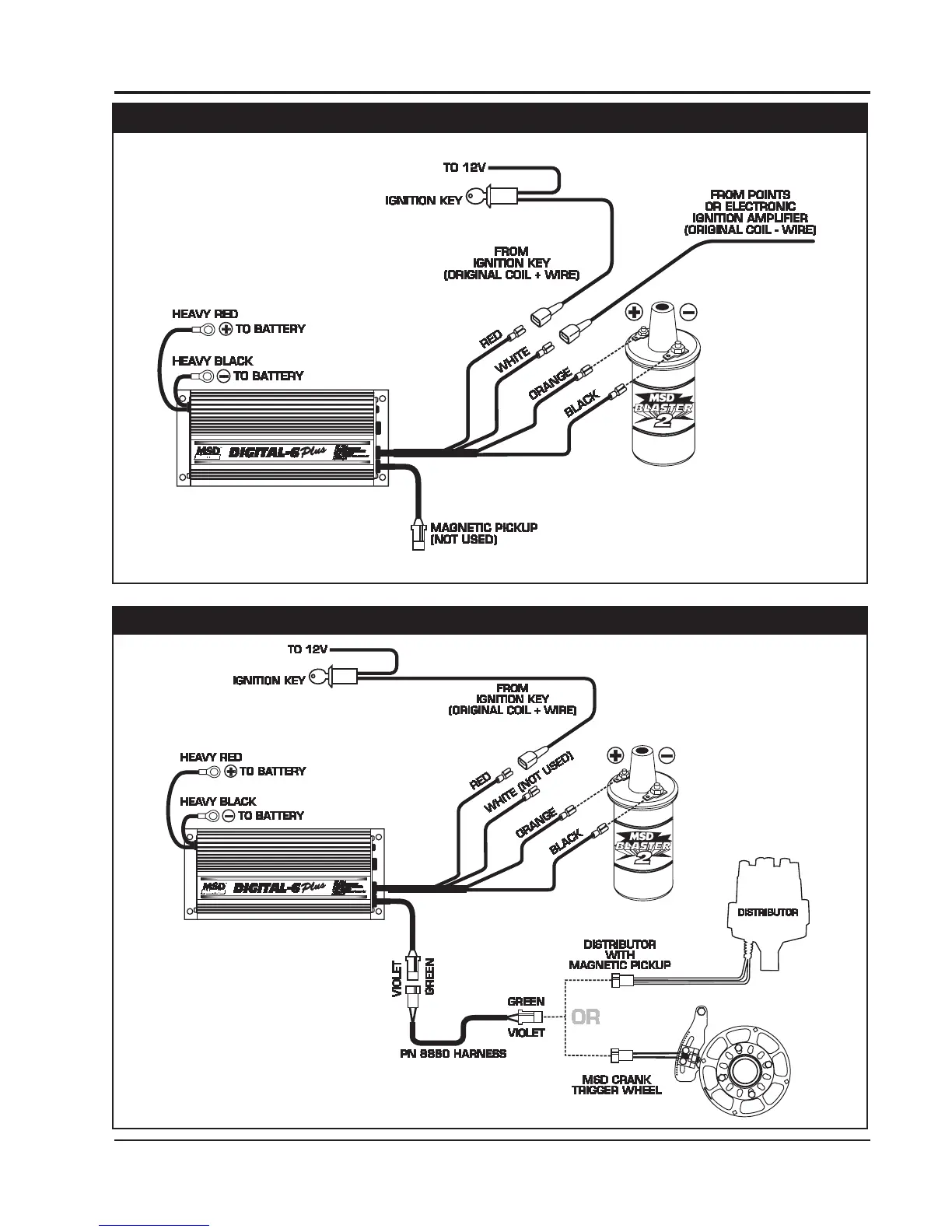

MSD SYSTEMS Installing to Points/Ampliﬁer Style Ignition.

NOTE: On dual point setups, it is recommended

to remove the trailing set of points.

MSD SYSTEMS Installing to an MSD Distributor/Crank Trigger.

NOTE: Ballast Resistor is not necessary.

NOTE: Remove the coil terminal wires. The

negative wire connects to MSD White. The

positive wire connects to MSD Red. The MSD

Orange connects to the coil positive terminal,

Black connects to the coil negative terminal.
