MSD 7AL-2 Plus - INSTALLATION: POINTS;AMPLIFIER IGNITION; WIRING DIAGRAM FOR POINTS;AMPLIFIER; INSTALLATION: MSD DISTRIBUTOR;CRANK TRIGGER; WIRING DIAGRAM FOR MSD DISTRIBUTOR;CRANK TRIGGER

INSTALLATION INSTRUCTIONS 9
MSD • WWW.MSDPERFORMANCE.COM • (915) 857-5200 • FAX (915) 857-3344

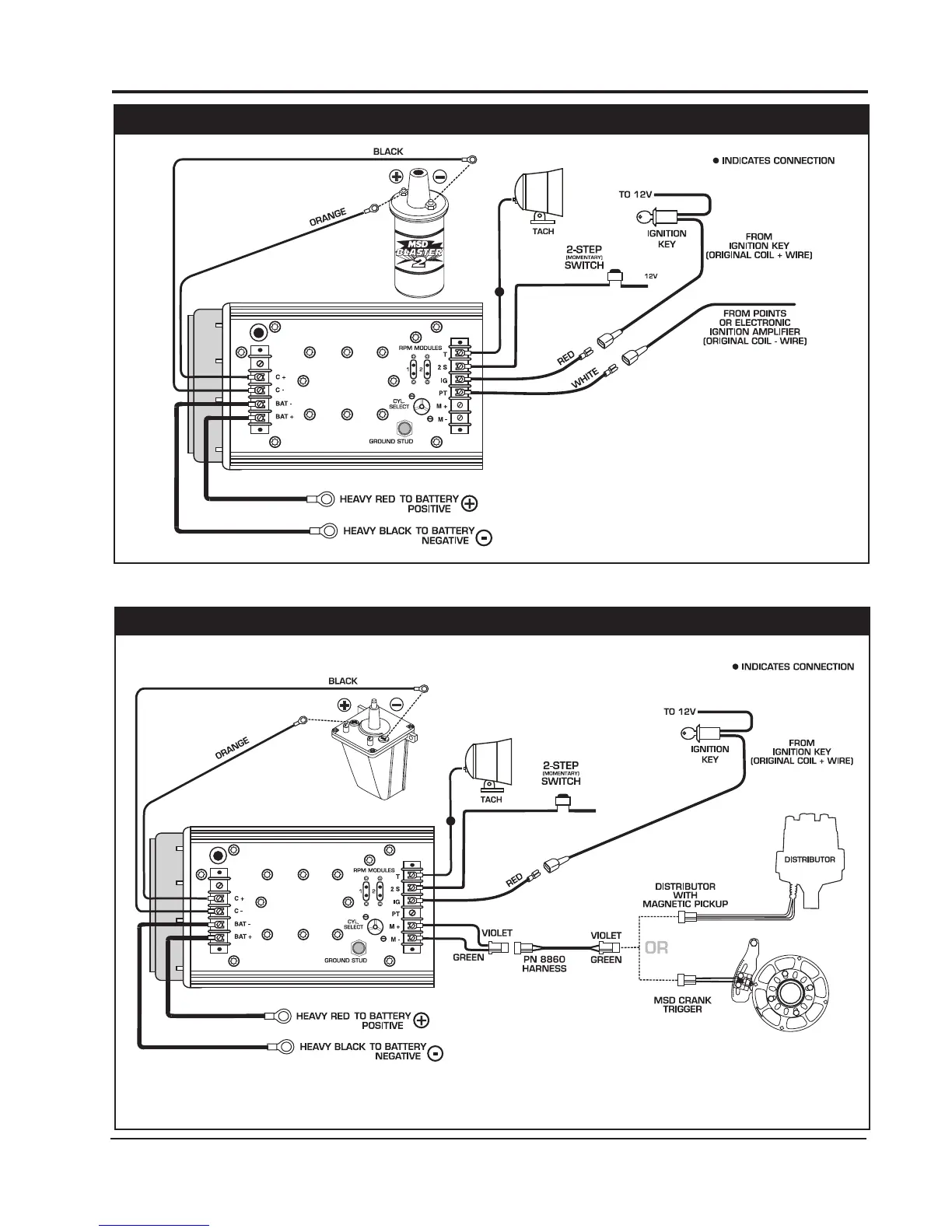

MSD SYSTEMS Installing to Points/Amplifier Style Ignition.
On dual point setups, it
is recommended to
remove the trailing set
of points.
NOTE:
MSD SYSTEMS Installing to an MSD Distributor/Crank Trigger.
TO 12 VOLTS
