MSD MSD-8 Plus User Manual

INS TAL LAT ION INS TRU CTI ONS 7
M S D • W W W . M S D P E R F O R M A N C E . C O M • ( 9 1 5 ) 8 5 7 - 5 2 0 0 • F A X ( 9 1 5 ) 8 5 7 - 3 3 4 4

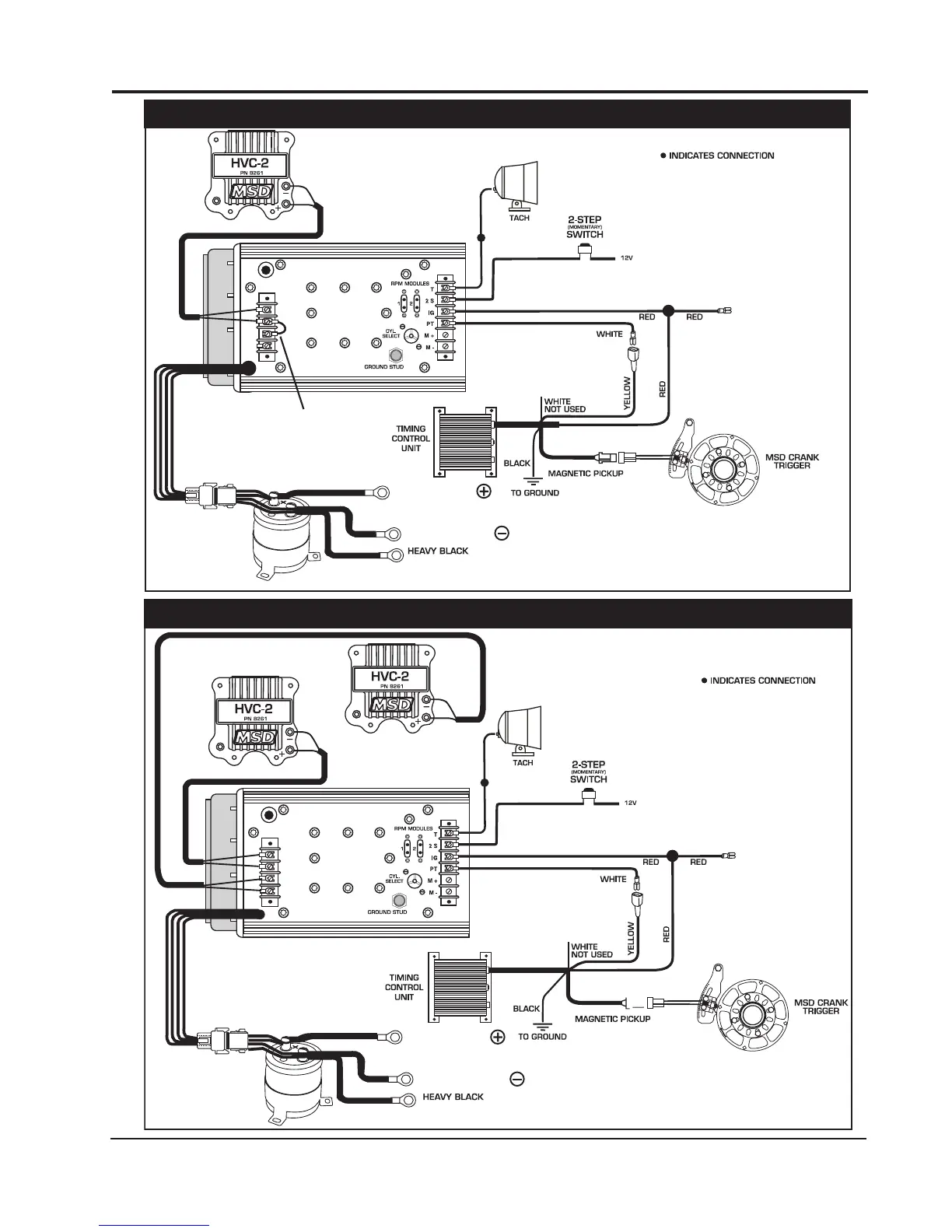

MSD SYSTEMS Single coil with an MSD Timing Control.
COIL 1-
COIL 1+
COIL 2+
COIL 2-
SUPPIED JUMPER
TO SWITCHED
12 VOLTS
SUPPLIED JUMPER*
PN 8261
BLACK
ORANGE
TO CHASSIS
HEAVY BLACK TO
BATTERY NEGATIVE
HEAVY RED TO
BATTERY POSITIVE
BLUE
GRAY
MSD SYSTEMS With an MSD Timing Control.
COIL 1-
COIL 1+
COIL 2+
COIL 2-
TO SWITCHED
12 VOLTS
PN 8261
PN 8261
BLACK
ORANGE
BLACK
ORANGE
TO CHASSIS
HEAVY BLACK TO
BATTERY NEGATIVE
HEAVY RED TO
BATTERY POSITIVE
BLUE
GRAY
*NOTE: WHEN USING A SINGLE COIL, BOTH COIL POSITIVE
TERMINALS MUST BE CONNECTED TO THE COIL.
EITHER CONNECT BOTH ORANGE WIRES TO THE COIL,
OR USE THE SUPPLIED JUMPER TO CONNECT THE
COIL POSITIVE TERMIANLS AT THE TERMINAL STRIP.
