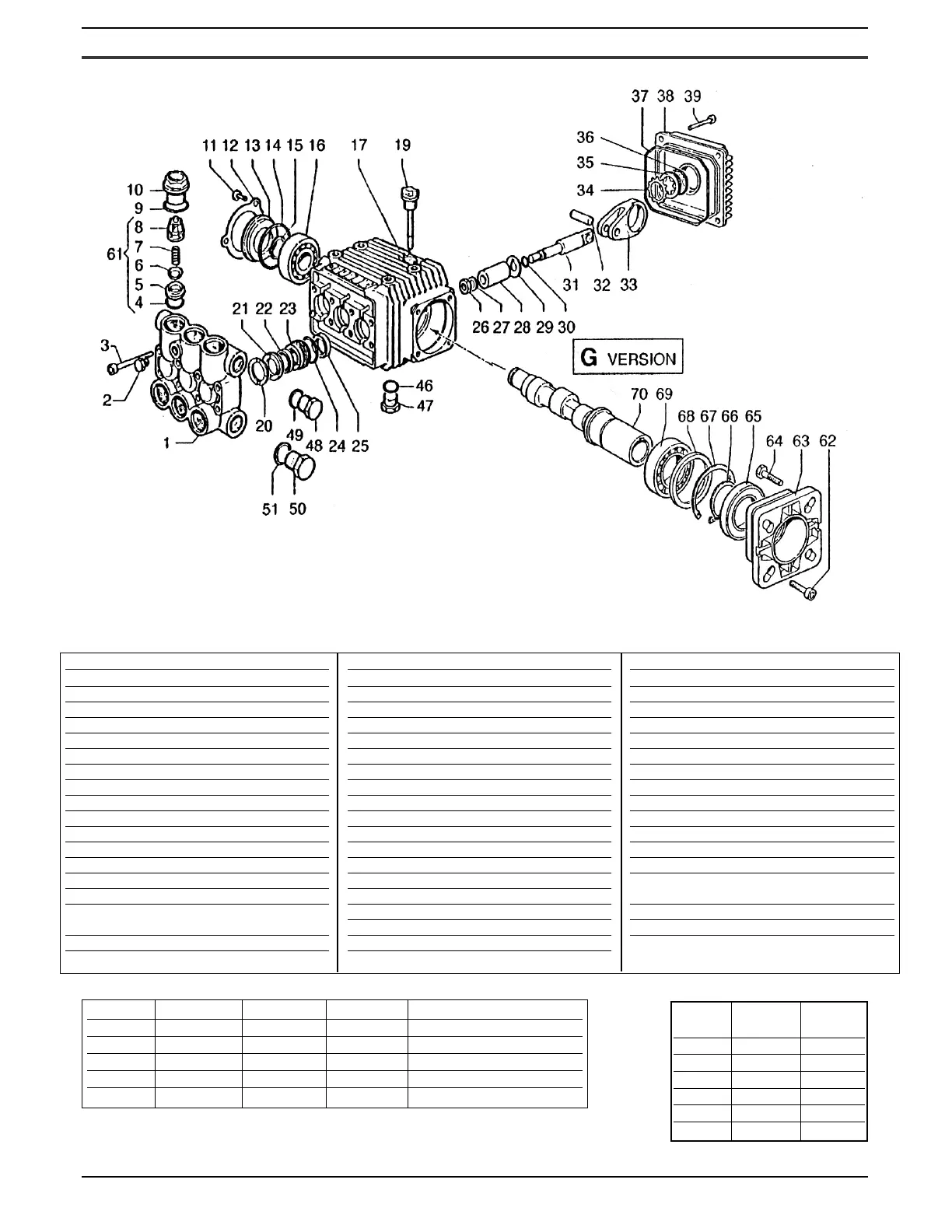

MSG MH2132G - Page 47

Pompe • Pump CO-LWD3025G
03/02/06 14:32CO-LWD3025G
REF Nº KIT DESCRIPTION Q
1 CO-3218/108 MANIFOLD Ø 15 mm BRASS 1
2 CO-3202/18 CAP G1/8 1
3 CO-3609/152 SCREW M6X55 8
4 CO-1210/46 A-D O-RING 2,62X17,13 mm 6
5 CO-3009/87 A VALVE SEAT 6
6 CO-3604/17 A VALVE PLATE 6
7 CO-1802/177 A SPRING 6
8 CO-1205/25 A VALVE GUIDE 6
9 CO-1210/48 A-D O-RING 2,62X20,24 mm 6
10 CO-3202/155 CAP 6
11 CO-3609/88 SCREW M5X10 3
12 CO-1004/12 CRANKCASE COVER 1
13 CO-402/172 SPACER 1
14 CO-1210/386 D O-RING 3,53X44,04 mm 1
15 CO-3019/11 SNAP RING 1
16 CO-438/69 BALL BEARING
20x52x15 mm 1
17 CO-403/128 CRANKCASE 1
19 CO-3200/51 OIL DIPSTICK 1
REF Nº KIT DESCRIPTION Q
20 CO-9/196 B HEAD RING Ø15 mm 3
21 CO-1241/34 B PACKING Ø15 mm 3
22 CO-1241/30 B PACKING 15X22X5,5 mm 3
23 CO-9/198 PACKING RETAINER Ø15 mm 3
24 CO-1210/223 B-D O-RING 1,78X26,7 mm 3
25 CO-19/95 D OIL SEAL 15X24X5 mm 3
26 CO-600/48 C NUT 3
27 CO-2811/80 C WASHER 8,2X14X1,5 mm 3
28 CO-202/20 C PISTON Ø15 mm 3
29 CO-2812/38 C WASHER 3
30 CO-1210/55 C-D O-RING 1,78X 6,07 mm 3
31 CO-2409/44 PISTON GUIDES 3
32 CO-3011/14 WRIST. PIN 3
33 CO-205/50 CON. ROD 3
34 CO-3019/33 SNAP RING Ø18 mm 1
35 CO-3201/10 OIL INDICATOR 1
36 CO-1210/333 D O-RING 1,78X23,52 mm 1
37 CO-1210/206 D O-RING 2,62X101,27 mm 1
38 CO-402/142 CRANKCASE COVER 1
REF Nº KIT DESCRIPTION Q
39 CO-3609/41 SCREW M6X25 4
46 CO-1210/441 D O-RING 2X14 mm 1
47 CO-3200/7 CAP 3/8GAS OT58 1
48 CO-3200/7 CAP 3/8GAS OT58 1
49 CO-2811/84 WASHER 16,7X22X1,5 mm 1
50 CO-3202/15 CAP G1/2 1
51 CO-2811/86 WASHER 21,2X27X1,5 mm 1
63 CO-3016/12 FLANGE 1
64 CO-3607/199 SCREW 5/16"24X3/4" 4
65 CO-19/75 D OIL SEAL 35X62X 7 mm 1
66 CO-3019/4 SNAP RING C72 1
67 CO-3020/12 SNAP RING C72 1
68 CO-2812/64 WASHER 1
69 CO-438/70 BALL BEARING
35X62X14 mm 1
70 CO-1/335 CRANKSHAFT 3/4" 1
61 CO-1220/30 VALVE ASS. BLY. 6
ABC D
Kit Nº CO-5025001100 CO-5019/34 CO-2409/71 CO-5019/41
Description Valve kit Packing kit Piston kit Seal kit
Ref. 4-5-6-7-8-9 20-21-22-24 36-27-28-29- 4(6)-9(6)-14-24(3)-
30 25(3)-30(3)-36-37-46-65
Qty 633 1
REF N
O
TORQUE TORQUE
(ft/lb) (Nm)
3 7.5 10.2
10 37 50
26 4.5 6.1
39 6.5 8.8
52 6.5 8.8
11 5.5 7.5
47/60
