25
Overview of Components

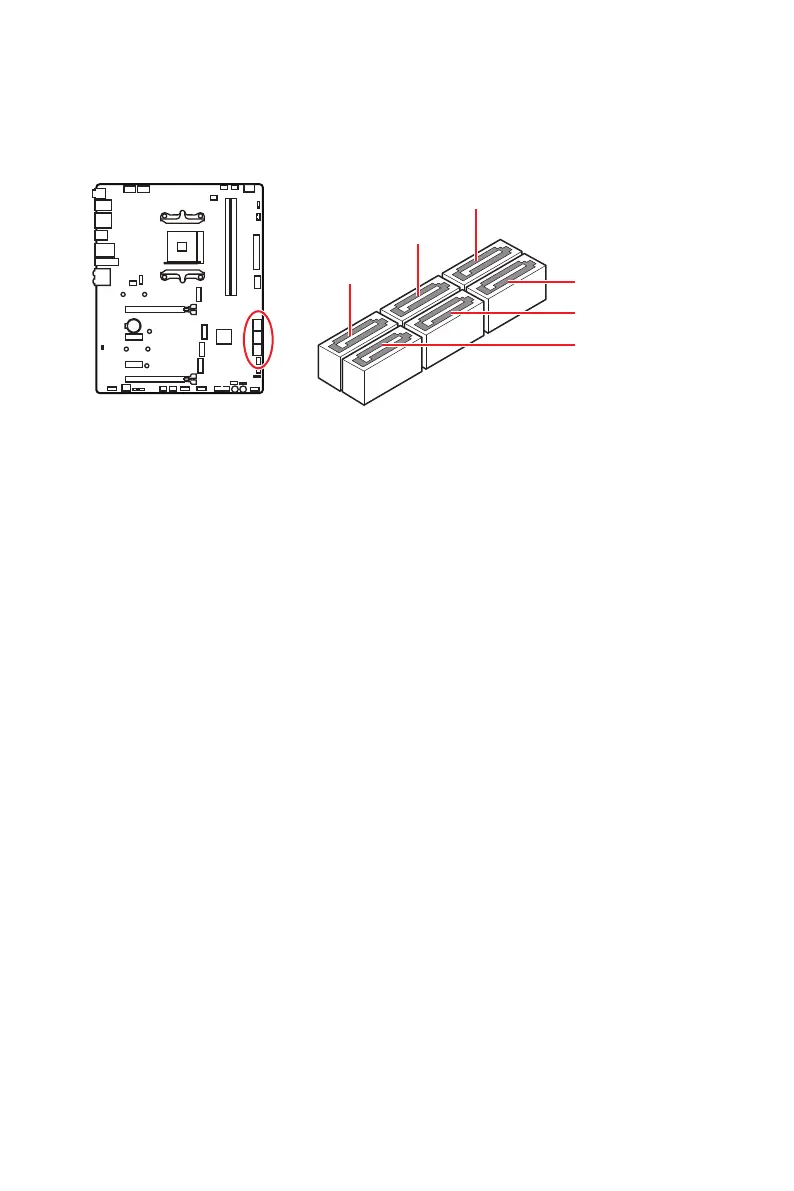

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.

recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA SSD into M2_3.
The SATA5 and SATA6 ports will be unavailable when installing M.2 PCIe SSD into
M2_3.
SATA2
SATA4
SATA6
SATA5
SATA1
SATA3
