34
Overview of Components
1
1
1
D
+5V
Important
The JRAINBOW connector supports up to 75 LEDs WS2812B Individually


Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.


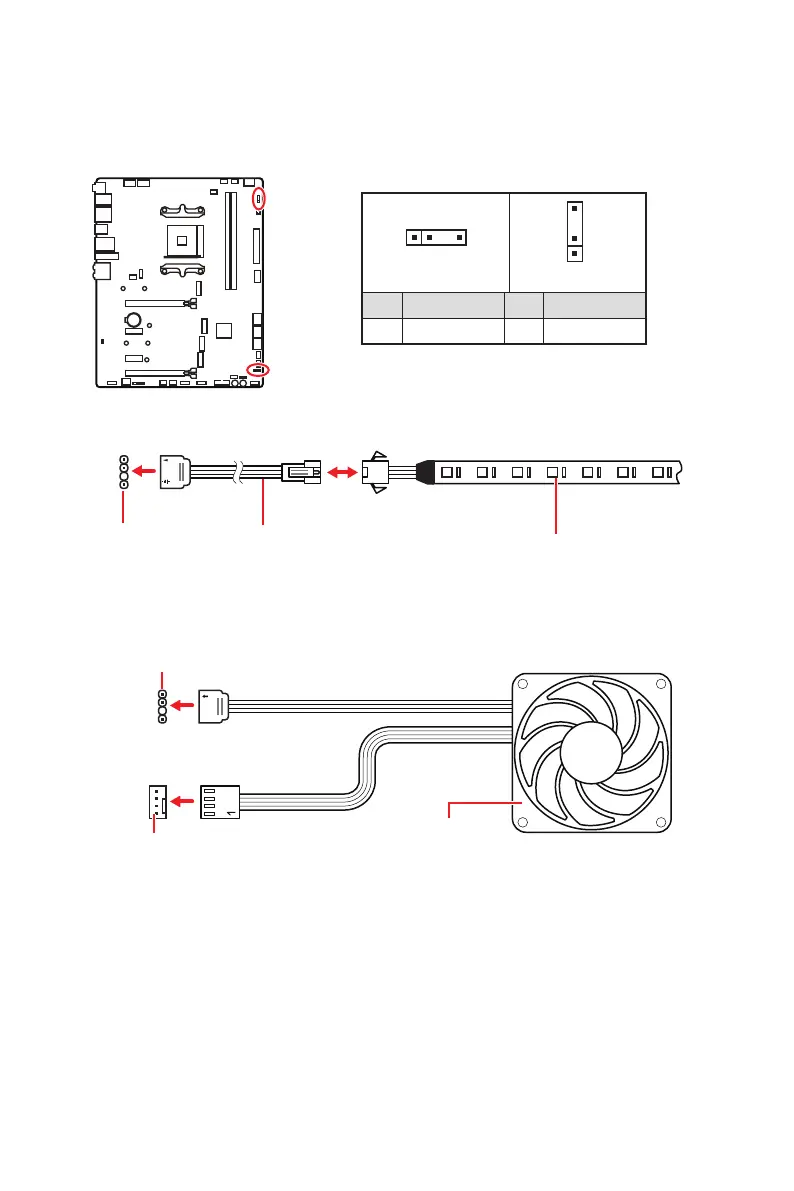

JRAINBOW1~2: Addressable RGB LED connectors
The JRAINBOW connectors allow you to connect the WS2812B Individually
Addressable RGB LED strips 5V.
JRAINBOW
connector
JRAINBOW connector
System Fan connector
Rainbow RGB LED
extension cable
WS2812B Individually
Addressable RGB LED strips 5V
Addressable RGB LED Strip Connection
Addressable RGB LED Fan Connection
Addressable RGB LED Fan
1
JRAINBOW2
1
JRAINBOW1
1 +5V 2 Data
3 No Pin 4 Ground
