Onboard LEDs

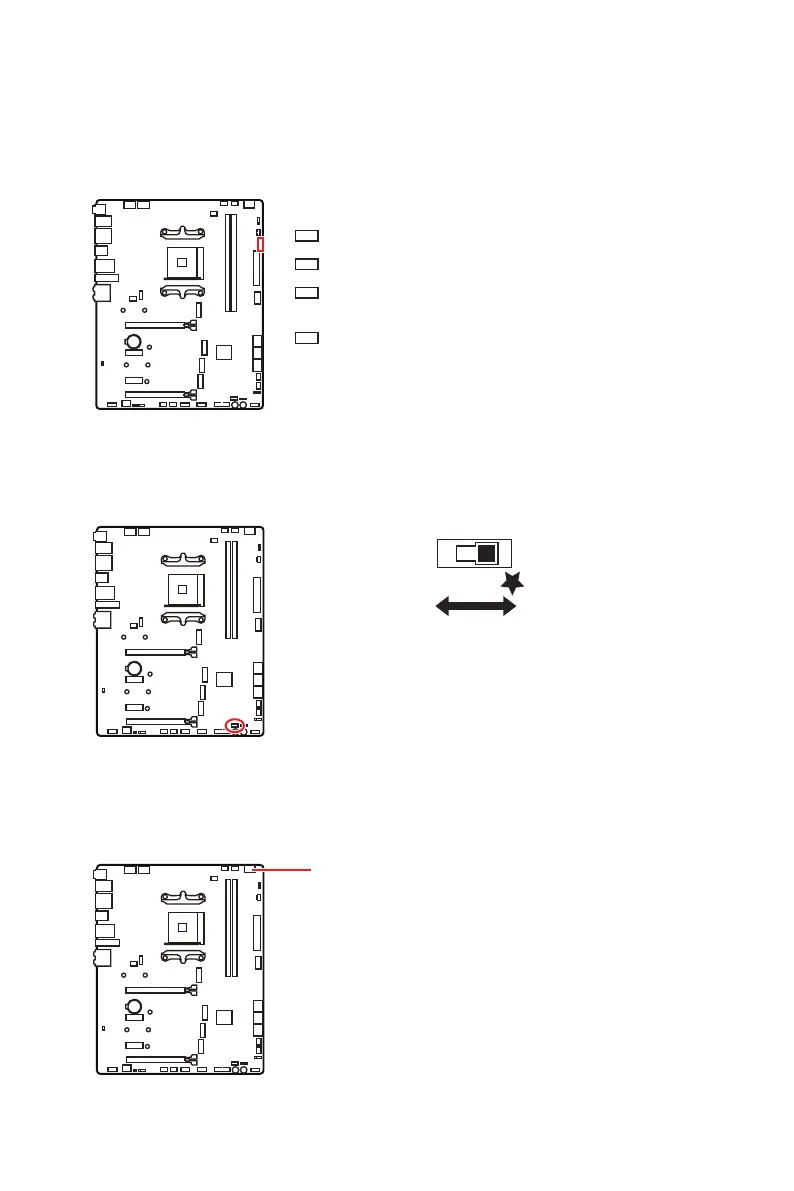

EZ Debug LED
These LEDs indicate the debug status of the motherboard.
Onboard LEDs
CPU
DRAM - indicates DRAM is not detected or fail.
VGA
or fail.
BOOT - indicates the booting device is not detected
or fail.
LED_SW1: EZ LED Control
This switch is used to switch on/ off all the LEDs of motherboard.
LED_OFF
LED_ON
Debug Code LED
