Overview of Components

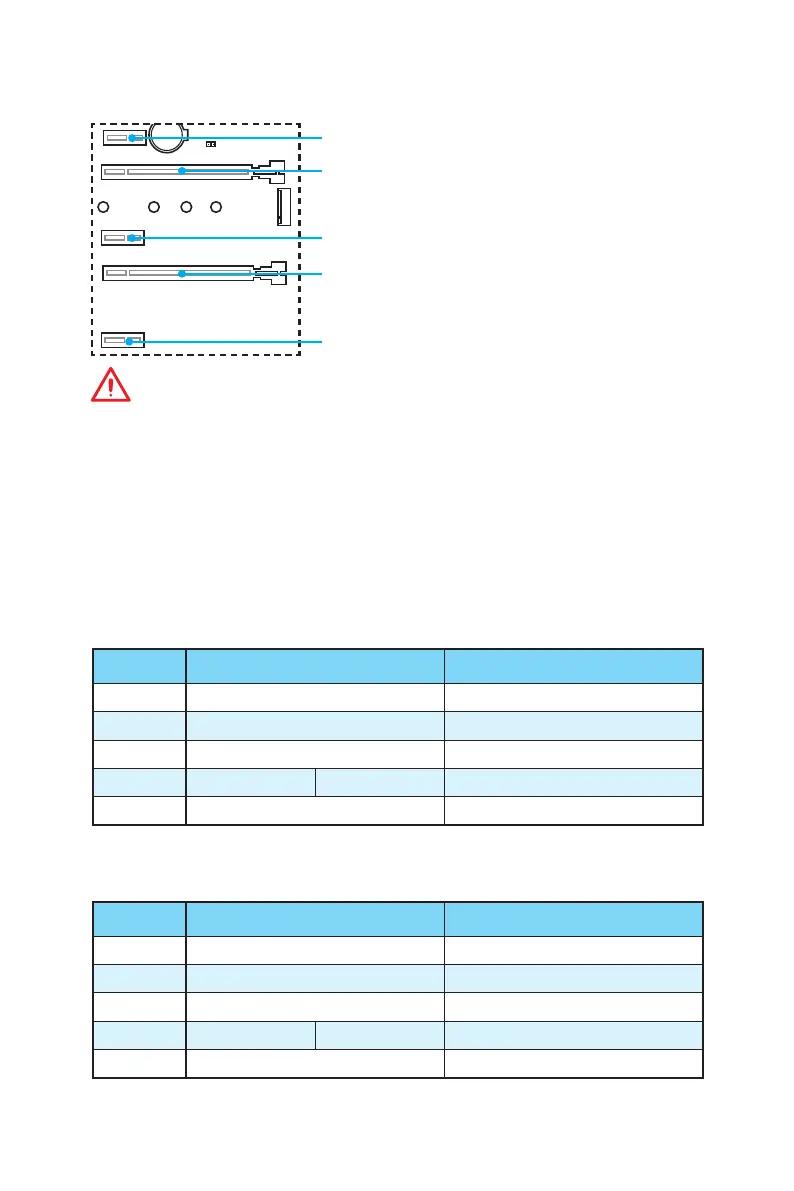

PCI_E1~5: PCIe Expansion Slots
PCI_E1: PCIe 2.0 x1
PCI_E2: PCIe 3.0 x16 (RYZEN series processors)
PCIe 3.0 x8 (7th Gen A-series/ Athlon™ processors)
PCI_E3: PCIe 2.0 x1
PCI_E4: PCIe 2.0 x4
PCI_E5: PCIe 2.0 x1
Important
y
If you install a large and heavy graphics card, you need to use a tool such as MSI
Gaming Series Graphics Card Bolster to support its weight to prevent deformation
of the slot.
y
For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E2 slot is recommended.
y
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
PCIe slot bandwidth table
For RYZEN series processors
Slot Single 2-Way
PCI_E1 2.0 x1 ―
PCI_E2 3.0 x16* 3.0 x16*
PCI_E3 2.0 x1 ―
PCI_E4 ― 2.0 x1 2.0 x4*
PCI_E5 2.0 x1 ―
(─: empty, *: graphics card)
For 7th Gen A-series/ Athlon™ processors
Slot Single 2-Way
PCI_E1 2.0 x1 ―
PCI_E2 3.0 x8* 3.0 x8*
PCI_E3 2.0 x1 ―
PCI_E4 ― 2.0 x1 2.0 x4*
PCI_E5 2.0 x1 ―
(─: empty, *: graphics card)
