CX623（MS-168A）Disassemble Guide
7、LOWER CASE ASSY

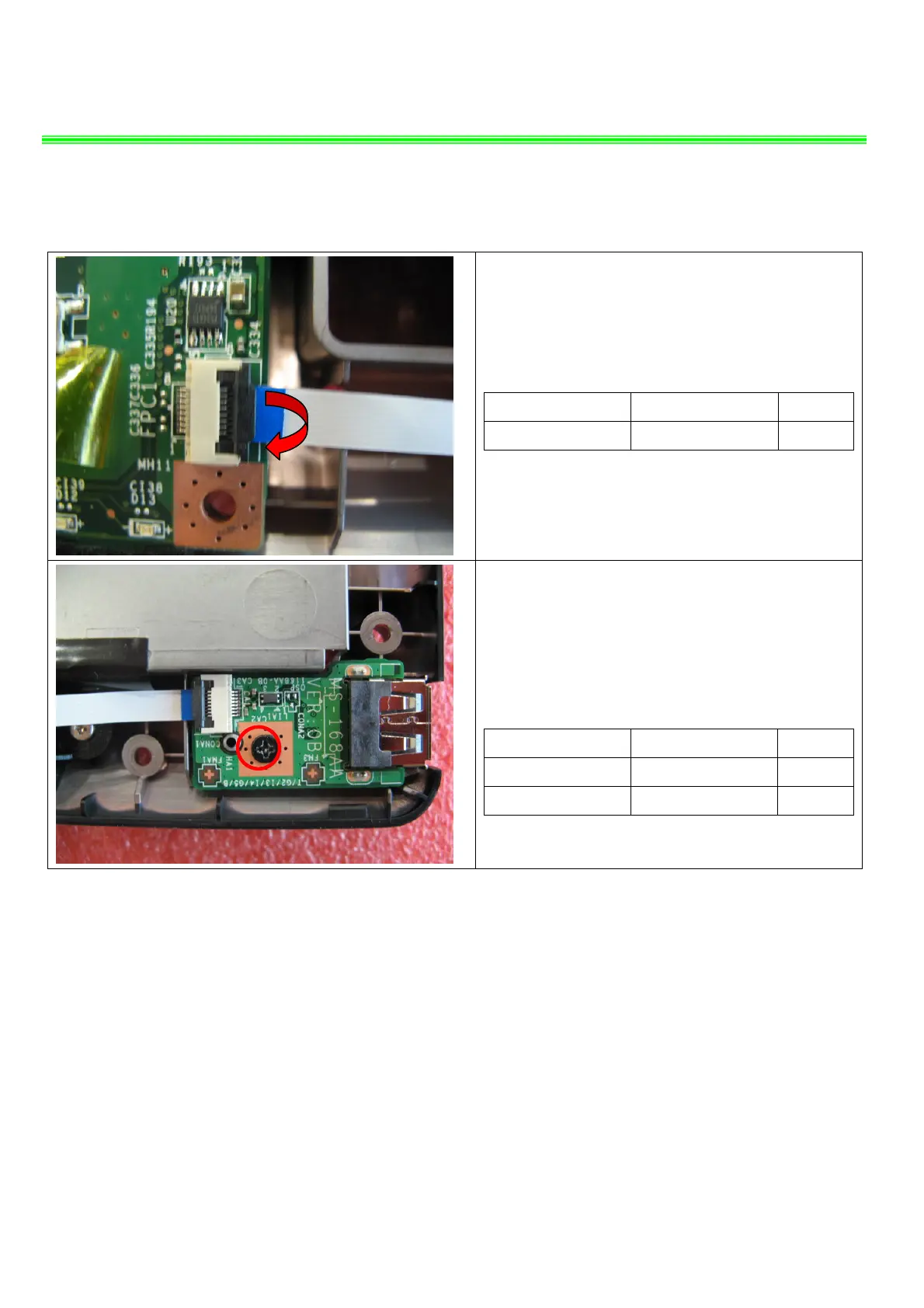

7.1：Remove the USB board cable as left pic
Shows.
Component P/N Qty
USB board FPC K1C-1012039-J36 1
7.2：Remove the 1screw (M2.5*5mm).
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
USB board 607-168AA-01S 1
Screw E43-1255001-G68 1
To Next Page
