MSI H310M PRO-VDH PLUS - Overview of Components

7

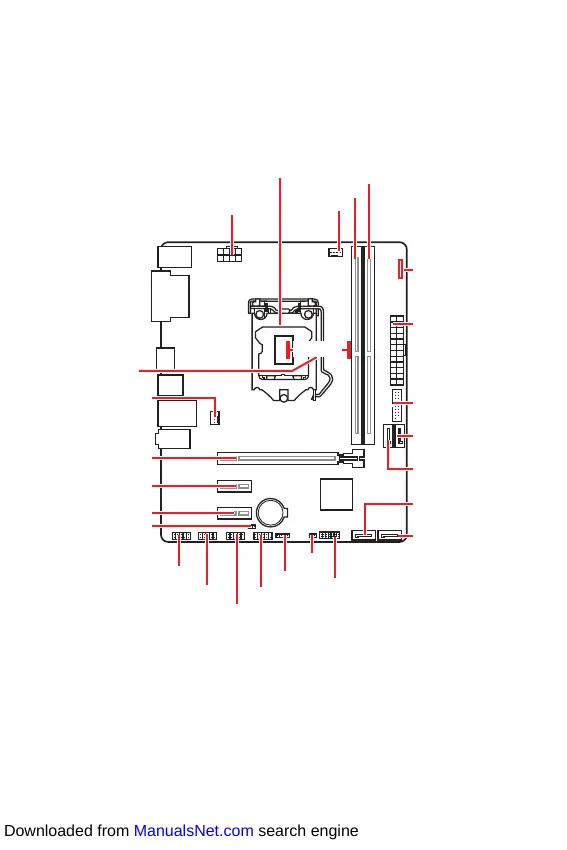

Rear I/O Panel Overview of Components
CPU_FAN1
ATX_PWR1
EZ Debug LED
CPU Socket
PCI_E2
PCI_E1
SYS_FAN1
PCI_E3
JBAT1
JCI1
JTPM1
DIMMA1
DIMMB1
JUSB2
JFP2
JFP1
CPU_PWR1
JUSB1
JCOM1
JAUD1
SATA1
SATA4
SATA2
SATA3
BAT1
51.27 mm
Distance from the
center of the CPU to
the nearest DIMM
slot.
