MSI MPG Z590 GAMING EDGE WIFI

27
Компоненты материнской платы

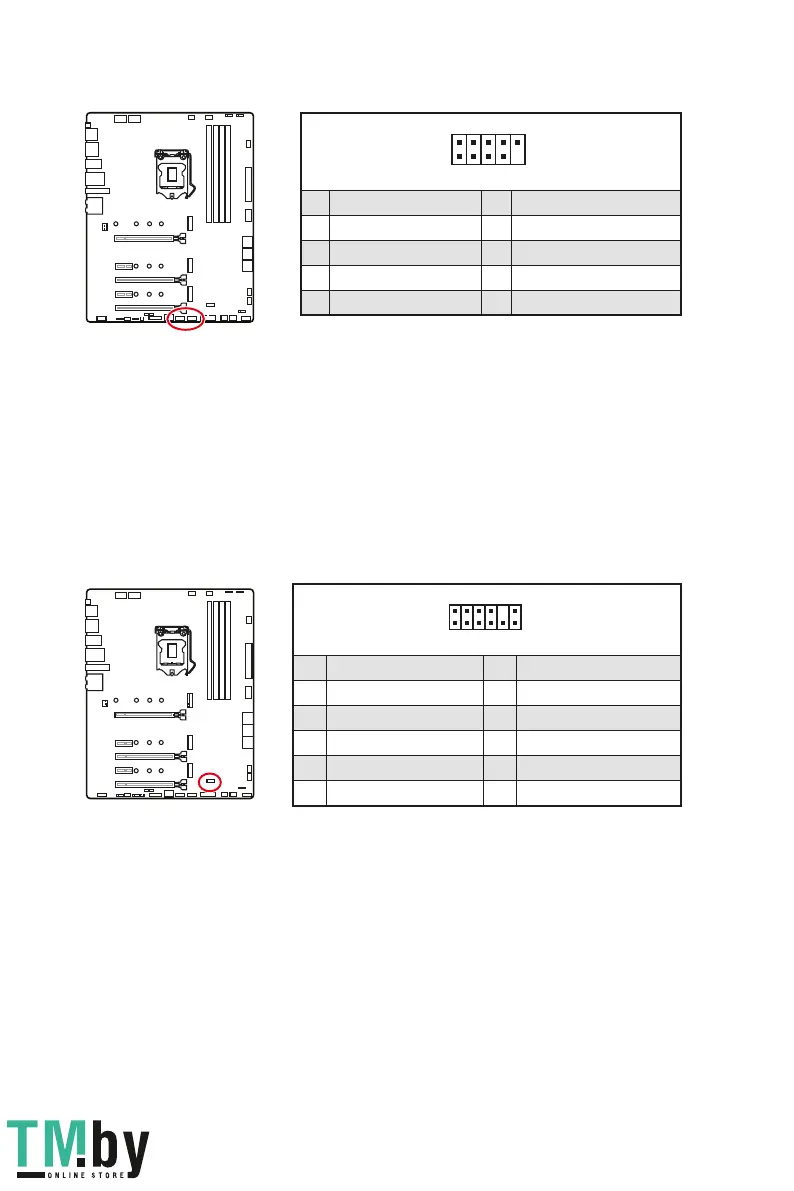

JUSB1~2: Разъемы USB 2.0


1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
⚠
Внимание!
∙ 

∙ 

1
2 12
11
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI Data) 4 Master Out Slave In (SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
JTPM1: Разъем модуля ТРМ


