Overview of Components

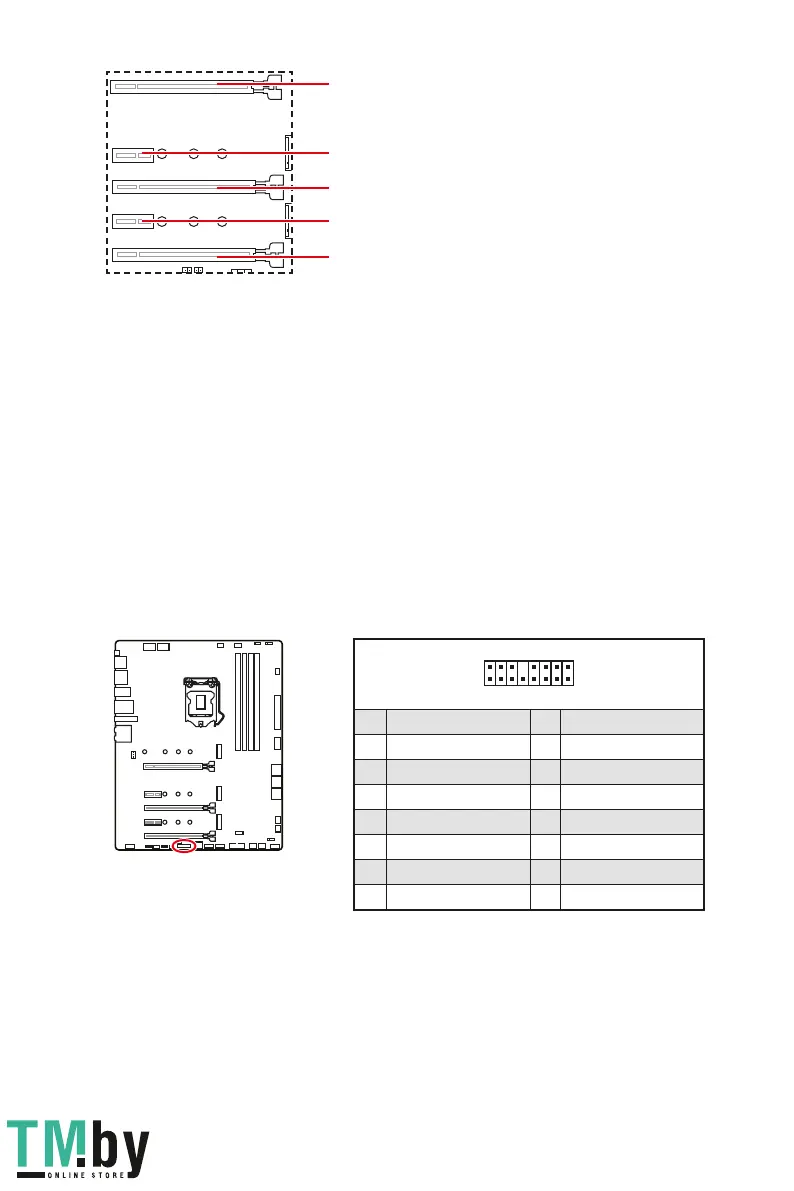

PCI_E1~5: PCIe Expansion Slots

PCI_E1: PCIe 4.0 x16 (From CPU)

PCI_E2: PCIe 3.0 x1 (From Z590 chipset)

PCI_E4: PCIe 3.0 x1 (From Z590 chipset)

PCI_E3: PCIe 3.0 x4 (From Z590 chipset)

PCI_E5: PCIe 3.0 x4 (From Z590 chipset)

⚠

Important

∙

If you install a large and heavy graphics card, you need to use a tool such as MSI

Gaming Series Graphics Card Bolster to support its weight to prevent deformation of

the slot.

∙

For a single PCIe x16 expansion card installation with optimum performance, using

the PCI_E1 slot is recommended.

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

∙

PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.

JTBT1: Thunderbolt Add-on Card Connector

This connector allows you to connect the add-on Thunderbolt I/O card.

2 16

1 TBT_Force_PWR 2 TBT_S0IX_Entry_REQ

3 TBT_CIO_Plug_Event# 4 TBT_S0IX_Entry_ACK

5 SLP_S3#_TBT 6 TBT_PSON_Override_N

7 SLP_S5#_TBT 8 No pin

9 Ground 10 SMBCLK_VSB

11 DG_PEWake 12 SMBDATA_VSB

13 TBT_RTD3_PWR_EN 14 Ground

15 TBT_Card_DET_R# 16 PD_IRQ#
