Overview of Components

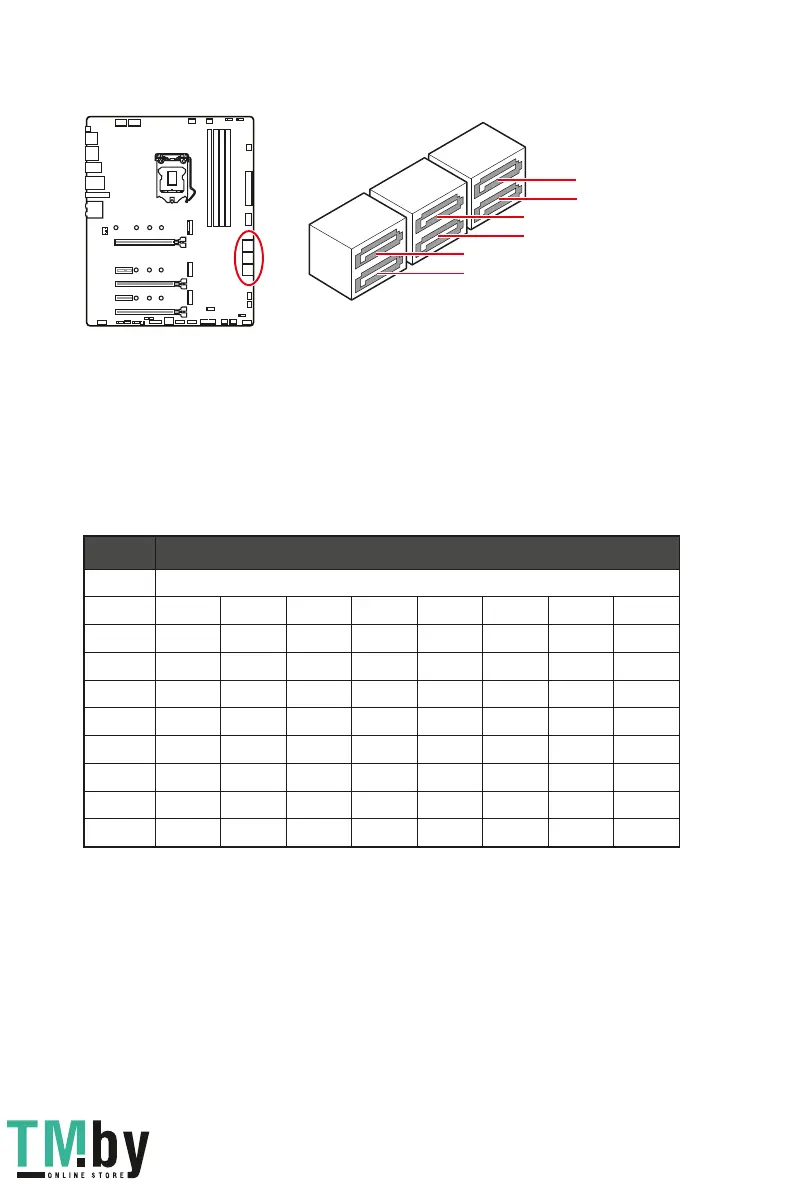

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one

SATA device.

SATA1

SATA3

SATA5

SATA2

SATA4

SATA6

⚠

Important

∙

Please do not fold the SATA cable at a 90-degree angle. Data loss may result during

transmission otherwise.

∙

SATA cables have identical plugs on either sides of the cable. However, it is

recommended that the flat connector be connected to the motherboard for space

saving purposes.

M.2, SATA & PCI_E3 slots combination table

Slot Available connectors

M2_1 PCIe (Only Intel 11th Gen processors support M2_1 slot)

M2_2 PCIe SATA PCIe SATA PCIe SATA  

M2_3 PCIe PCIe SATA SATA   PCIe SATA

SATA1        

SATA2        

SATA3        

SATA4        

SATA5        

SATA6        

PCI_E3        

(SATA: M.2 SATA SSD, PCIe

⚠

Important

∙

PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be

unavailable when installing M.2 SATA SSD in the M2_2 slot.

∙

SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
