2-17
Hardware Setup

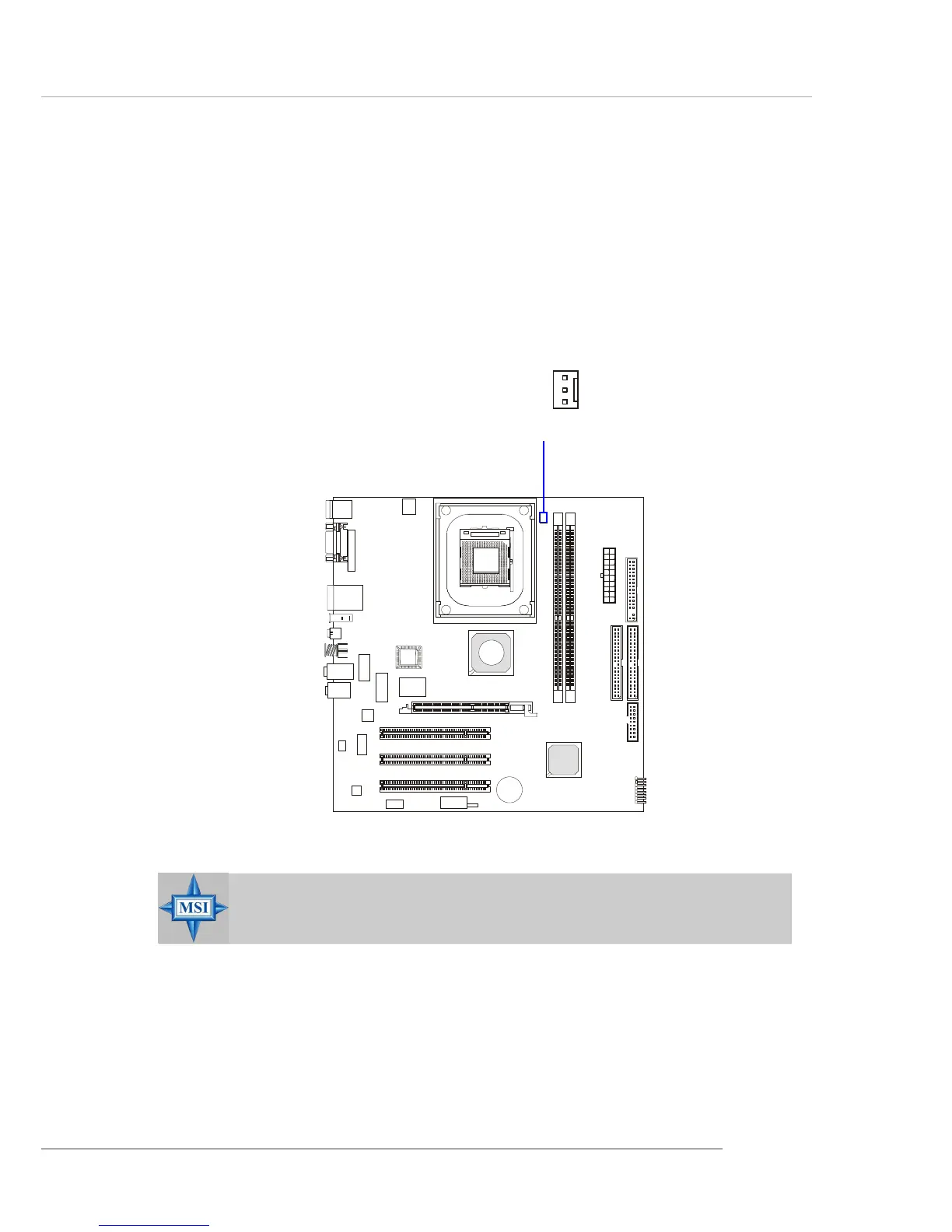

Fan Power Connectors: CPUFAN1
The CPUFAN1 (processor fan) supports system cooling fan with +12V.
It supports three-pin head connector. When connecting the wire to the
connectors, always take note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to
GND. If the mainboard has a System Hardware Monitor chipset on-board, you
must use a specially designed fan with speed sensor to take advantage of the
CPU fan control.
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.
CPUFAN1
SENSOR
+12V
GND
