2-24
MS-6785 M-ATX Mainboard

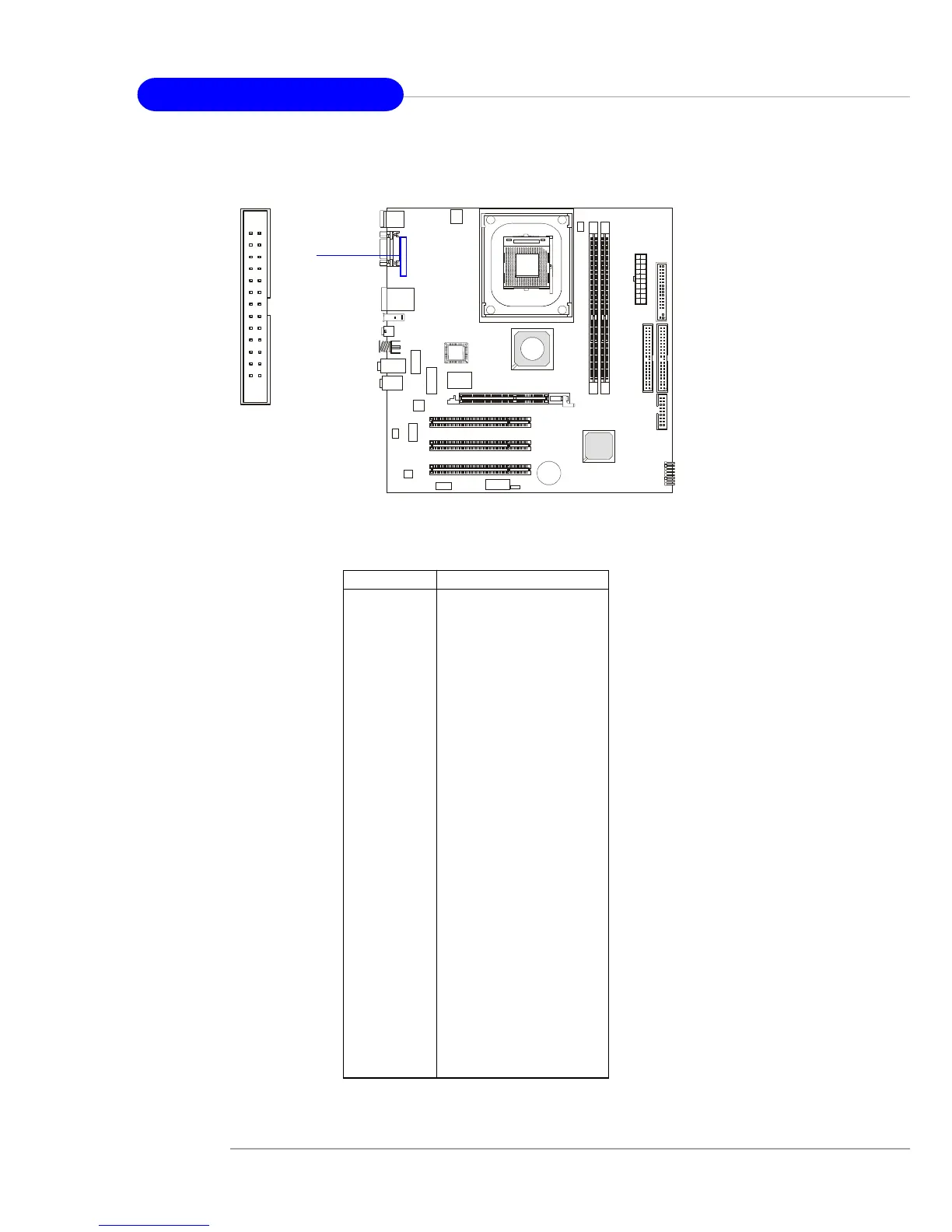

Print Port: JLPT
This mainboard provides a pin header, JLPT, for connecting a printer.
JLPT
12
26 25
PIN DESCRIPTION
1 STROBE
2DATA0
3DATA1
4DATA2
5DATA3
6DATA4
7DATA5
8DATA6
9DATA7
10 ACK#
11 BUSY
12 PE
13 SELECT
14 AUTO FEED#
15 ERR#
16 INIT#
17 SLIN#
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
26 NC
Pin Definition
