MSI PRO B660M-P DDR4 User Manual

16
Installation de la carte PCIe Wi-Fi/Bluetooth (PRO B660M-P WIFI
DDR4)

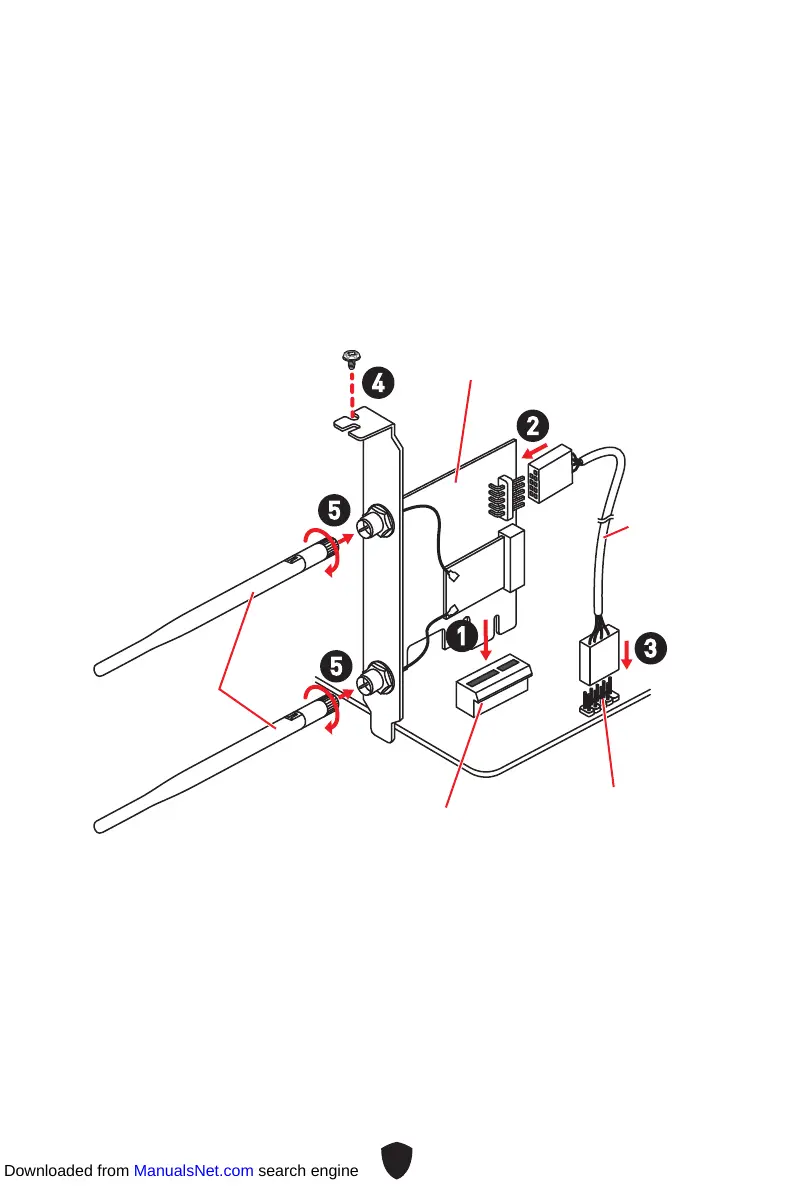

Veuillez suivre les étapes ci-dessous pour installer la carte PCIe WiFi/Bluetooth.
1. Installez la carte PCIe Wi-Fi/Bluetooth dans le slot PCIe x1.
2. Branchez une extrémité du câble USB au connecteur USB de la carte.
3. Branchez l’autre extrémité du câble USB au connecteur USB 2.0 de la carte mère.
4. Utilisez la vis pour fixer la carte.
5. Vissez fermement les antennes aux connecteurs RP-SMA de la carte PCIe Wi-Fi/
Bluetooth comme indiqué.

Important
Assurez-vous que tous les câbles sont correctement connectés.
1
2
3
5
5
4
Antennes
Câble USB
Connecteur USB 2.0
Slot PCIe x1
Carte PCIe Wi-Fi/Bluetooth
Downloaded from ManualsNet.com search engine

MSI PRO B660M-P DDR4 Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i9
Supported processor sockets	LGA 1700
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
RAID levels	0, 1, 5, 10
Supported storage drive types	SSD
Supported storage drive interfaces	M.2, SATA III
Cables included	SATA
BIOS type	-
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10, Windows 11
DirectX version	12.0
Parallel processing technology support	Not supported
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
