MSI PRO B760-P DDR4 II - M.2 Module Installation (M2_2 Slot)

30
6677
6. Remove the protective films from the thermal pads under the M.2 Shield Frozr
heatsink.
7. Put the M.2 Shield Frozr heatsink back in place and secure it.
66
77
77

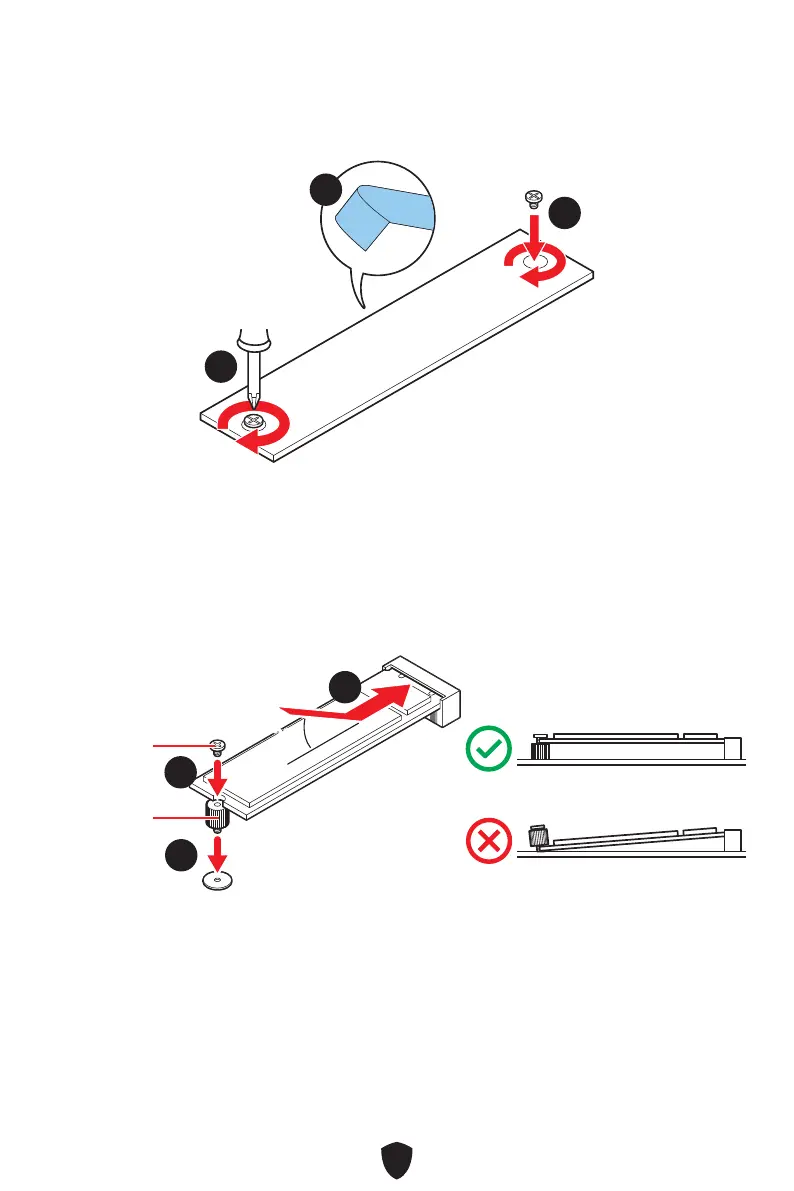

Installing M.2 module into M2_2 slot
1. Please install the supplied M.2 standoff in the M.2 slot according to your SSD
length.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Secure the M.2 SSD in place with the supplied M.2 screw.
30º30º
33
11
22
M.2 screw
M.2 standoff
