Overview of Components

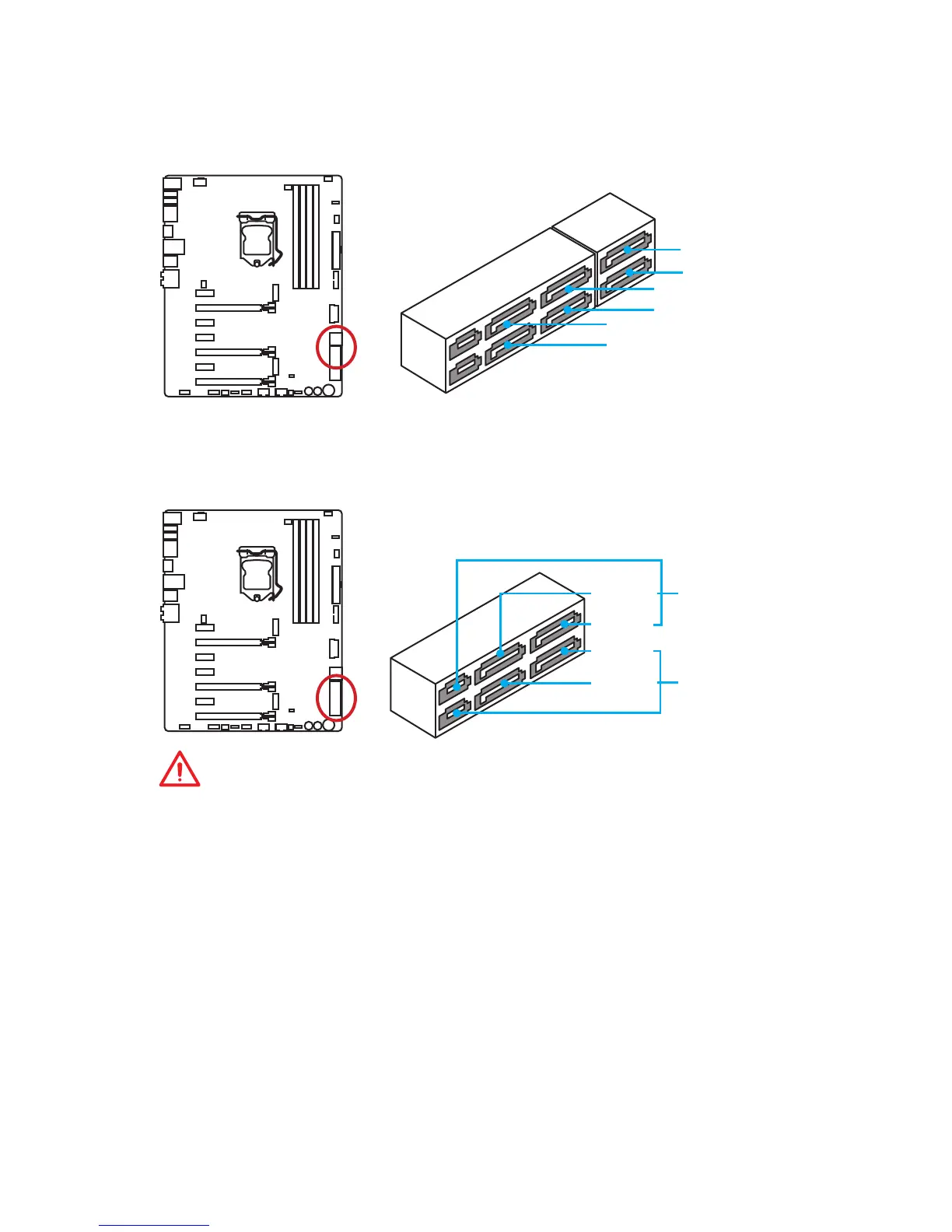

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
SATA1
SATA5
SATA4
SATA2
SATA6
SATA3
SE1_43-SE2_65: SATAe Connectors
These connectors are SATAe (SATA Express) interface ports. Each SATAe connector
can be used with a single SATAe device or two legacy SATA devices.
SATA3
SATA5
SATA4
SATA6
SATAe1
SATAe2
Important
●
Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
●
SATA or SATAe cables have identical plugs on either sides of the cable. However,
it is recommended that the flat connector be connected to the motherboard for
space saving purposes.
