MSI Z370 GAMING PLUS - Rear I;O Panel; LAN Port LED Status Table; Audio Ports Configuration

22

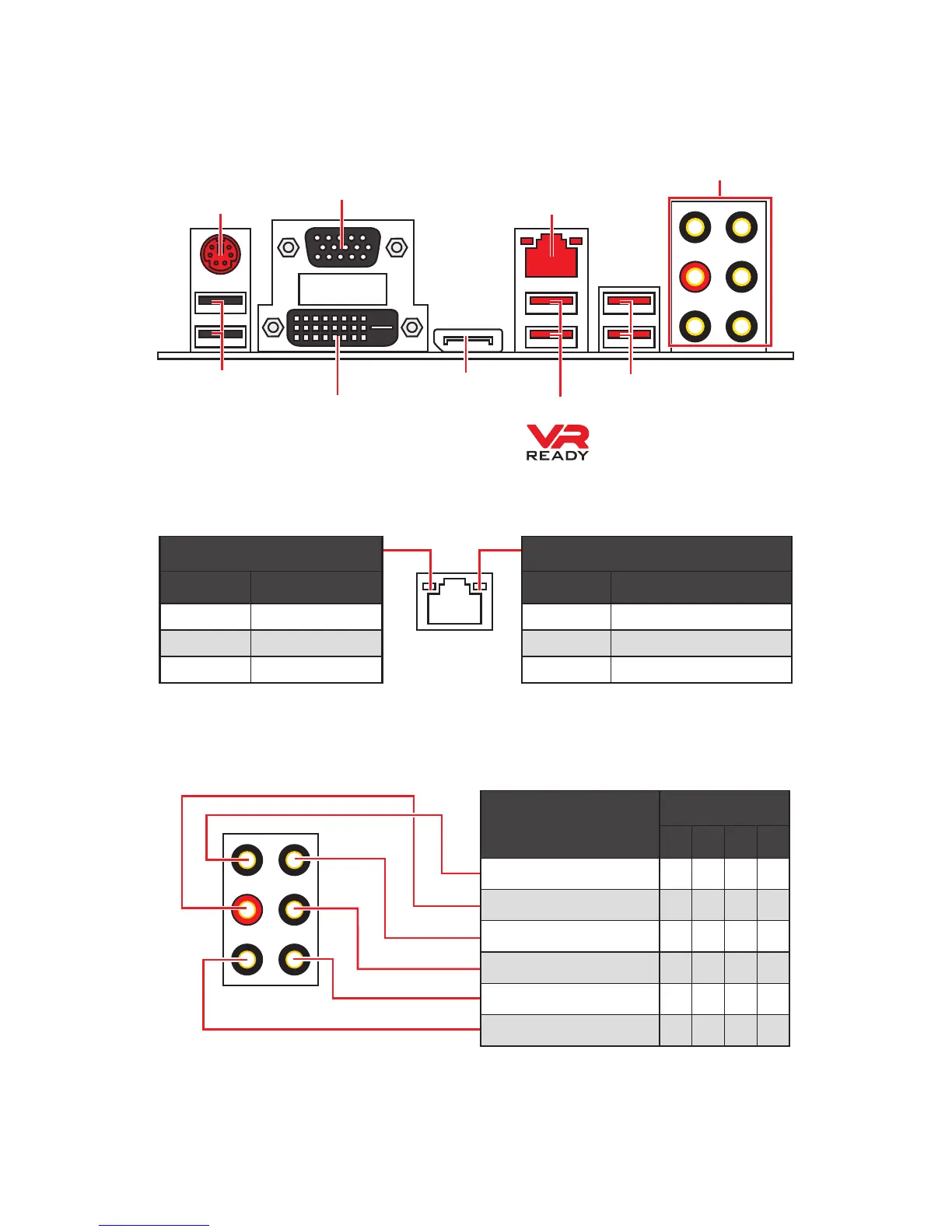

Rear I/O Panel
Rear I/O Panel
PS/2 Port
LAN
Audio Ports
DVI-D
DisplayPort
USB 3.1 Gen1
USB 3.1 Gen1
USB 2.0
VGA
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Line-In
Line-Out/ Front Speaker Out ● ● ● ●
Rear Speaker Out ● ● ●
Center/ Subwoofer Out ● ●
Side Speaker Out ●
Mic In
(●: connected, Blank: empty)
