MSI Z790 PROJECT ZERO - Back Panel Connectors

22

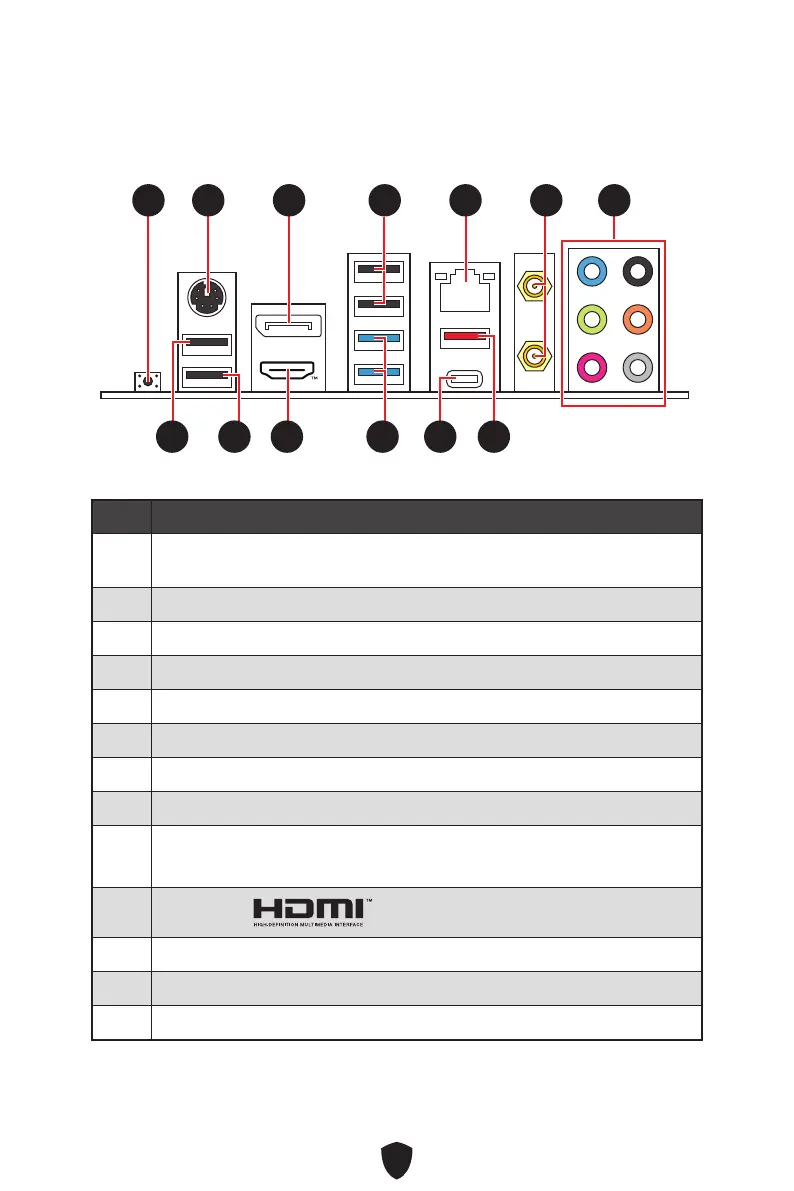

Back Panel Connectors
Item Description
1
Flash BIOS button- Please refer to page 57 for details about updating BIOS
with Flash BIOS button.
2 PS/2 keyboard/ mouse combo port
3 DisplayPort
4 USB 2.0 Type-A ports (From Hub-GL850G)
5 2.5 Gbps LAN (RJ45) jack
6 Wi-Fi Antenna connectors
7 Audio jacks
8 USB 2.0 Type-A port (From Z790 chipset)
9
USB 2.0 Type-A port (From Z790 chipset)
∙ Flash BIOS Port
10
HDMI™ port
11 USB 3.2 Gen 1 5Gbps Type-A port (From Z790 chipset)
12 USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
13 USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset)
11 77
1010
553322 44 66
88 1111 1212 131399
