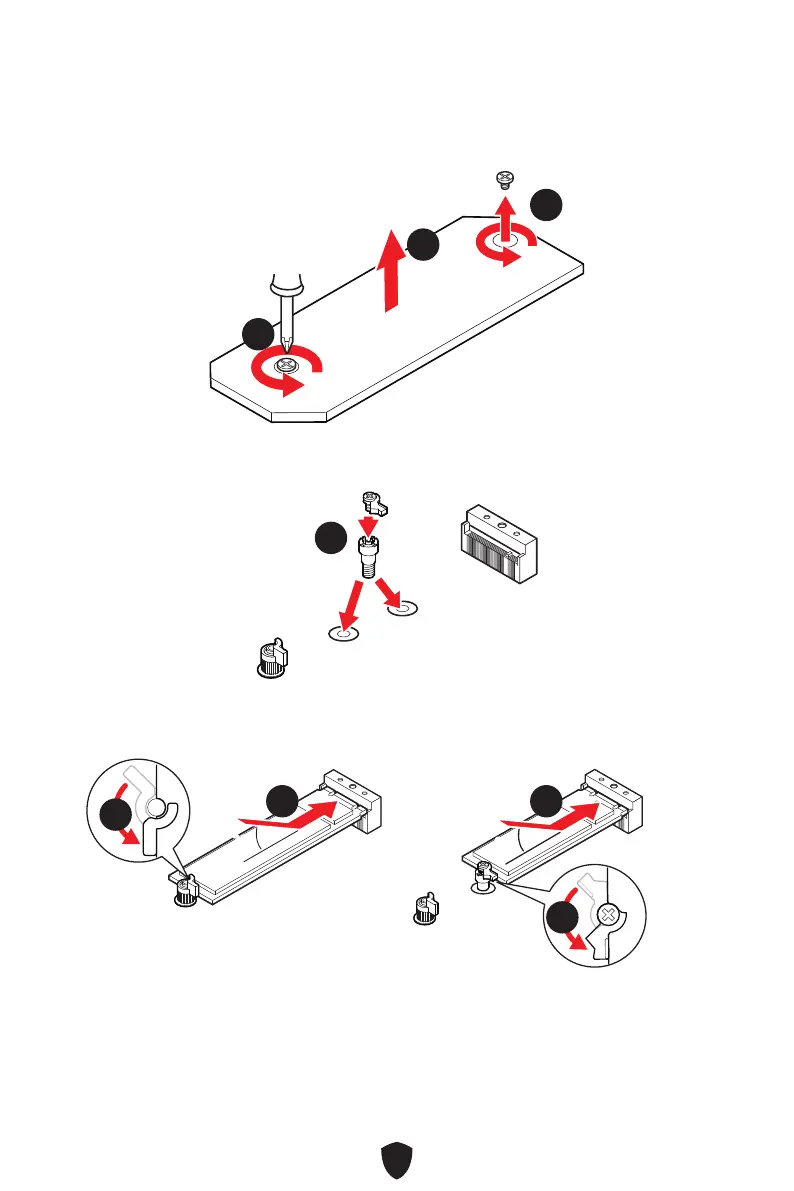

Installing M.2 module into M2_2 slot
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
22
3. If you want to install 2242 or 2260 M.2 SSD, please install the supplied EZ M.2 Clip
kit in the 2242 or 2260 screw hole. Skip this step if you install 2280 SSD.
33
2260
2242
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
2280 SSD
2242/2260 SSD
44 44
55
55
