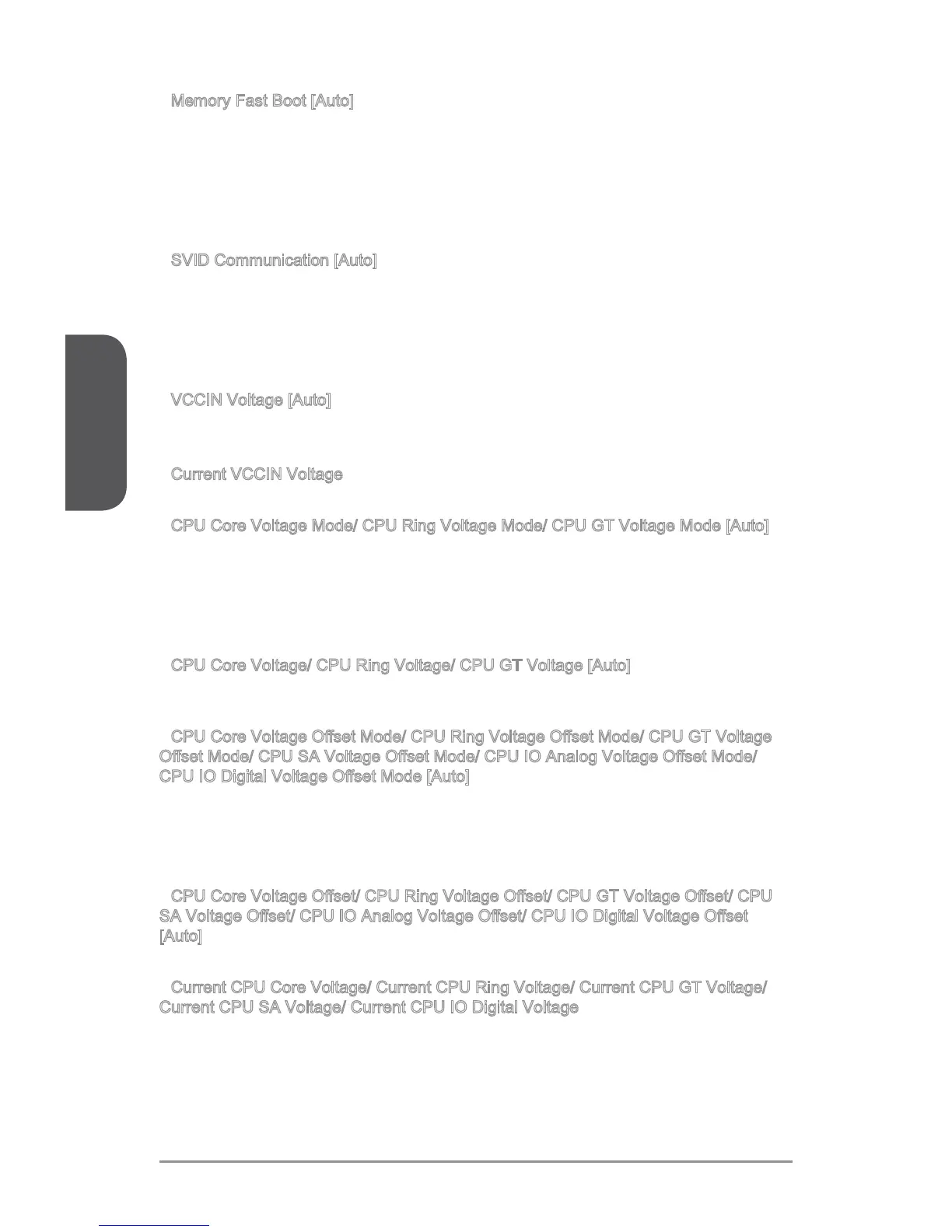

Memory Fast Boot [Auto]
Enables or disables the initiation and training for memory every booting.
[Auto] This setting will be con󰘰gured automatically by BIOS.
[Enabled] Memory will completely imitate the archive of 󰘰rst initiation and 󰘰rst
training. After that, the memory will not be initialed and trained when
booting to accelerate the system booting time.
[Disabled] The memory will be initialed and trained every booting.
SVID Communication [Auto]
Enables or disables SVID (Serial Voltage Identi󰘰cation) support.
[Auto] This setting will be con󰘰gured automatically by BIOS.
[Enabled] PWM phase will be changed dynamically according to the CPU SVID
(Serial Voltage Identi󰘰cation).
[Disabled] Disables SVID (Serial Voltage Identi󰘰cation) support.
VCCIN Voltage [Auto]
Sets the CPU input voltage. The CPU input voltage is the CPU power source that is
shared with components of the CPU.
Current VCCIN Voltage
Shows current CPU VCCIN voltage. Read-only.
CPU Core Voltage Mode/ CPU Ring Voltage Mode/ CPU GT Voltage Mode [Auto]
Selects the control modes for these voltages.
[Auto] This setting will be con󰘰gured automatically by BIOS.
[Adaptive Mode] Sets adaptive voltages automatically for optimizing the system
performance.
[Override Mode] Allows you to set these voltages manually.
CPU Core Voltage/ CPU Ring Voltage/ CPU GT Voltage [Auto]
Sets these voltages. If set to "Auto", BIOS will set these voltages automatically or you
can set it manually.
CPU Core Voltage O󰘯set Mode/ CPU Ring Voltage O󰘯set Mode/ CPU GT Voltage
O󰘯set Mode/ CPU SA Voltage O󰘯set Mode/ CPU IO Analog Voltage O󰘯set Mode/
CPU IO Digital Voltage O󰘯set Mode [Auto]
Selects the voltage o󰘯set modes.
[Auto] This setting will be con󰘰gured automatically by BIOS.
[+] Allows you to set the positive o󰘯set voltage.
[-] Allows you to set the negative o󰘯set voltage.
CPU Core Voltage O󰘯set/ CPU Ring Voltage O󰘯set/ CPU GT Voltage O󰘯set/ CPU
SA Voltage O󰘯set/ CPU IO Analog Voltage O󰘯set/ CPU IO Digital Voltage O󰘯set
[Auto]
Set the o󰘯set values for these voltages.
Current CPU Core Voltage/ Current CPU Ring Voltage/ Current CPU GT Voltage/
Current CPU SA Voltage/ Current CPU IO Digital Voltage
Show the current voltages. Read-only.
