MTD 700 Series Shop Manual

600 Series Drive System
31
Axle Assemblies
1. With the engine stopped and allowed to cool, discon-
nect the spark plug wire and ground it to the engine.
2. Drain the fuel into an approved container.
3. Carefully tip the snow thrower forward, so it rests on
the auger housing opening.

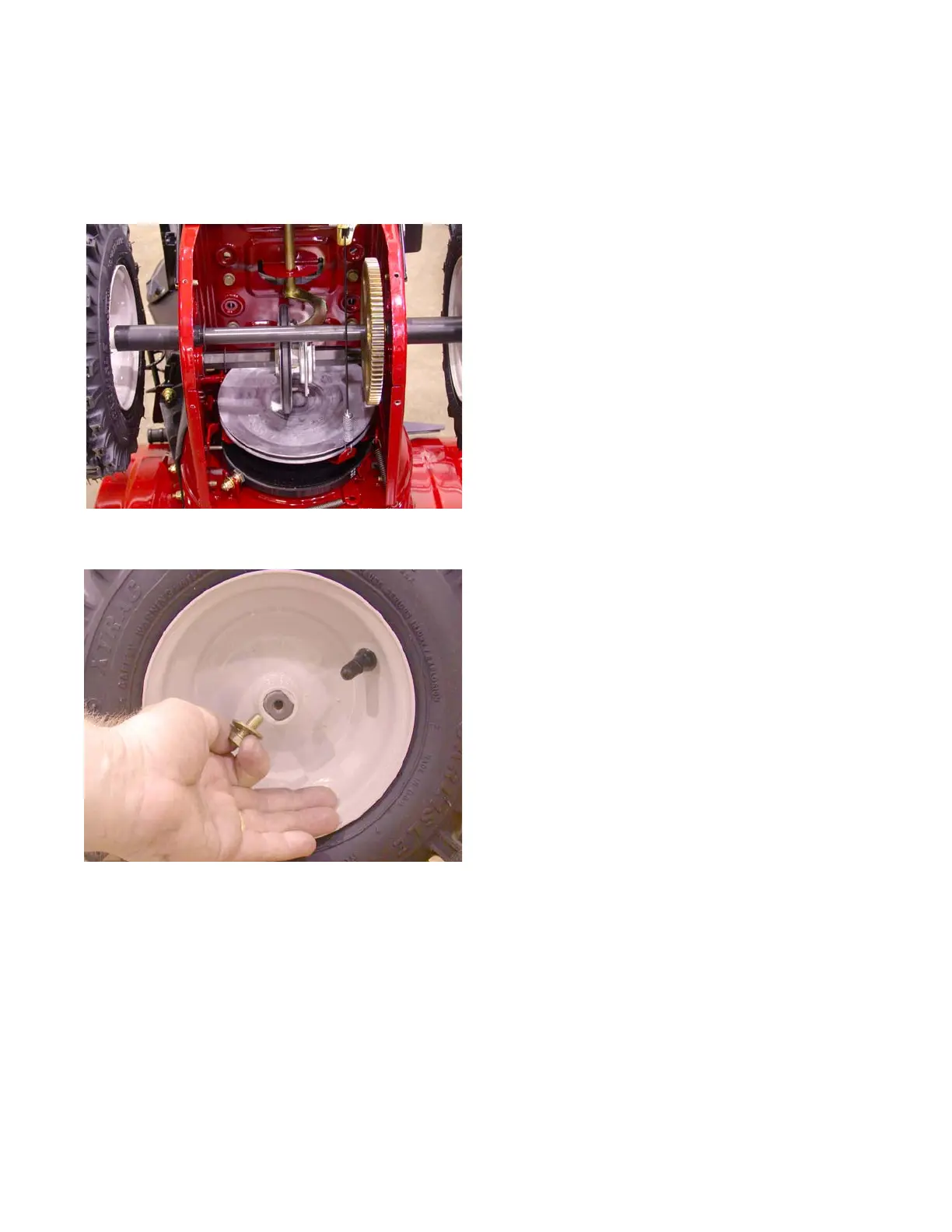

4. Remove the bottom access panel. See Figure 4.1.
5. Remove the wheels using a 1/2” wrench.
NOTE: The ends of the axle shaft are double D.
Figure 4.1
Figure 4.2
Chapter 4: 600 Series Drive System

MTD 700 Series Specifications

General

Turning Radius	18 inches
Engine Type	Single-cylinder
Drive Type	Rear-wheel drive
Tire Size (Front)	15x6.00-6
Tire Size (Rear)	20x10.00-8
