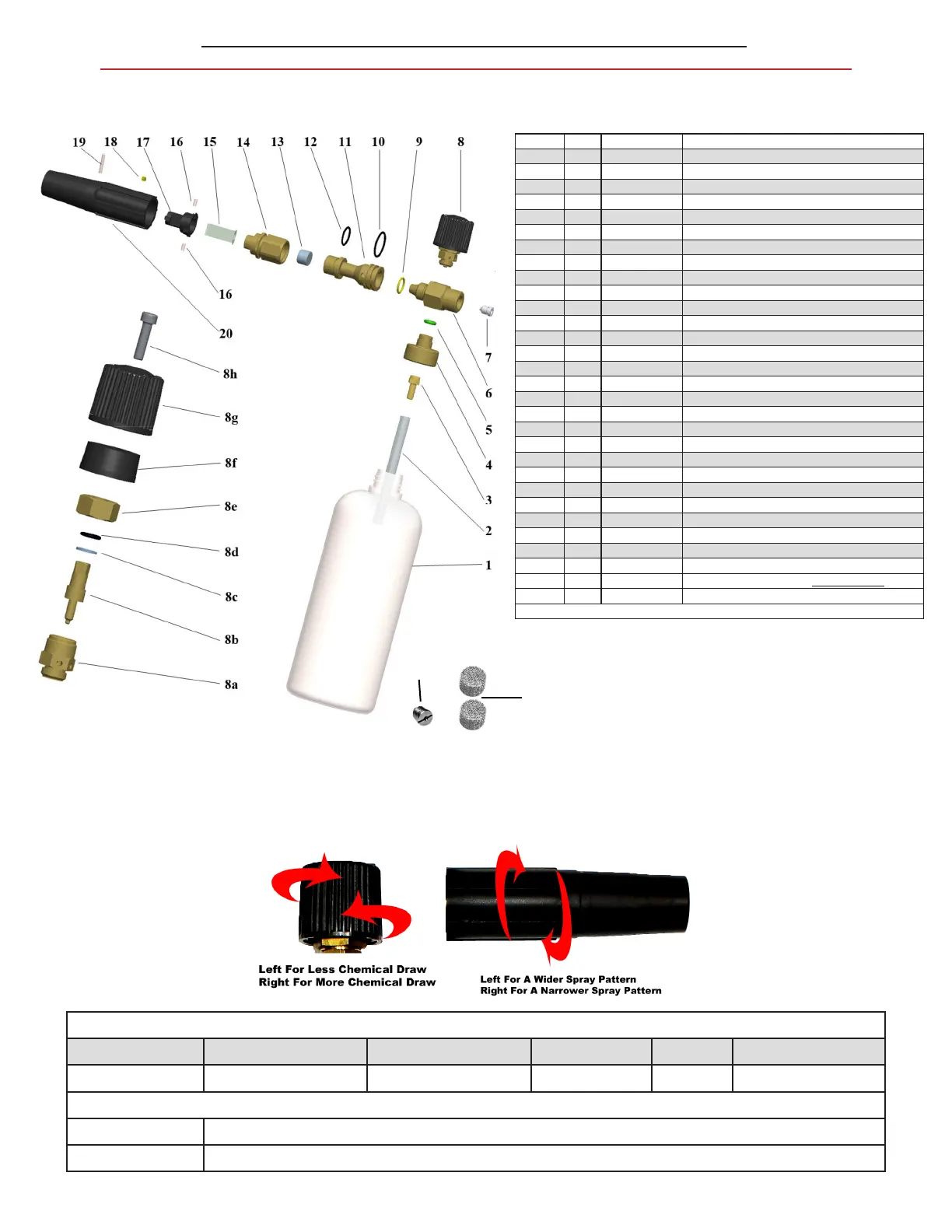

14.5012 Professional Foam Cannon Components List
Position Qty Part Number Description
1 1 37.0253 Tank
2 1 41.0338 1/4”x9” Suction Tube
3 1 Hose barb Ø6 1/8M
4 1 Bottle Connection
5 1 Viton O-Ring OR0366 Green
6 1 Central Body
7 1 36.0227 Special Nozzle Ø1.25
8 1 - Mechanical Part Air Intake
9 1 *** NBR O-Ring OR2050 Yellow
10 1 *** NRB O-Ring OR2087 70Sh
10a 1 Plunger Coupling
10b 1 Plunger
10c 1 Plunger Washer
10d 1 *** NBR O-Ring OR2031 70Sh
10e 1 Plunger Ring Nut
10f 1 Plastic Knob Postioning
10g 1 Black Plastic Knob
10h 1 Screw T.C.E.I. M5x20 Burnished
11 1 Upcoming Body
12 1 *** NBR O-Ring OR2062 70Sh
13 1 36.0226 Preinstalled Stainless Steel Filter
14 1 Deflector Coupling
15 1 Thin Fan Layer Stainless Steel
16 2 Pin 3x8
17 1 Deflector
18 1 Yellow Dot For Ø1.25 Nozzle Identification
19 1 Stainless Steel Pin Ø3x20
20 1 External Plastic Body
21 1 36.5000 1.1mm /3.0 Orifice (Not Installed)
22 2 36.0226 Replacement Stainless Steel Filters
41.0400 Repair Kit - Includes items marked by astrisks ***
Page 2 of 2
14.0263 Professional Foam Cannon
Part Number Min-Max PSI Min-Max GPM Max Temp. Inlet Ø Nozzle (mm)
14.0263 1,100-5,000 PSI 1.8-5.3 GPM
140
°
1/4” 1.25 mm
Replacement Parts
37.0253 Replacement 1 Liter Bottle
41.0400 O-Rings (2062,2087,2050,2031) & Stainless Steel Filter Repair Kit
21
22
1.25mm/3.5 orifice installed, 1.1mm/3.0 orifice Not Installed, and two replacement stainless steel filters
Replace 7 (shown above) with 21 to convert to low pressure/volume.
Search “MTM Hydro Orifices” on youtube.com for video instructions.
