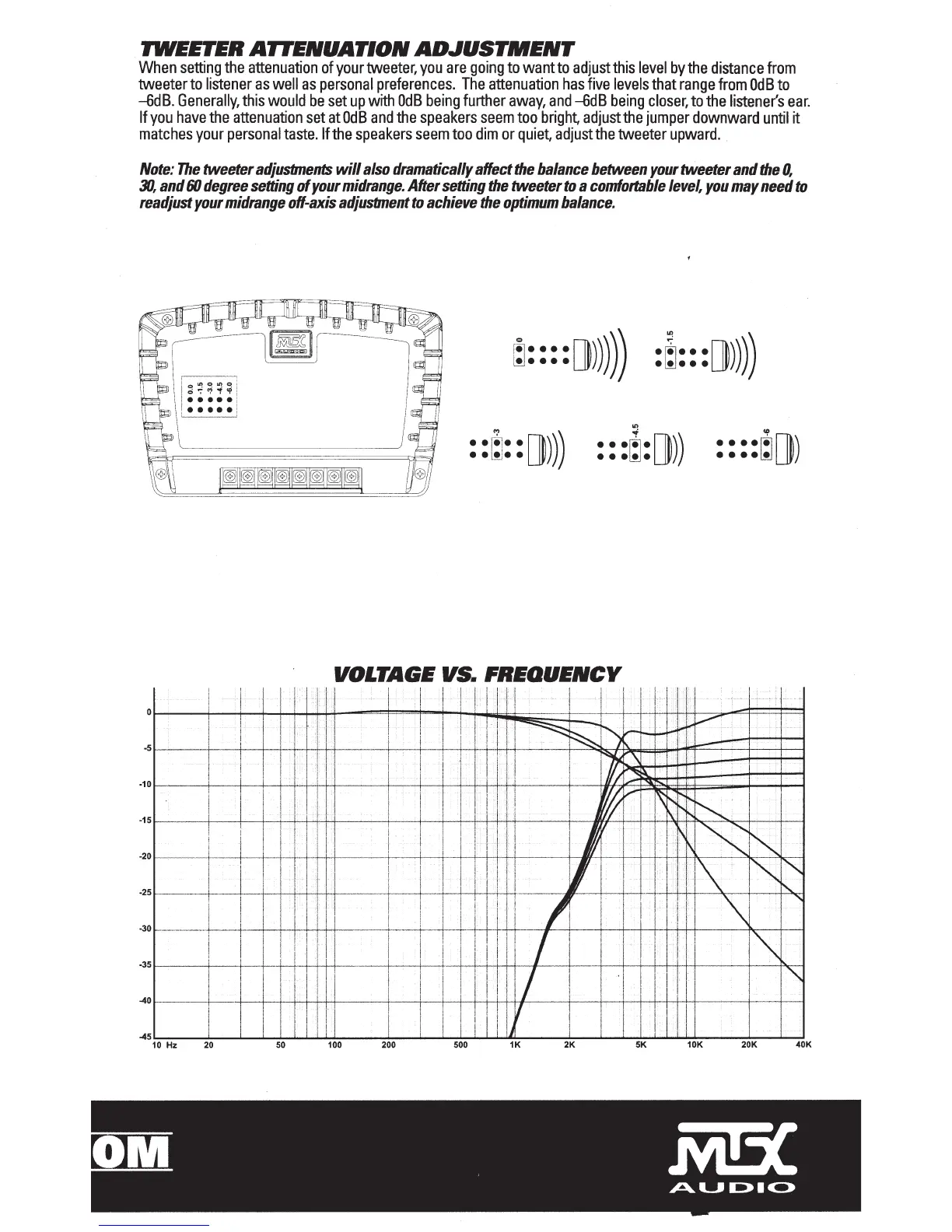

MTX TXC6.1 - TWEETER ATTENUATION ADJUSTMENT

TWEETER ATTENUATION ADJUSTMENT
When setting the attenuation ofyourtweeter, you are going to want to adjust this level by the distance from
tweeter to listener as well as personal preferences. The attenuation has five levels that range from OdB to
-6dB. Generally, this would be set up with OdB being further away, and -6dB being closer, to the listener's ear.
If you have the attenuation set at OdB and the speakers seem too bright, adjust the jumper downward until it
matches your personal taste. If the speakers seem too dim or quiet, adjust the tweeter upward.
Note: The tweeter adjustments will also dramatically affect the balance between your tweeter and the a
30, and 60 degree setting of your midrange. After setting the tweeter to a comfortable level, you may need to
readjust your midrange off-axis adjustment to achieve the optimum balance.
~====om))) d:::~))))
• ·~l· •ITh)))
• •l~J· • LW
•• ·rr~·ITh))
•• ·~· LJ.V
•••• ~ ITh)
• • ··~LW
VOLTAGE VS. FREQUENCY
-5
-10
-15
-20
-25
-30
-35
-40
-45
10
Hz 20
