5.2. Rear screen wiper
The electrical single-brush, single-lever
and single speed rear screen wiper has
the following characteristics:
• Brush length: 460 mm;
• Lever length: 420 mm;
• Cleaning angle: 110±7 degrees;
• Number of double strokes per minute:
45.
The switch of the rear screen wiper is
located on its decorative cover.

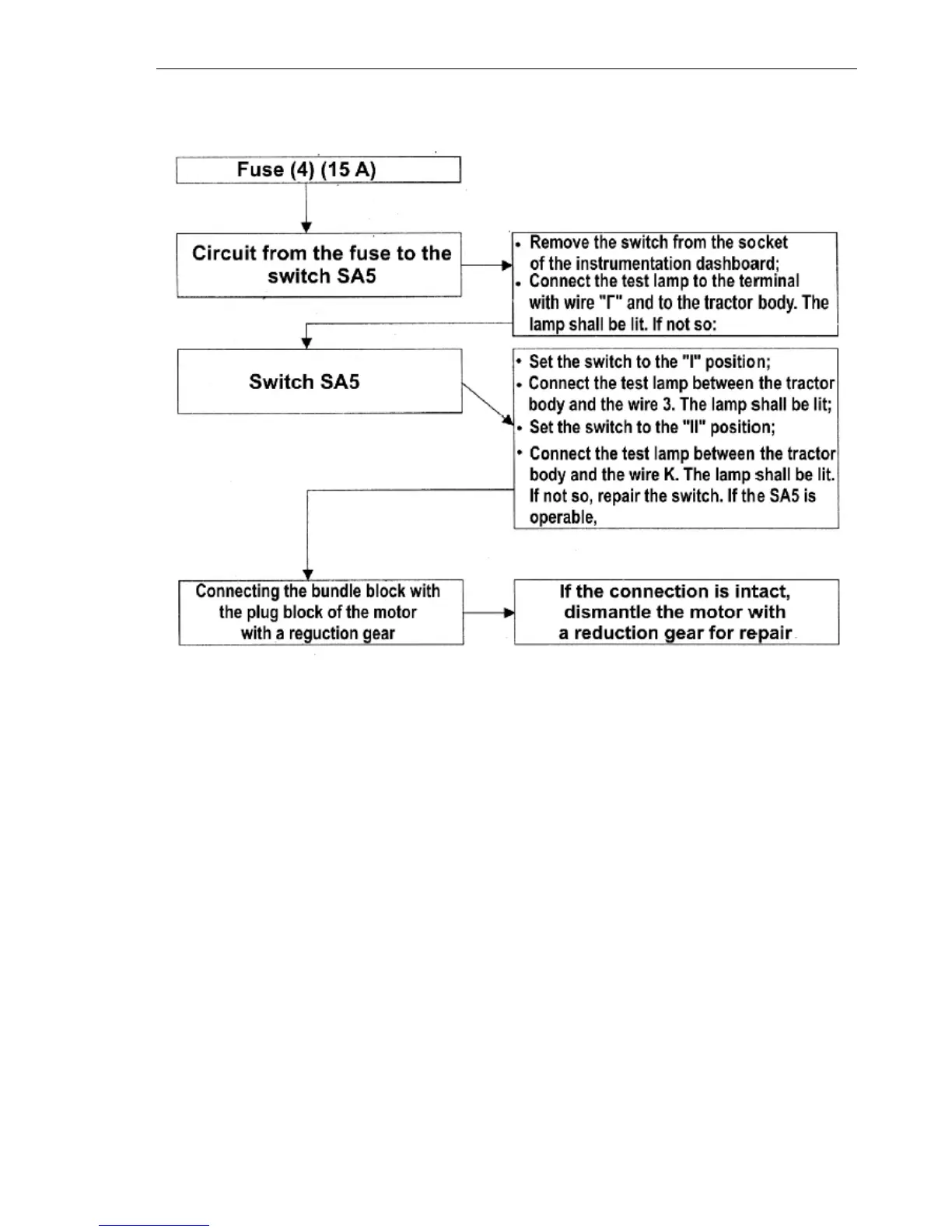

The power supply of the rear screen wiper
is provided from the circuit of the
windscreen wiper through a single-terminal
block located at the switch (SA5).
5.3. Windscreen washer
The electric windscreen flusher (М4) with
external position of the electric pump. The
direction of spraying the fluid from the
nozzle is adjusted by turning the ball in the
fluid supply sector.
The fluid pressure in the system shall be
at least 60 kPa.
The duration of the continuous operation
shall be not more than 10 seconds.
The windscreen washer is switched on by
the switch (SA9). The windscreen washer
circuit is protected by the fuse (4) (15 А).
