Electric equipment connector
components
A standard 8-pin socket is designed for
connecting the current-consuming units
of a transport machine or trailed agricul-
tural implement. It is installed on the
cab’s rear support. A plug of the wire
bundle of the hitched machines is con-
nected to the socket.
Socket connection terminal marking:
1 – Turn indicator, left;
2 – Horn;
3 – “Ground”;
4 – Turn indicator, right;
5 – Right clearance light;
6 – Stop light;
7 – Left clearance light;
8 – Hand lamp connection.

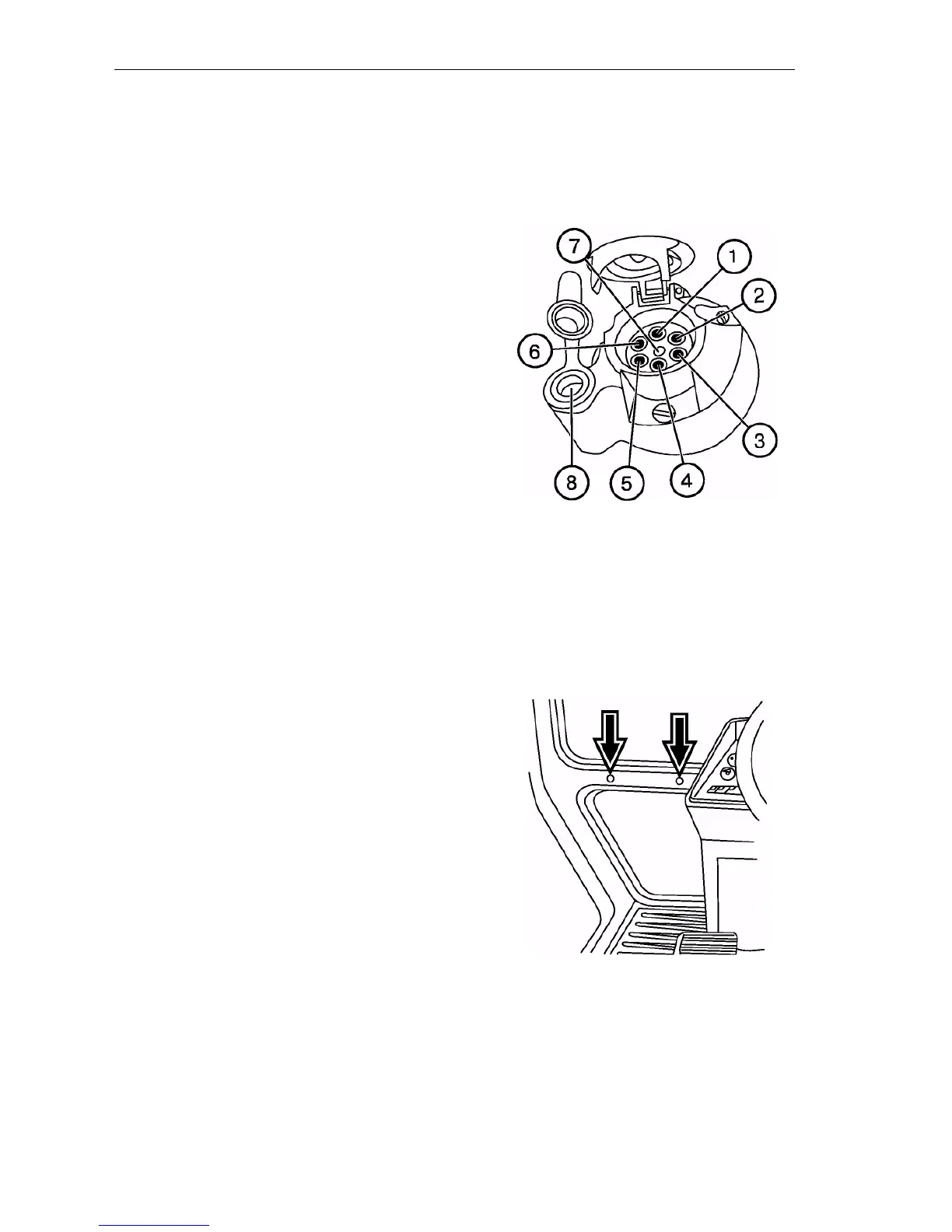

Installing the monitor on the tractor
An electronic monitor can be installed on
the cab front wall. There are two open-
ings on the front wall between the front
and the lower glasses to the left and right
from the dashboard.
