Remote control of the hydraulic sys-
tem distributor (if installed)
If the tractors are equipped with the RS-
213 MTZ hydraulic distributors, the re-
mote control of the distributor spool

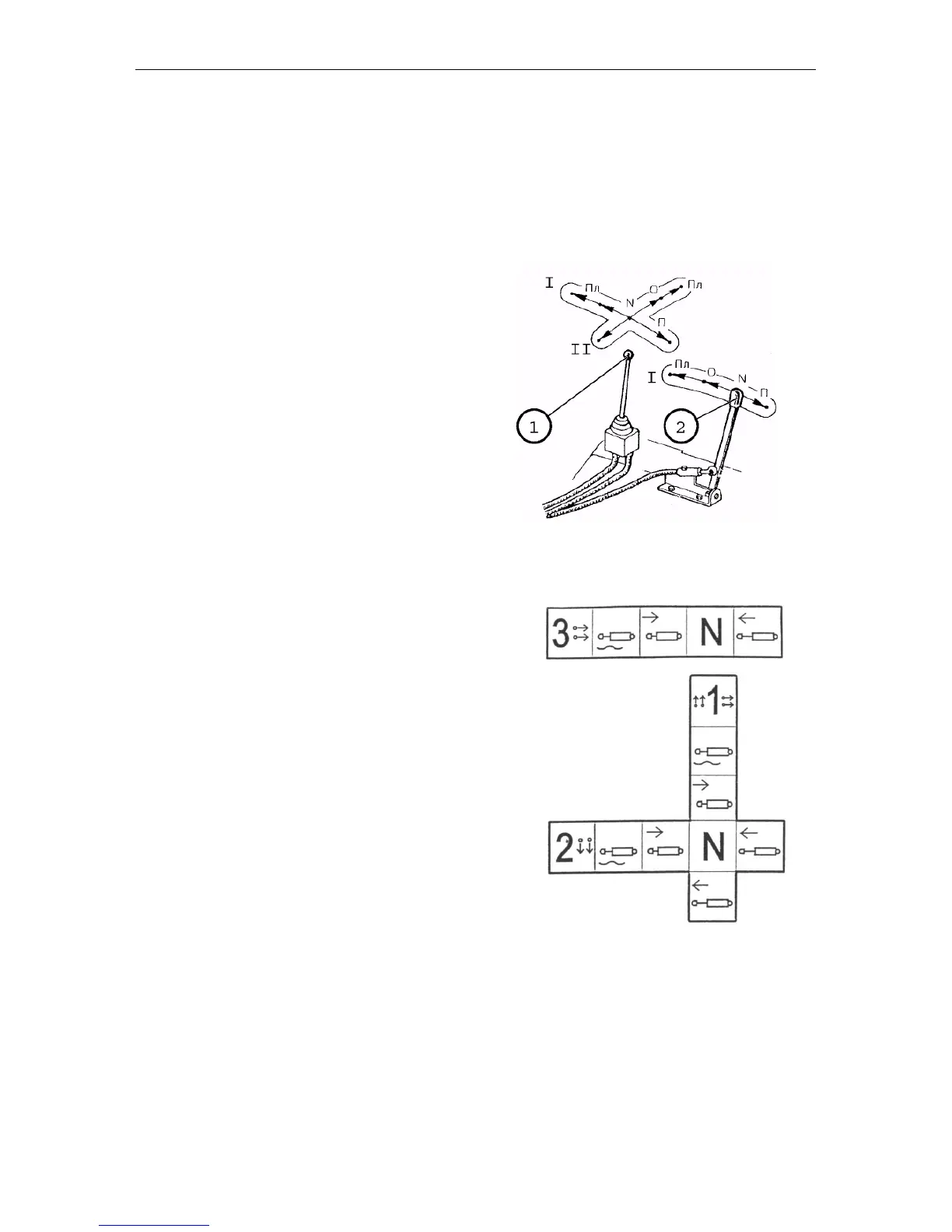

valves is executed by the manipulator
(joystick) (1) and arm (2) with the two-
way cords. The manipulator and the arm
are mounted on the right control board
in the tractor cab.
The manipulator (1) makes it possible to
control two distributor spool valves (sec-
tions) at the same time:
When shifting the manipulator lever
lengthwise, the spool valve connected to
the left side outlets of the hydraulic sys-
tem is controlled.
When shifting the manipulator lever
crosswise, the spool valve connected to
the right side outlets and rear outlets
(optional) is controlled.
The arm (2) can be only shifted length-
wise and controls the central spool valve
connected to the rear left outlets of the
hydraulic system.
