Rear mounted attachment (HMS
with power governor)
The second-category three-point mount-
ed attachment ensures the connection of
mounted and semi-mounted agricultural
machines and implements to the tractor
with the following attachment compo-
nents:

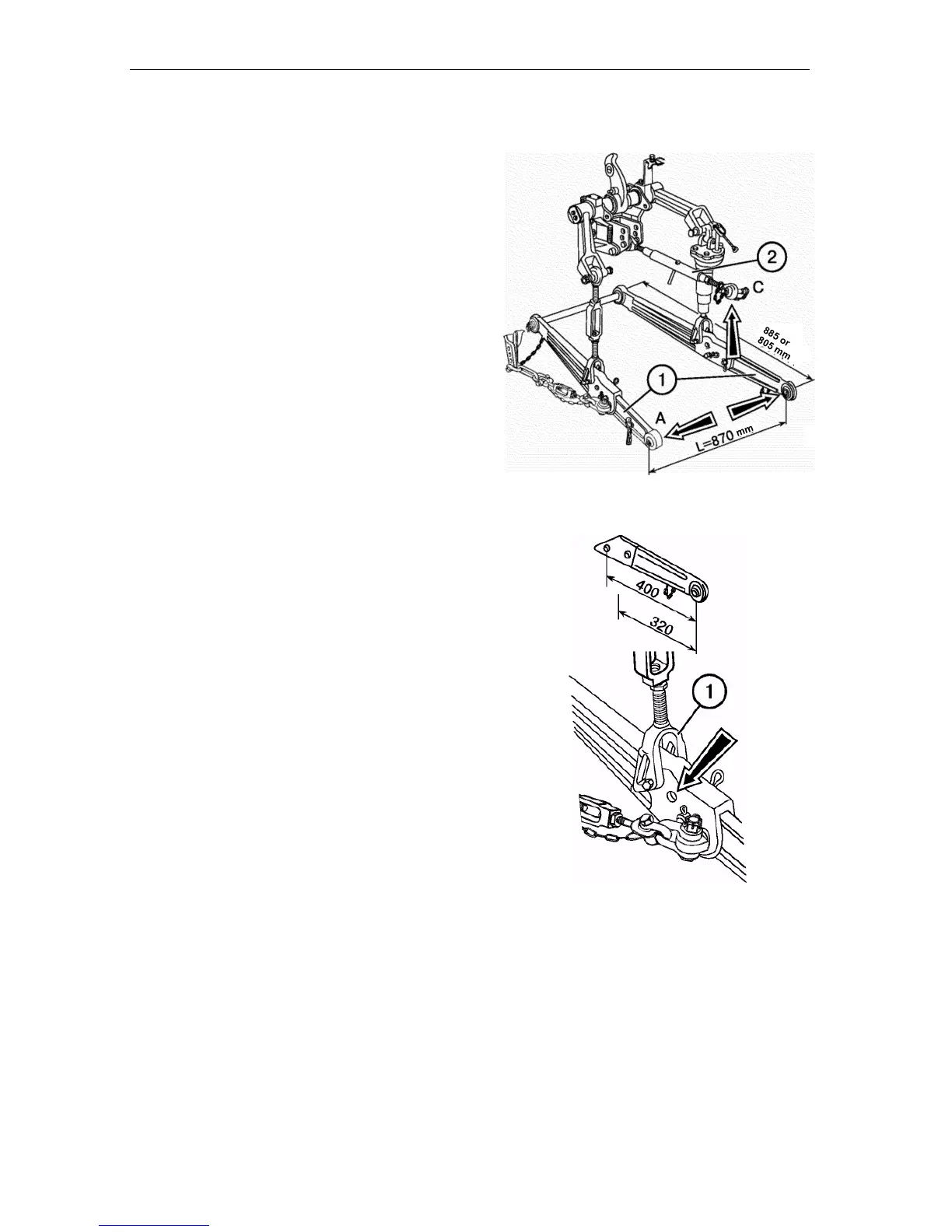

• hanger axle length “L” (distance be-
tween joints “A” and “B”) is equal to
870 mm;
• machine support height is 460 mm;
510 mm;
• pin diameter to connect to lower rod
joints (1) is 28.7 mm;
• pin diameter to connect to upper rod
(2) is 25 mm.
The lower rods consist of two parts:
• front part or rod itself;
• rear end with the ball joints. Standard
length of the low rod: 885 mm.
To increase the hanger length, install the
rod ends with deflected front joints (Ф70-
4605050-01/055-01).
To increase the load-carrying capacity of
the mounted unit, replace the rear rod
ends (400 mm long) by the rod ends
having the distance of 320 mm between
the joint axis and the front aperture (Н50-
4605040А2/045А2). Total lower rod
length will become 805 mm.
ATTENTION! When the rod length is
805 mm, the carrying capacity of the
mounted unit will be increased by 10%
with decreasing the lifting height by 10%.
The same load-carrying capacity can be
ensured by installing the angle brace (1)
at the additional points (the lifting height
will be also decreased by 10%).
