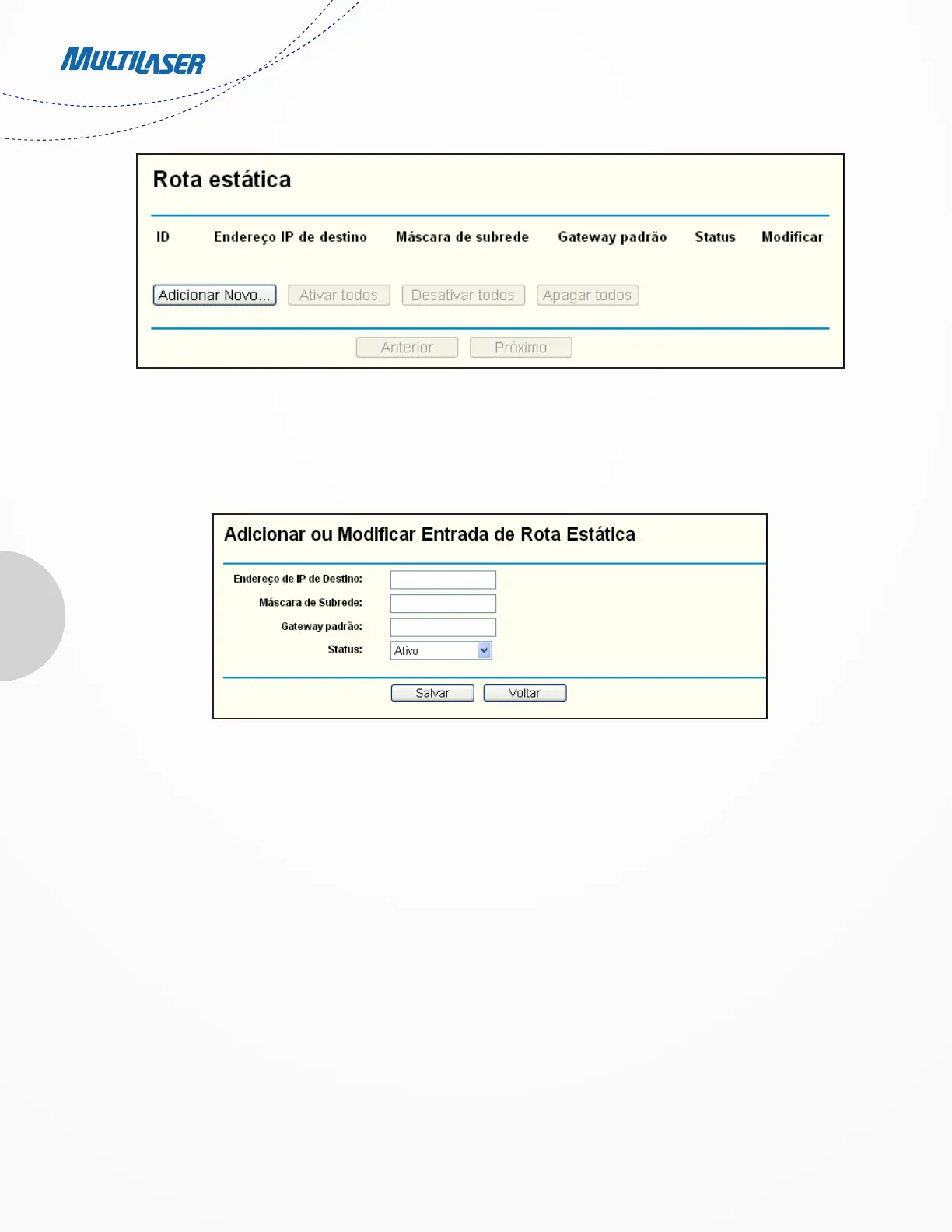

Figure 4-57 Static Routing
To add static routing entries, follow the steps below.
1. Click Add New… shown in Figure 4-57, you will see the following screen Figure 4-58.
2. Enter the following data.
• Destination IP Address - The Destination IP Address is the address of the network or host that you want to assign to a
static route.
• Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network portion, and which portion is
the host portion.
• Gateway - This is the IP Address of the gateway device that allows for contact between the Router and the network or host.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click the Save button to make the entry take effect.
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Figure 4-58 Add or Modify a Static Route Entry
