Profi - Mixers
1 – Mixer overview

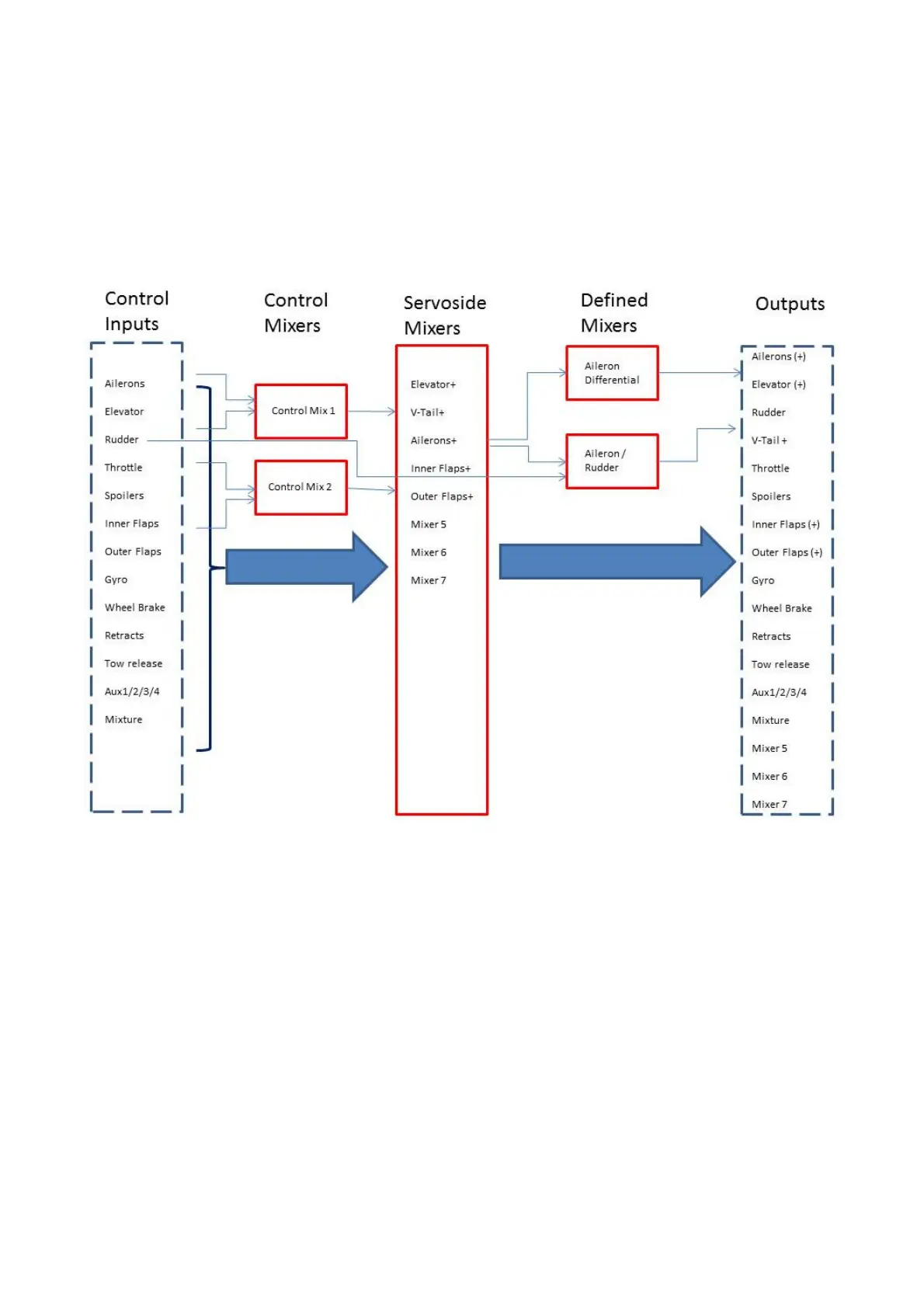

The above schematic simplified representation of the Profi mixer structure, key points to note are
- There are two control mixers which can have two inputs, or a control can be mixed with itself,
the mix percentage can be flight phase specific. These are like the traditional P mixes on other
radios
- The Servo-side mixers are the key to the Profi and replace the normal named mixers on other
radios. These are created by the user, either from scratch or using the provided templates. The
mixer outputs are then assigned to output channels, just like a non-mixed control. The Profi
can use upto 5 mixers per model memory and each mixer can have upto 8 inputs, all
switchable, each input can use either predefined curve or a user created curve. Each mixer can
be used multiple times, i.e. only one mixer required for dual ailerons.
- There are two defined mixers for aileron differential and aileron/rudder, the mix percentages
can be flight phase specific
