MultiWii 32U4 SE - Connecting a Receiver (RX); Normal RX Connection; PPM Sum RX Connection; Spektrum Satellite Connection

3.ConnectaRX

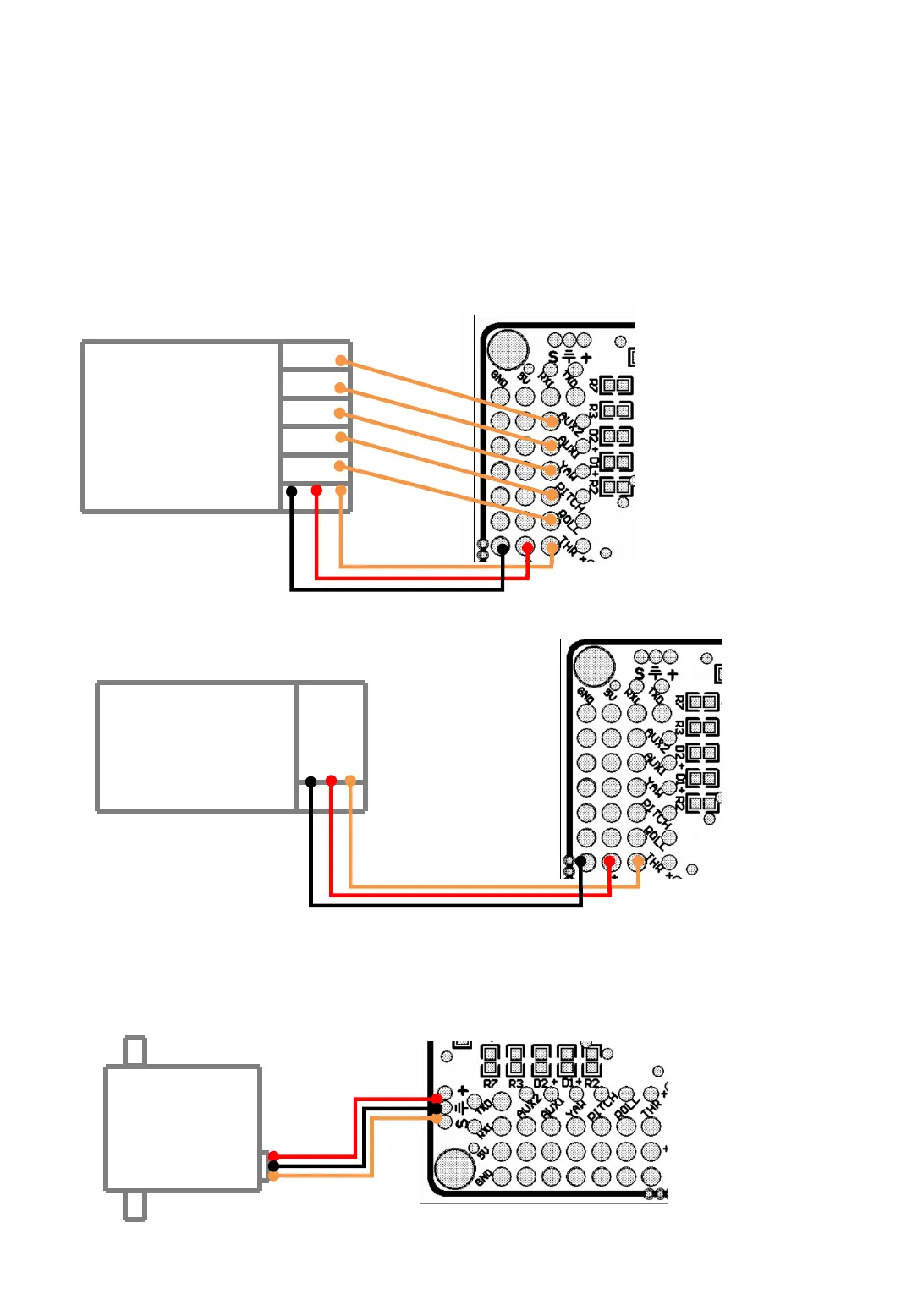

NormalRX
YoucanuseastandardRXwith4channels.Becauseofthesensorsusedandthe
Variousflightmodesavailable,a6channelRXisrecommended.
Youonlyneedtoconnectallthreewiresforthethrottlechannel(signalandpower
(+/‐)).Forallotherchannelsonlythesignalwiresareneeded.Thiswillsimplifyyour
wiringandalsosavesomeweight.
PPMsumRX
WithaPPMsumRXyoucanuseupto8channels(atthetimeofwriting)withonly
onesinglepatchwire.
Spektrum Satellite
ASpektrum satellite receiveroutputsallchannelsofthetransmitterover aserial
interface(UART).WiththeuseofaSpektrum satellit e youcanuseupto8channels
(aswithaPPMSumreceiver).Inaddition,itisquitesmalland lightweight.
AUX2
AUX1
RUDD
PITCH
ROLL
NormalRX
THR
PPMRX
PPM
‐ + s
Spektrum
Satellite
3.3V
GND
RX
