Munro Complete PRO ll ASSEMBLY GUIDE
9. On the bottom of the enclosure, remove the 4 nuts and bolts
holding the control box brace in place.
10. Remove the 6 bolts that hold the electrical pass-through panel
in place, 4 are shared with the control box brace.
11. With the control box still attached, remove the outside braces.
Slide the electrical pass-through up and out of the enclosure.

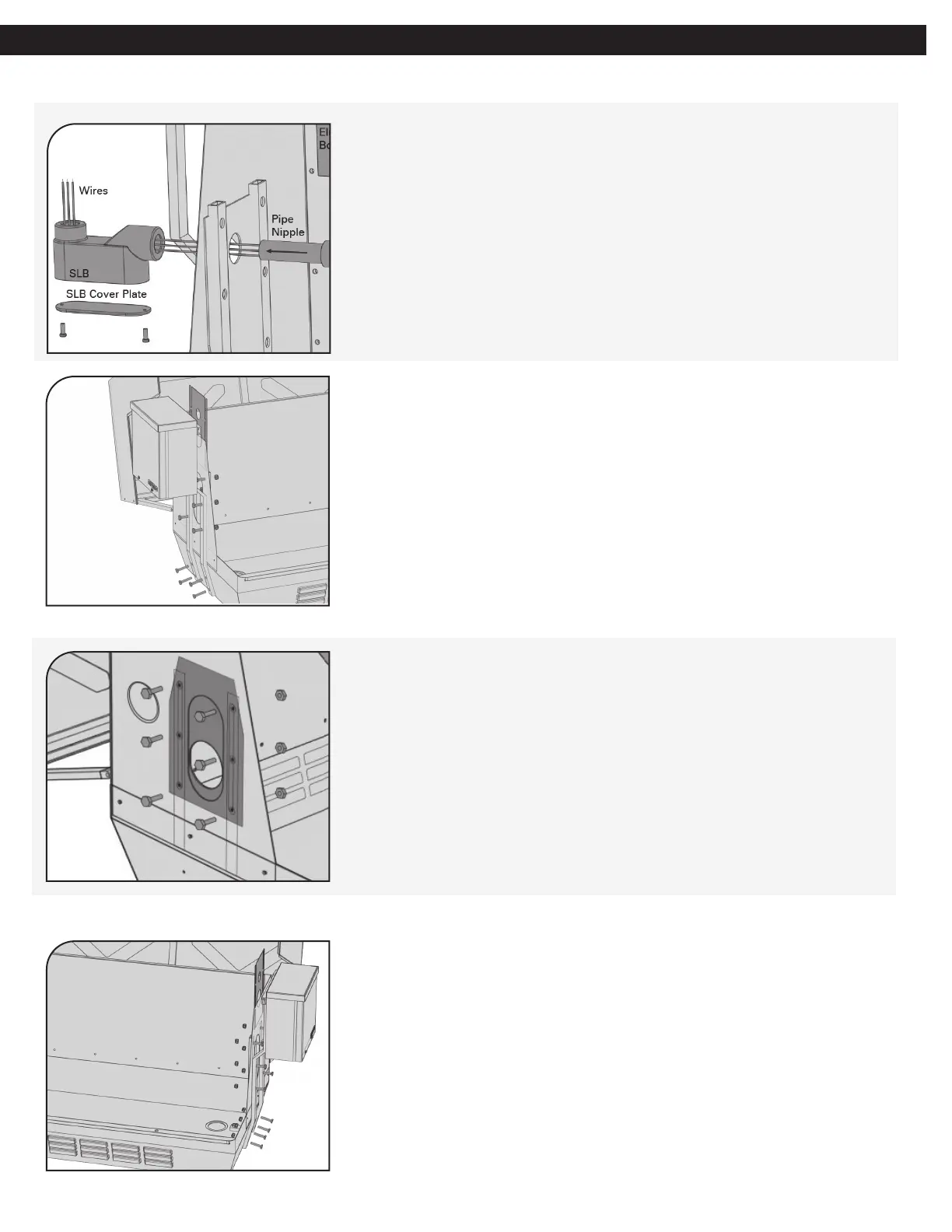

5. Using a screwdriver, remove the cover plate from the SLB.
6. Out of the bottom, pull the wires from the pump control box
through the chase nipple and SLB.
7. On the outside of the pump enclosure, unscrew the SLB from
the pipe nipple on the electrical outlet assembly. Pliers may be
needed.
8. Feed the outlet assembly, wires and pipe nipple through the
round hole on the electrical pass-through panel, to the inside
of the enclosure.
Step 2 – Remove the electrical assembly (Continued)
Step 3 – Replacing the suction pass-through panel
Step 4 – Reconnecting the electrical assembly on the opposite side
1. Slide the suction pass-through panel into place on the
opposite side of the enclosure, ensuring that the suction hole
is aligned to the pump suction height. Replace the nuts and
bolts to secure the suction pass-through panel.
1. Holding the pump control box brace, with pump control
attached, place on the outside of the enclosure and secure the
nuts and bolts into place.
