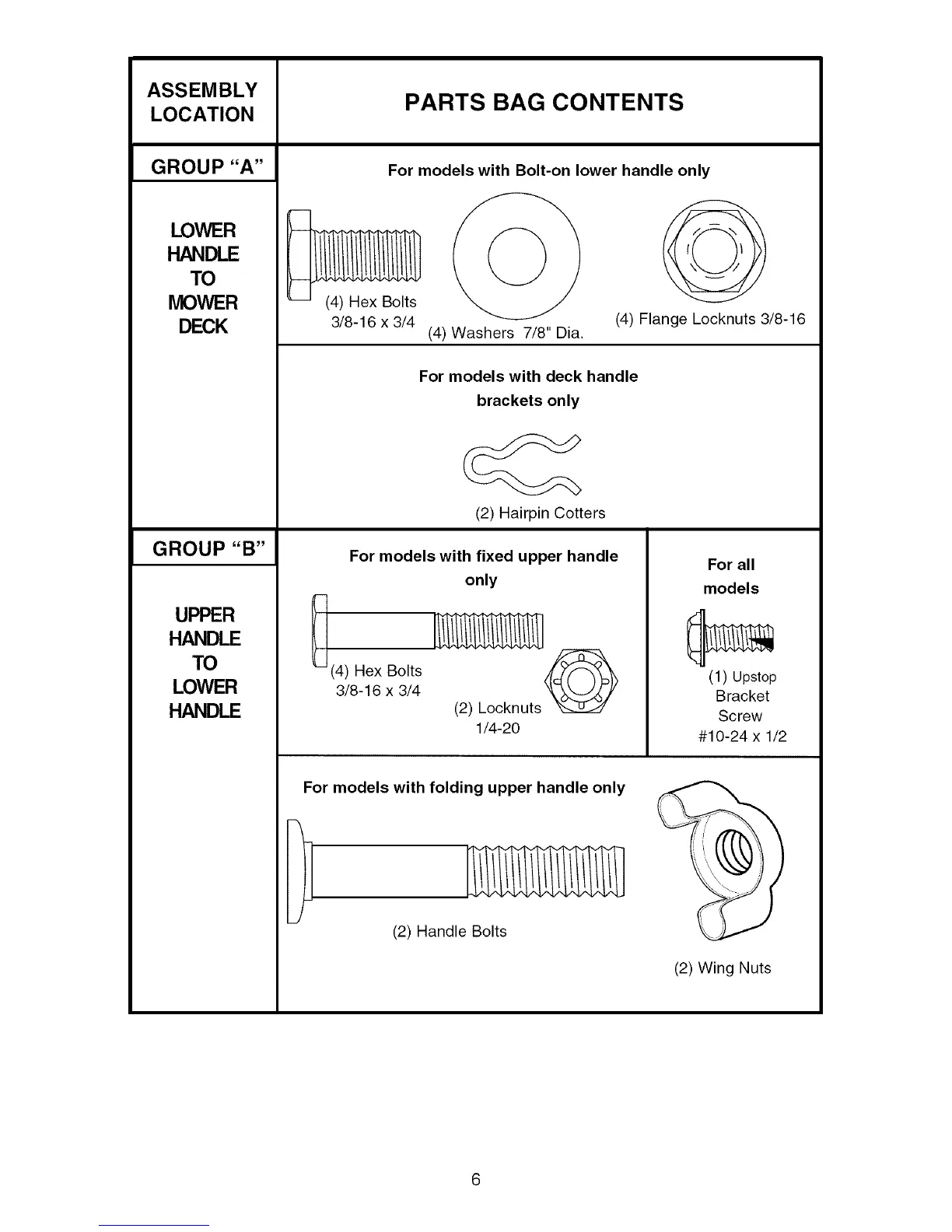

ASSEMBLY
LOCATION
PARTS BAG CONTENTS
For models with Bolt-on lower handle only
F-
GROUP"A"
LOWER
HANDLE
TO
MOWER
DECK
GROUP"B"
UPPER
HANDLE
TO
LOWER
HANDLE
(4) Hex Bolts
3/8-16 x 3/4
b--
(4) Washers 7/8" Dia.
I
(4) Flange Locknuts 3/8-16
For models with deck handle
brackets only
(2) Hairpin Cotters
For models with fixed upper handle
only
I
(4) Hex Bolts
3/8-16 x 3/4
(2) Locknuts (@
1/4-20
For all
models
(1) Upstop
Bracket
Screw
#10-24 x 1/2
For models with folding upper handle only
(2) Handle Bolts
(2) Wing Nuts
