ASSEMBLY
LOCATION
GROUP"E"
REMOTE
THROTTLE
CONTROL
(If equipped)
TO ENGINE
GROUP "F"
CONTROL
CABLE(S)
TO
UPPER
HANDLE
GROUP "G"

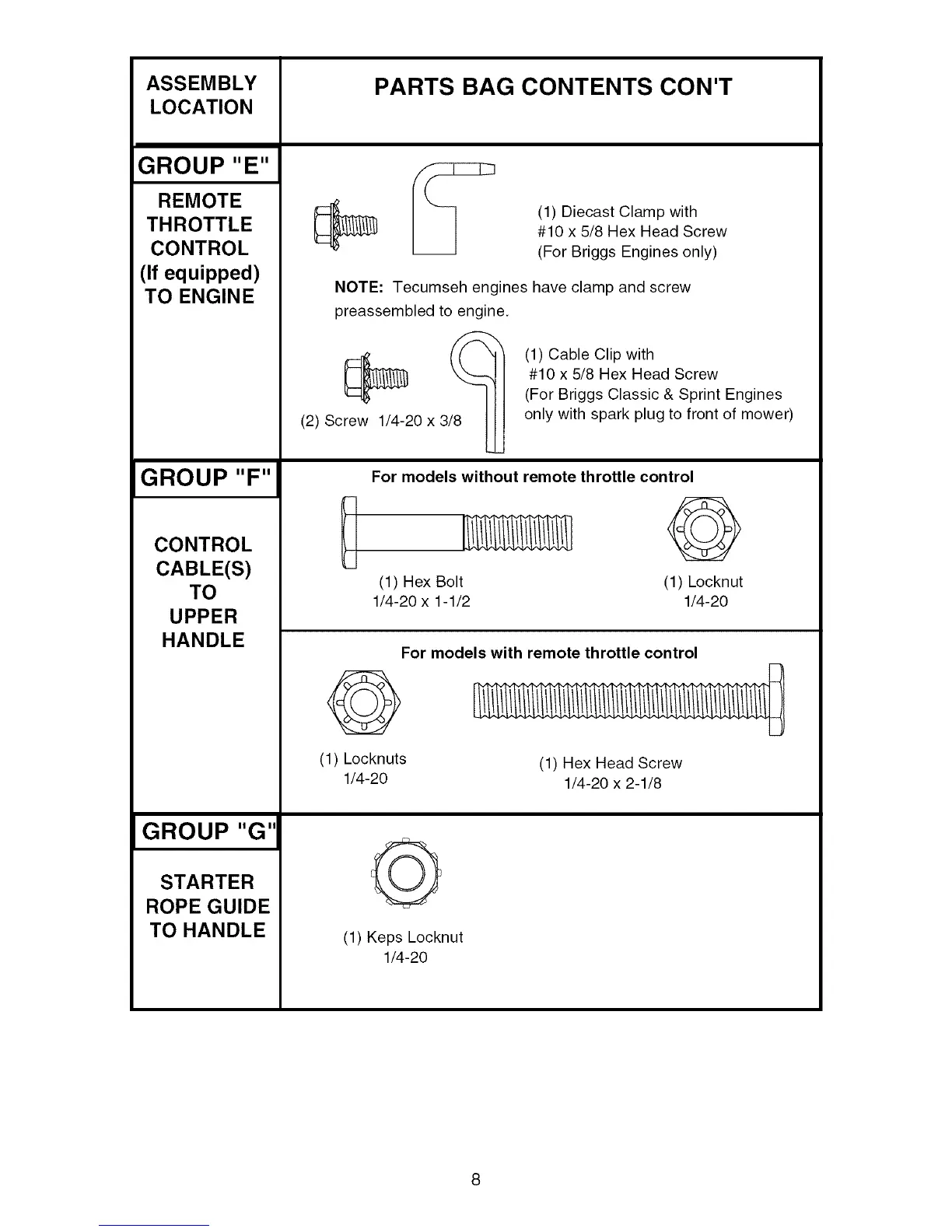

PARTS BAG CONTENTS CON'T
(1) Diecast Clamp with
#10 x 5/8 Hex Head Screw
(For Briggs Engines only)
NOTE: Tecumseh engines have clamp and screw
STARTER
ROPE GUIDE
TO HANDLE
preassembled to engine.
(2) Screw 1/4-20 x 3/8 _/
For models without remote throttle control
(1) Cable Clip with
#10 x 5/8 Hex Head Screw
(For Briggs Classic & Sprint Engines
only with spark plug to front of mower)
For models with remote throttle control
@
(1) Locknuts
1/4-20
(1) Hex Head Screw
1/4-20 x 2-1/8
G
(1) Keps Locknut
1/4-20
(1) Hex Bolt
1/4-20 x 1-1/2
(1) Locknut
1/4-20
To Next Page
