PREPARATION
14
F-040411L
MODELS WITH OPTIONAL GRASS BAG
HOW TO MOUNT
THE GRASS BAG
1. To mount the grass bag on the mower,
raise the rear door. Hold the handle of the
grass bag. Put the grass bag in the
operating position (Figure 10). Lower the
rear door.
IMPORTANT: Make sure the hooks, on each
side of the frame assembly, are mounted
on the pivot rod.
WARNING: Do not use the grass
bag unless the cover is in the op-
erating postion.

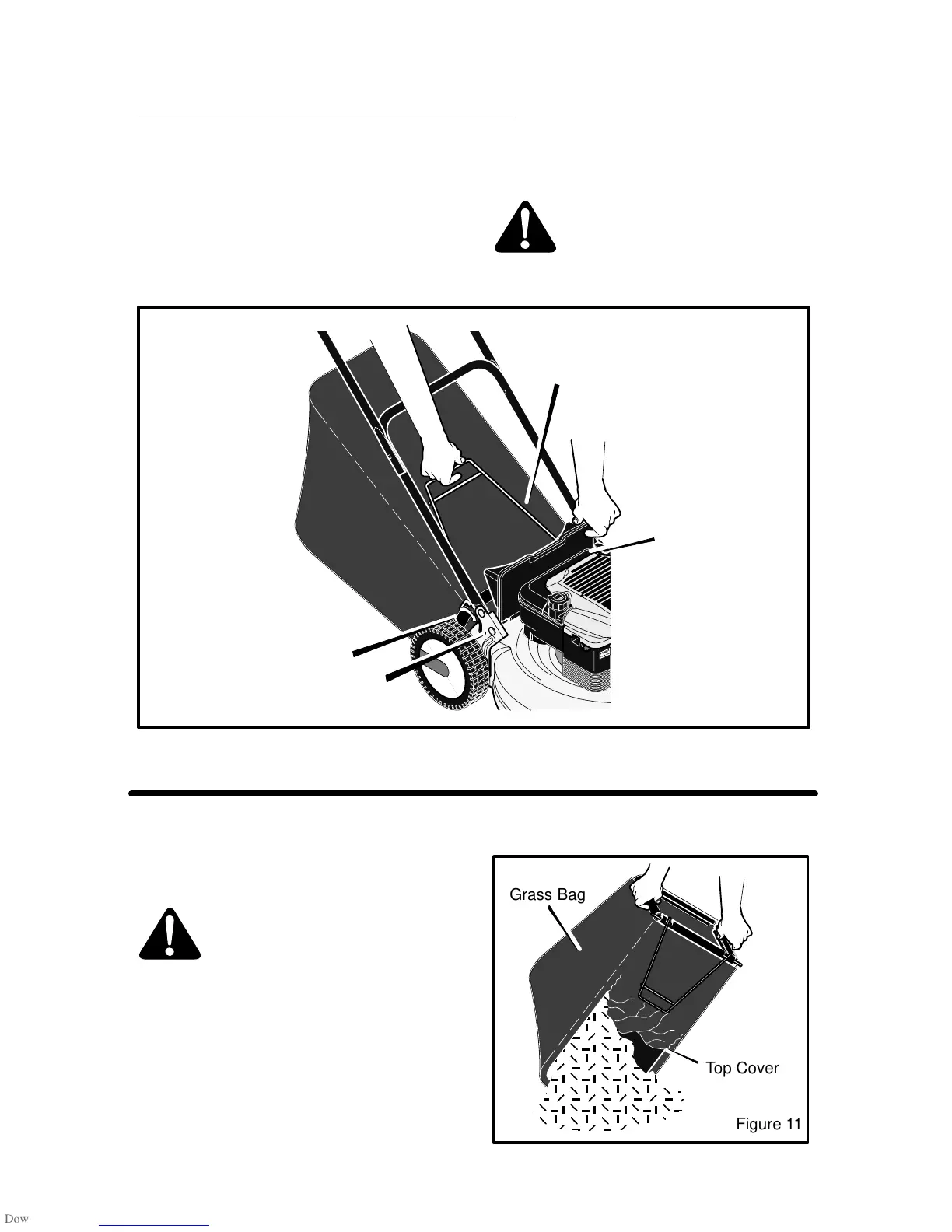

Figure 10
Mount Frame
Hooks To Pivot Rod
Handle Bracket
Handle
Rear Door
HOW TO EMPTY THE GRASS BAG
WARNING: Before you remove
the grass bag, stop the engine.
Before you remove any grass
from the mower housing,
disconnect the wire from the
spark plug.
1. Hold the rear door. Raise the rear door to
a vertical position (Figure 10).
2. Lift the frame assembly over the two
handle notches.
3. Open the top cover (Figure 11). Empty the
grass from the grass bag.
4. To mount the grass bag on the mower, see
“How To Mount The Grass Bag”.
ÎÎÎÎÎÎ
ÎÎÎÎÎÎ
ÎÎÎÎÎÎ
ÎÎÎÎÎÎ
ÎÎÎÎÎÎ
Figure 11
Top Cover
Grass Bag
