PREPARATION

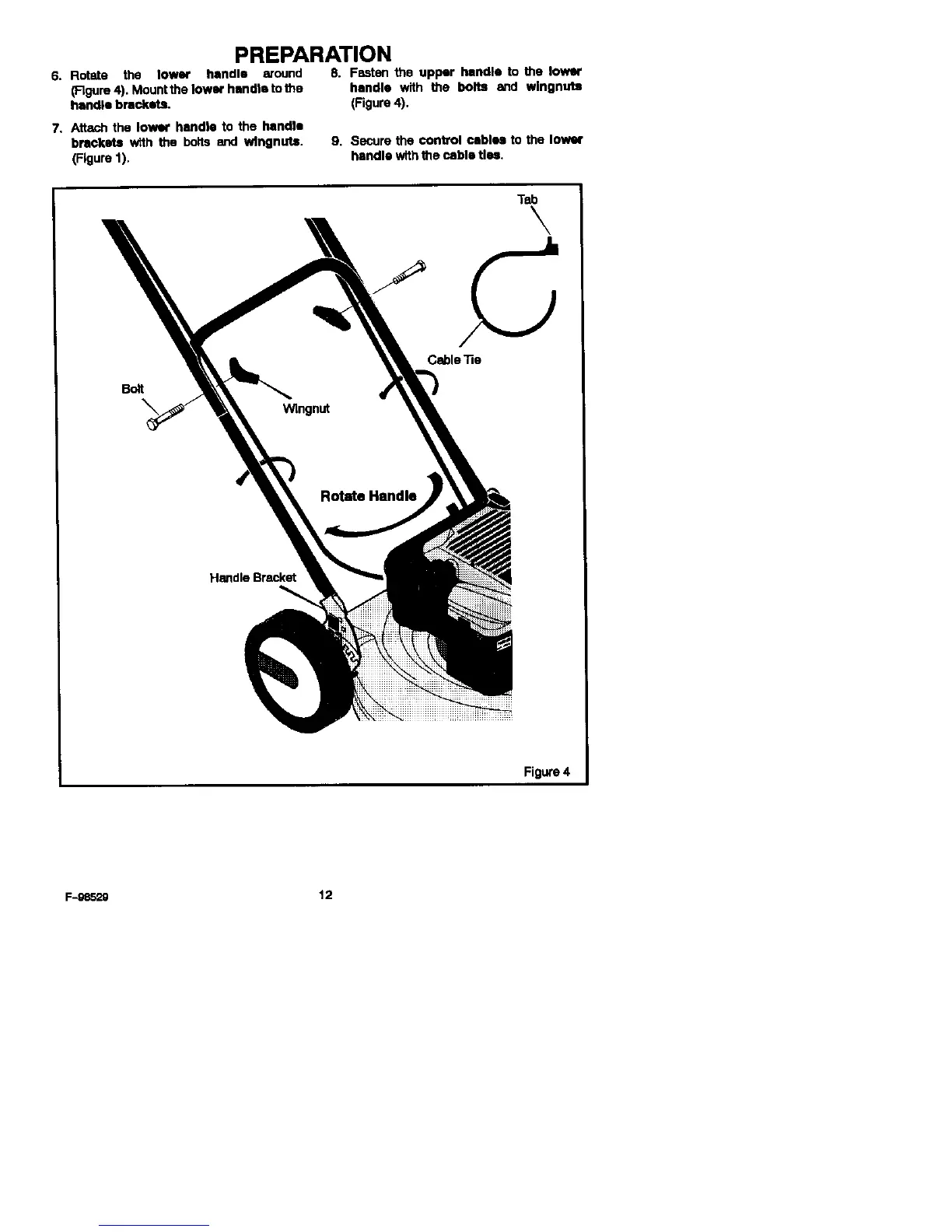

6. Rotate the lower handle around 8. Fasten the upper handle to the lower
(FIgum4).Mountthelowarhandlatothe handle with the bolts end wlngnuts
handle brackets. (Figure 4).
7. Attenh the Iowor handle to the handle
brackets w;th the bolls and wlngnuts. 9. Securethe control cables to the lower
(Figure1). handle withthe cable ties.
Bolt
Handle Bracket
Figure 4
F-S8529 12
