Murray 461004x92B - Page 47

REPAIR PARTSMODEL 461004x92B
47
F-05071 1L

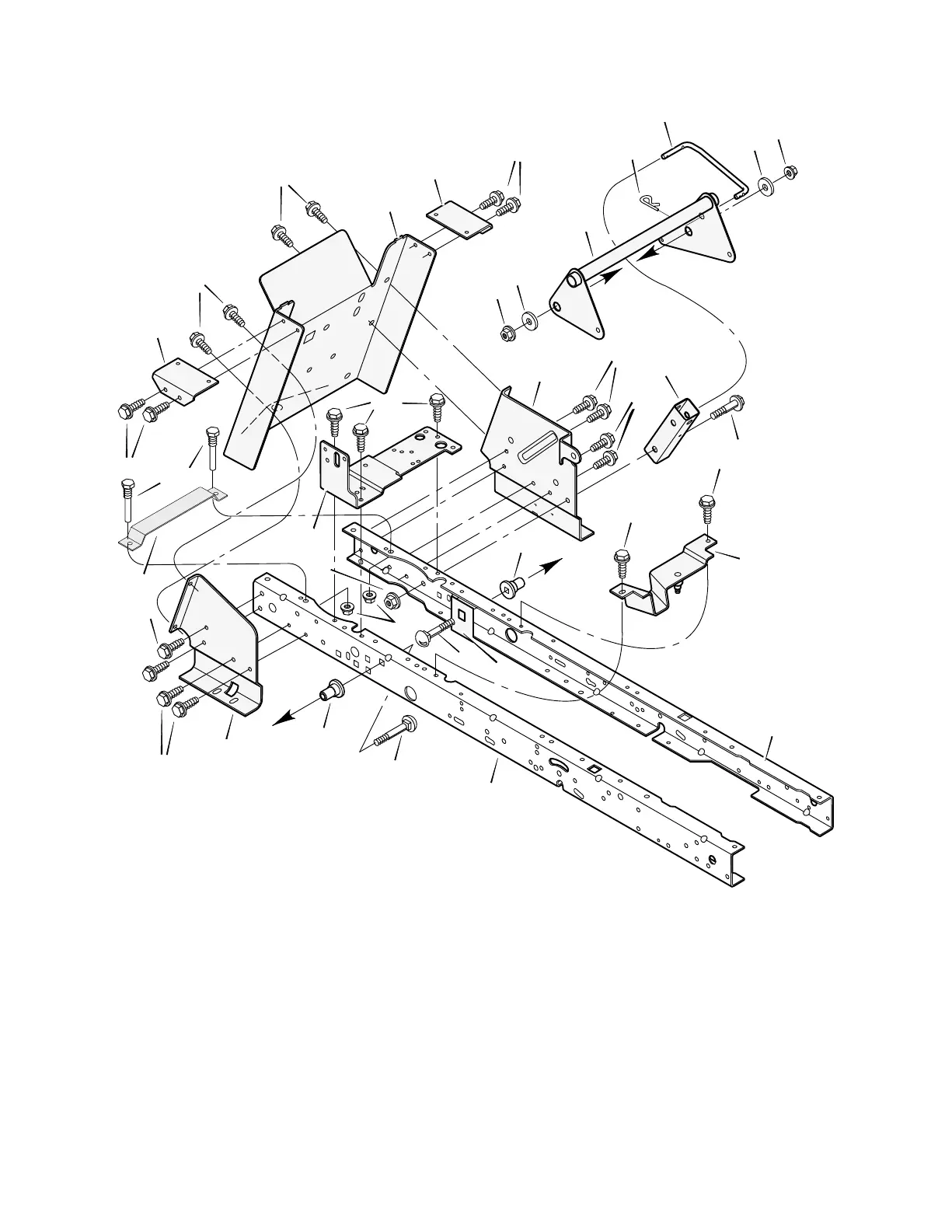

REAR FRAME ASSEMBLY
1
2
3
3
3
2
3
3
4
5
6
7
8
4
5
9
3
3
10
11
3
3
13
14
15
4
16
17
18
3
3
19
13
14
20
21
22
23
Key
No. Part No. Description
Key
No. Part No. Description
1 690094E701 Frame, Rear Hitch
2 690077E700 Bracket, Seat Deck
3 26x249 Screw
4 015x84 Nut, Flange
5 17x168 Washer
6 690122E700 Link, Lift Handle
7 0031x4 Pin, Hair
8 1001111E701 Assembly, Lifter
9 1001917E700 Bracket, Left Transaxle
10 094015E700 Bracket, Lift Pivot
11 009x53 Bolt, Shoulder
13 690151 Spacer, Lifter
14 002x85 Bolt, Carriage
15 015x79 Nut, Flange
16 1001978E701 Bracket, Right Shift
17 094384 Screw, Guide
18 690482E701 Support, Battery
19 690064E700 Bracket, Right Transaxle
20 1001928E701 Frame, Right
21 1001927E701 Frame, Left
22 690365 Z Bracket, Idler
23 1001098E701 Plate, Stiffening
