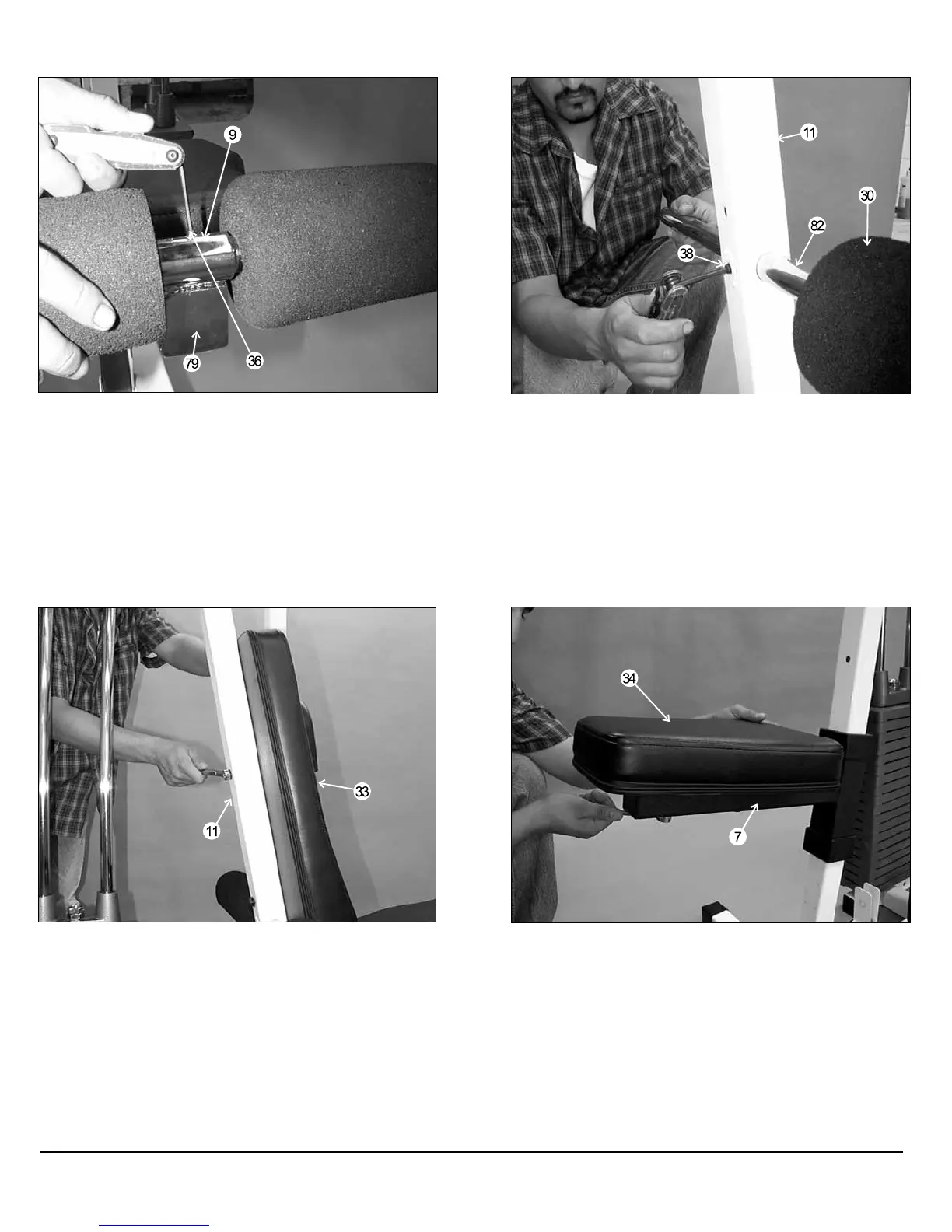

FIG. 25 On the Bench Press Adj Seat Tube (#9) there is a
threaded socket. Secure the Foot Roll Tube 1 X 16 (#21) using
one Set Screw 1/4-20 X 1/4 (#36). Use the supplied Hex-Key
1/8 (#19) tool for securing this Set Screw 1/4-20 X 1/4 (#36).
Next, insert a Plastic Insert Cap 2” Sq. (#79), as shown.
FIG. 26 Now, insert a Foot Roll Tube 1 X 25 (#82) through
the Front Upright (#11), as shown above. Secure the Foot
Roll Tube 1 X 25 (#82) using a Set Screw 3/8-16 X 1/2 (#38).
Use the Hex-Key 3/16 (#80) tool for securing the Set Screw
3/8-16 X 1/2 (#38). Next, insert two Foam Foot Rolls 7 X 4 X 1
(#30) and two Plastic Insert Caps 1” Rd. (#75) into the the Foot
Roll Tube 1 X 25 (#82).
FIG. 27 Attach the Back Pad (#33) for the Bench Press to
the Front Upright (#11) and secure using two Hex Head Cap
Screws 3/8-16 x 2 3/4 (#55) and two Flat Washers SAE 3/8
(#73).
FIG. 28 Attach the Seat Pad (#34) to the Pec Dec Adj Seat
Tube (#7) and secure it using two Hex Head Cap Screws 3/8-
16 X 2 3/4 (#55) and two Flat Washers SAE 3/8 (#73).
Owners’ Manual: Assembly Instructions
CMB-2 Muscle Beach Home Gym
8
