5 Troubleshooting VJ-1624 QUICK REFERENCE
5-18
• After the confirmation pattern is printed, "Adj.1: Confirm Ptn." is displayed on the operation
panel.

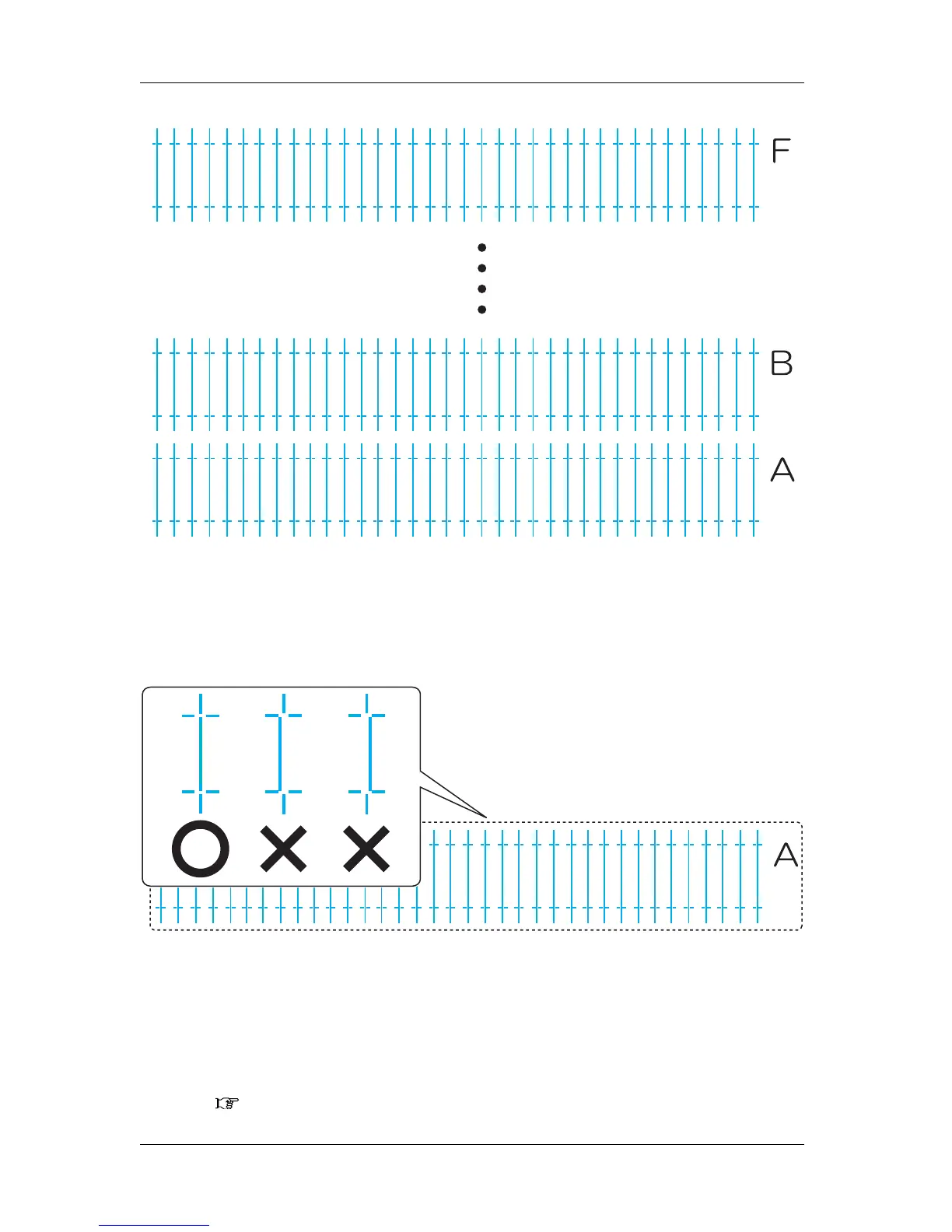

4. Confirm that the confirmation pattern printing result is as follows.
• Check each of the confirmation patterns A to F.
a. When the printing result is OK;
You do not need perform Adjust Print.
The procedure for Adjustment is complete.
b. When the printing result is ×:
you need to perform Alignment.
• Perform rough adjustment when the misalignment is big.
5.1.4.2 Custom Rough Adjustment Pattern
