4 Handling the printer VJ-1624/1624W OPERATION MANUAL
4-36
9. Press the release buttons on both sides of Spectrophotometer, and install it to the connector of Print
head.
NOTE
• Make sure that Spectrophotometer is NOT installed at an angle, and that there in no gap
between the connector and Spectrophotometer.
10. Press the [Enter] key.
• "Wait for a while..." is displayed on Operation panel.
• The printer checks the connection between the printer and Spectrophotometer.
• "Set white plate, then close left maintenance cover." is displayed on Operation panel.

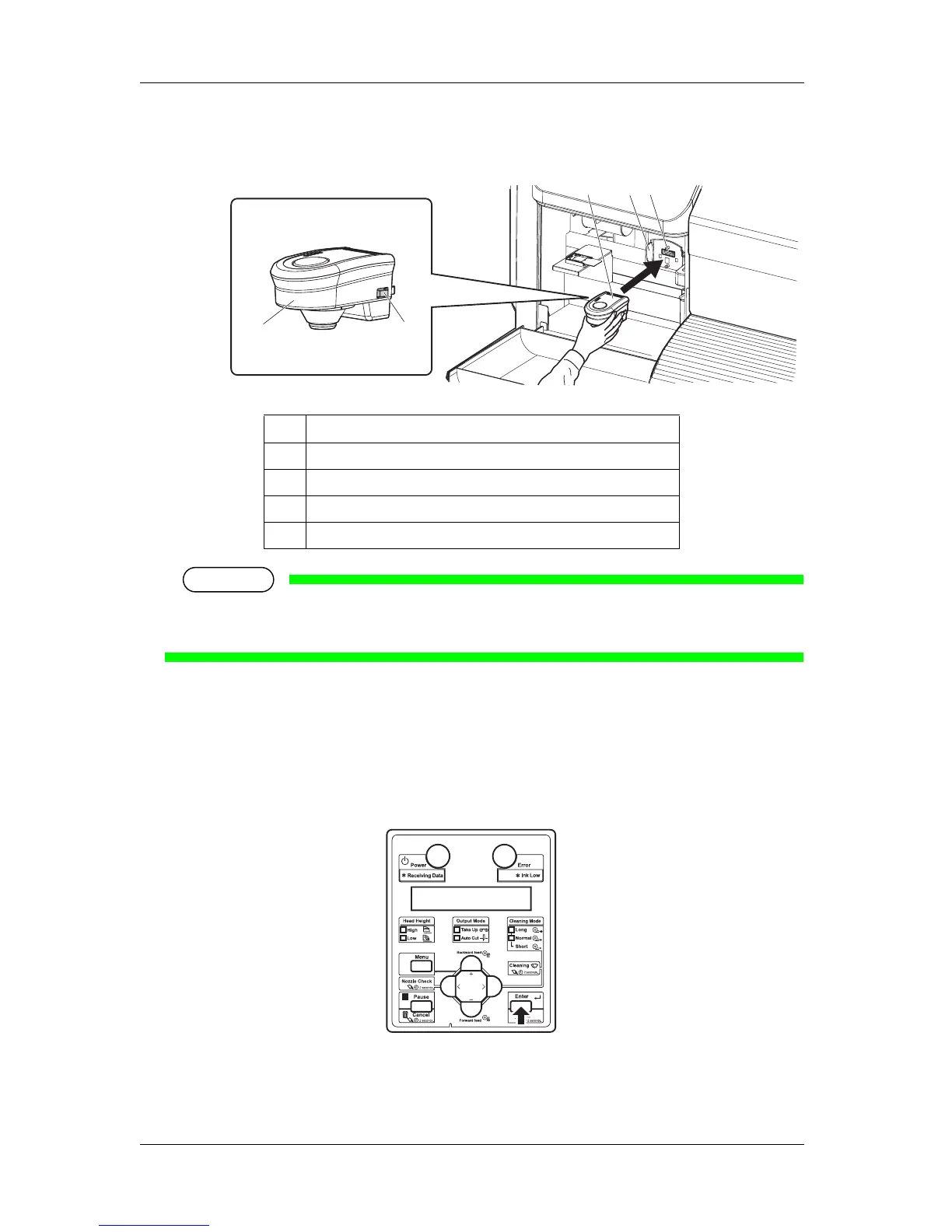

No. Name
1 Spectrophotometer
2 Release buttons
3 Print head section
4 Connector
4
1
1
2
3
To Next Page
